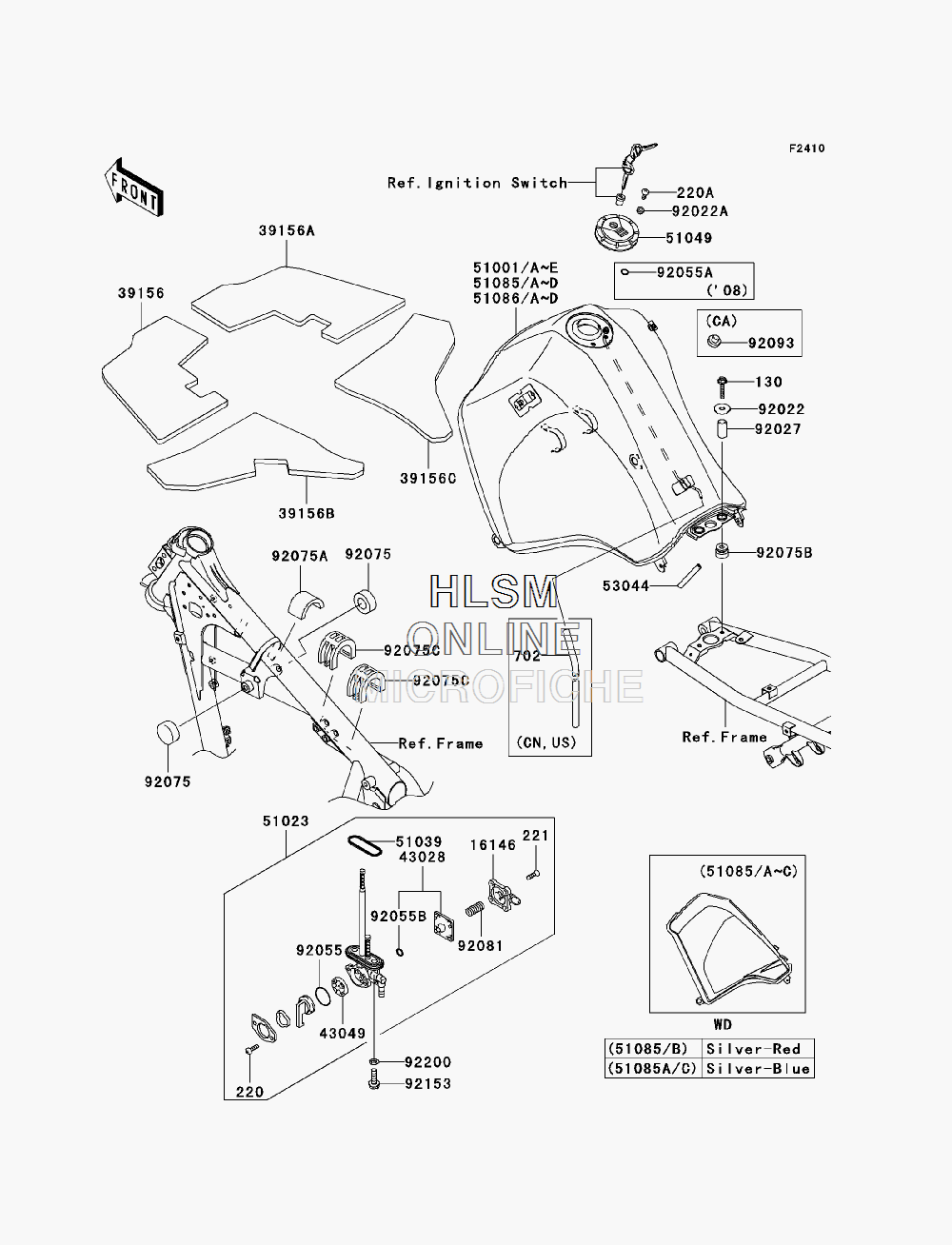

FUEL TANK для Kawasaki KL650E KLR650 - 2008 года выпуска
-
№АртикулНазвание
-
1614616146-1010 COVER-ASSY,TAP DIAPHRAGMCOVER-ASSY,TAP DIAPHRAGM
-
3915639156-0254 PAD,FUEL TANK, FRONT, LEFT HANDPAD,FUEL TANK, FRONT, LEFT HAND
-
39156A39156-0255 PAD,FUEL TANK, FRONT, RIGHT HANDPAD,FUEL TANK, FRONT, RIGHT HAND
-
39156B39156-0256 PAD,FUEL TANK, REAR, LEFT HANDPAD,FUEL TANK, REAR, LEFT HAND
-
39156C39156-0257 PAD,FUEL TANK, REAR, RIGHT HANDPAD,FUEL TANK, REAR, RIGHT HAND
-
4302843028-1033 DIAPHRAGMDIAPHRAGM
-
4304943049-1103 PACKINGPACKING
-
5100151001-0230-IG TANK-COMP-FUEL,EBONY (EXCEPT CALIF.) (FOR 175)TANK-COMP-FUEL,EBONY (EXCEPT CALIF.) (FOR 175)
-
5102351023-0003 TAP-ASSY,FUELTAP-ASSY,FUEL
-
5103951039-003 RING,TAP FLANGEDRING,TAP FLANGED
-
5104951049-1134 CAP-TANK,FUELCAP-TANK,FUEL
-
5108551085-5261-X1 TANK-COMP-FUEL,G.SILVER (EXCEPT CALIF.)TANK-COMP-FUEL,G.SILVER (EXCEPT CALIF.)
-
51085A51085-5262-X1 TANK-COMP-FUEL,G.SILVER (EXCEPT CALIF.)TANK-COMP-FUEL,G.SILVER (EXCEPT CALIF.)
-
51085B51085-5263-X1 TANK-COMP-FUEL,G.SILVER (CALIF. ONLY)TANK-COMP-FUEL,G.SILVER (CALIF. ONLY)
-
51085C51085-5264-X1 TANK-COMP-FUEL,G.SILVER (CALIF. ONLY)TANK-COMP-FUEL,G.SILVER (CALIF. ONLY)
-
51085D51085-5268-IG TANK-COMP-FUEL,EBONY (CALIF. ONLY)TANK-COMP-FUEL,EBONY (CALIF. ONLY)
-
130130BB0630 BOLT-FLANGED,6X30BOLT-FLANGED,6X30
-
220220AA0308 SCREW-PAN-CROS,3X8SCREW-PAN-CROS,3X8
-
220A220AA0510 SCREW-PAN-CROSS,5X10SCREW-PAN-CROSS,5X10
-
221221AA0414 SCREW-CSK-CROS,4X14SCREW-CSK-CROS,4X14
-
702702A05620 TUBE-RUBBER,5X8X620 (EXCEPT CALIF.)TUBE-RUBBER,5X8X620 (EXCEPT CALIF.)
-
5304453044-1249 TRIM,L=60TRIM,L=60
-
9202292022-125 WASHER,6.5X20X1.6WASHER,6.5X20X1.6
-
92022A92022-1977 WASHER,5.1X10X1.0WASHER,5.1X10X1.0
-
9202792027-1856 COLLAR,6.8X10X20COLLAR,6.8X10X20
-
9205592055-1085 RING-O,TAP LEVERRING-O,TAP LEVER
-
92055A92055-1552 RING-O,ID=9RING-O,ID=9
-
92055B92055-1664 RING-ORING-O
-
9207592075-101 DAMPER,FUEL TANKDAMPER,FUEL TANK
-
92075A92075-1507 DAMPERDAMPER
-
92075B92075-1660 DAMPERDAMPER
-
92075C92075-1862 DAMPER,FUEL TANKDAMPER,FUEL TANK
-
9208192081-1240 SPRING,TAP DIAPHRAGMSPRING,TAP DIAPHRAGM
-
9209392093-1030 SEAL,FUEL TANK CAP (CALIF. ONLY)SEAL,FUEL TANK CAP (CALIF. ONLY)
-
9215392153-0746 BOLT,FLANGED,6X20BOLT,FLANGED,6X20
-
9220092200-0117 WASHER,6.5X11.5X0.8WASHER,6.5X11.5X0.8
