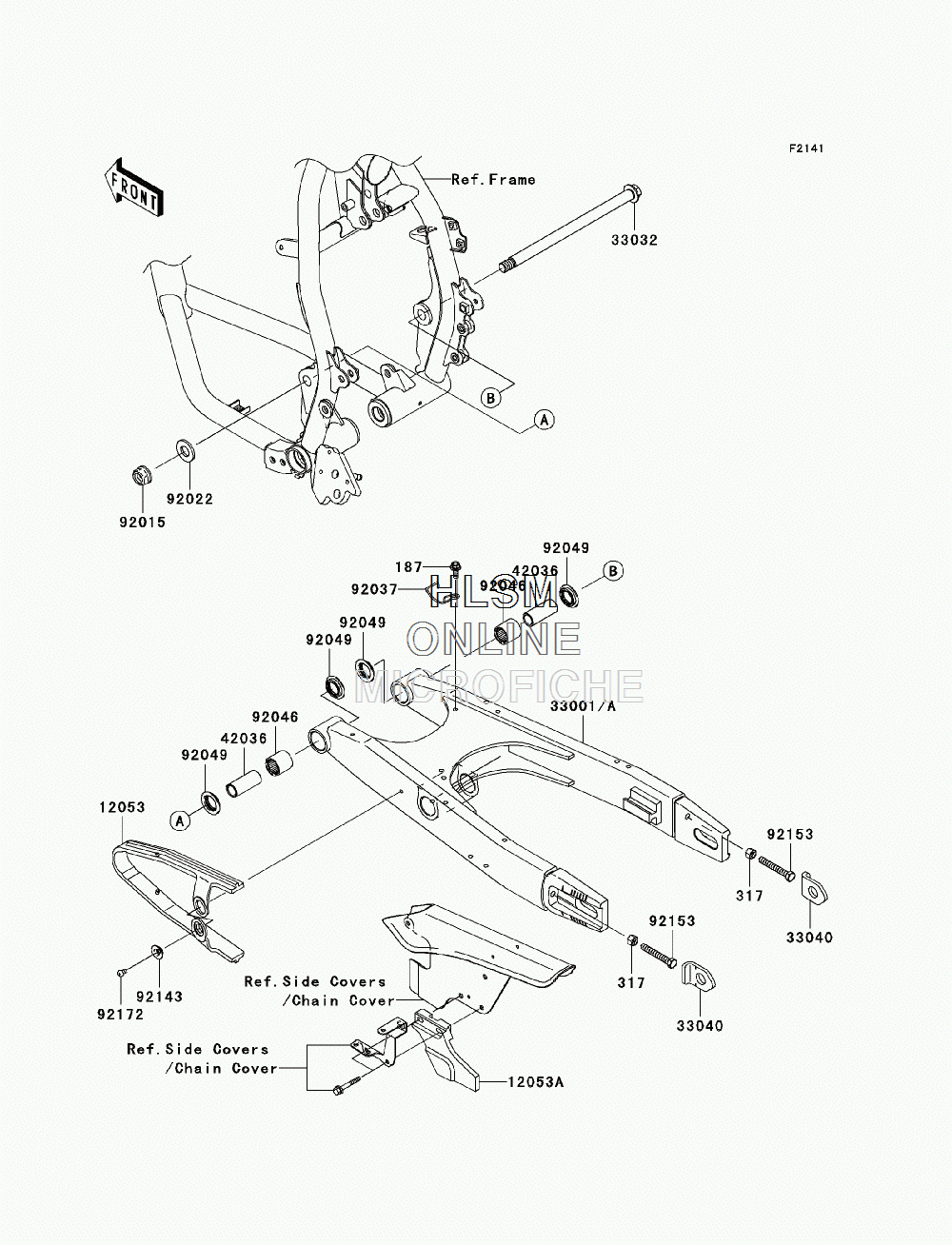

SUSPENSION - SWINGARM для Kawasaki KL650E KLR650 - 2008 года выпуска
-
№АртикулНазвание
-
187187BA0616 BOLT-UPSET-WSP,6X16BOLT-UPSET-WSP,6X16
-
317317BA0800 NUT-HEX-SMALL,8MMNUT-HEX-SMALL,8MM
-
1205312053-0082 GUIDE-CHAINGUIDE-CHAIN
-
12053A12053-1104 GUIDE-CHAIN, REARGUIDE-CHAIN, REAR
-
3300133001-0102-458 ARM-COMP-SWING,P.SILVERARM-COMP-SWING,P.SILVER
-
3303233032-1128 SHAFT-SWING ARMSHAFT-SWING ARM
-
3304033040-0024 ADJUSTER-CHAINADJUSTER-CHAIN
-
4203642036-1204 SLEEVE,15X20X47.5SLEEVE,15X20X47.5
-
9201592015-1459 NUT,14MMNUT,14MM
-
9202292022-1701 WASHER,16X32X3.2WASHER,16X32X3.2
-
9203792037-1902 CLAMP,HOSECLAMP,HOSE
-
9204692046-1110 BEARING-NEEDLE,BM202726BEARING-NEEDLE,BM202726
-
9204992049-1109 SEAL-OIL,ARMSEAL-OIL,ARM
-
9214392143-1676 COLLARCOLLAR
-
9215392153-1407 BOLT,8X55BOLT,8X55
-
9217292172-0119 SCREW,5X8SCREW,5X8
