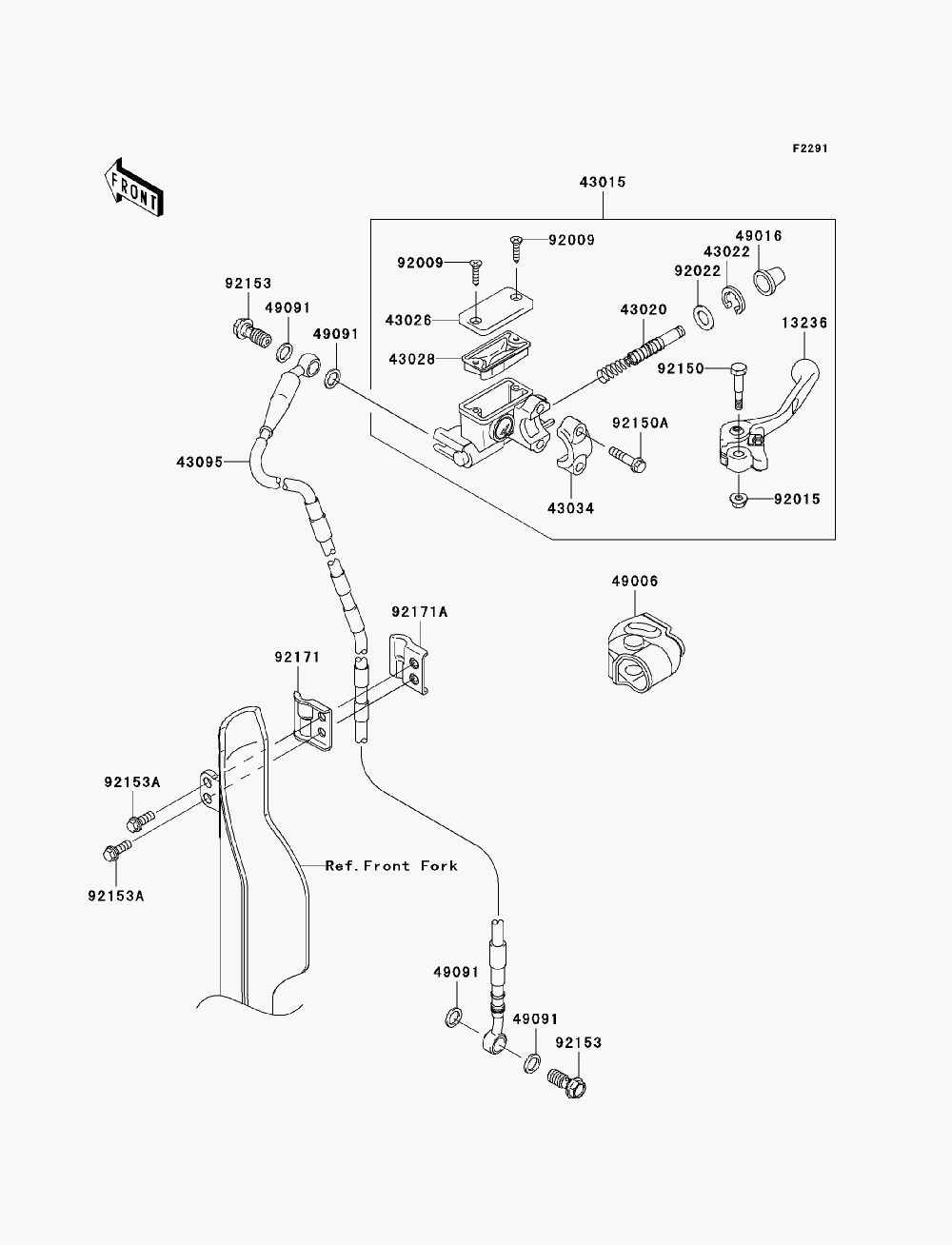

BRAKE - MASTER CYLINDER - FRONT для Kawasaki KX250F (KX250T8F) - 2008 года выпуска
-
№АртикулНазвание
-
1323613236-1346 LEVER-COMP, FRONT BRAKELEVER-COMP, FRONT BRAKE
-
4301543015-1674 CYLINDER-ASSY-MASTER, FRONTCYLINDER-ASSY-MASTER, FRONT
-
4302043020-1123 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302243022-1010 STOPPER-BRAKE,PISTONSTOPPER-BRAKE,PISTON
-
4302643026-1075 CAP-BRAKECAP-BRAKE
-
4302843028-1067 DIAPHRAGMDIAPHRAGM
-
4303443034-1110 HOLDER-BRAKEHOLDER-BRAKE
-
4309543095-0286 HOSE-BRAKE, FRONTHOSE-BRAKE, FRONT
-
4900649006-1344 BOOT, FRONT BRAKE LEVERBOOT, FRONT BRAKE LEVER
-
4901649016-1044 COVER-SEAL,MASTER CYLINDERCOVER-SEAL,MASTER CYLINDER
-
4909149091-0001 WASHER-SEAL,10.1X14.5X1.5WASHER-SEAL,10.1X14.5X1.5
-
9200992009-1458 SCREW,4MMSCREW,4MM
-
9201592015-1528 NUT,FLANGED,6MMNUT,FLANGED,6MM
-
9202292022-1814 WASHERWASHER
-
9215092150-1451 BOLT, LEVER SETBOLT, LEVER SET
-
92150A92150-1452 BOLTBOLT
-
9215392153-0627 BOLT,OIL,L=23BOLT,OIL,L=23
-
92153A92153-0695 BOLT,6X16BOLT,6X16
-
9217192171-0481 CLAMP,BRAKE HOSE, LEFT HANDCLAMP,BRAKE HOSE, LEFT HAND
-
92171A92171-0482 CLAMP,BRAKE HOSE, RIGHT HANDCLAMP,BRAKE HOSE, RIGHT HAND
