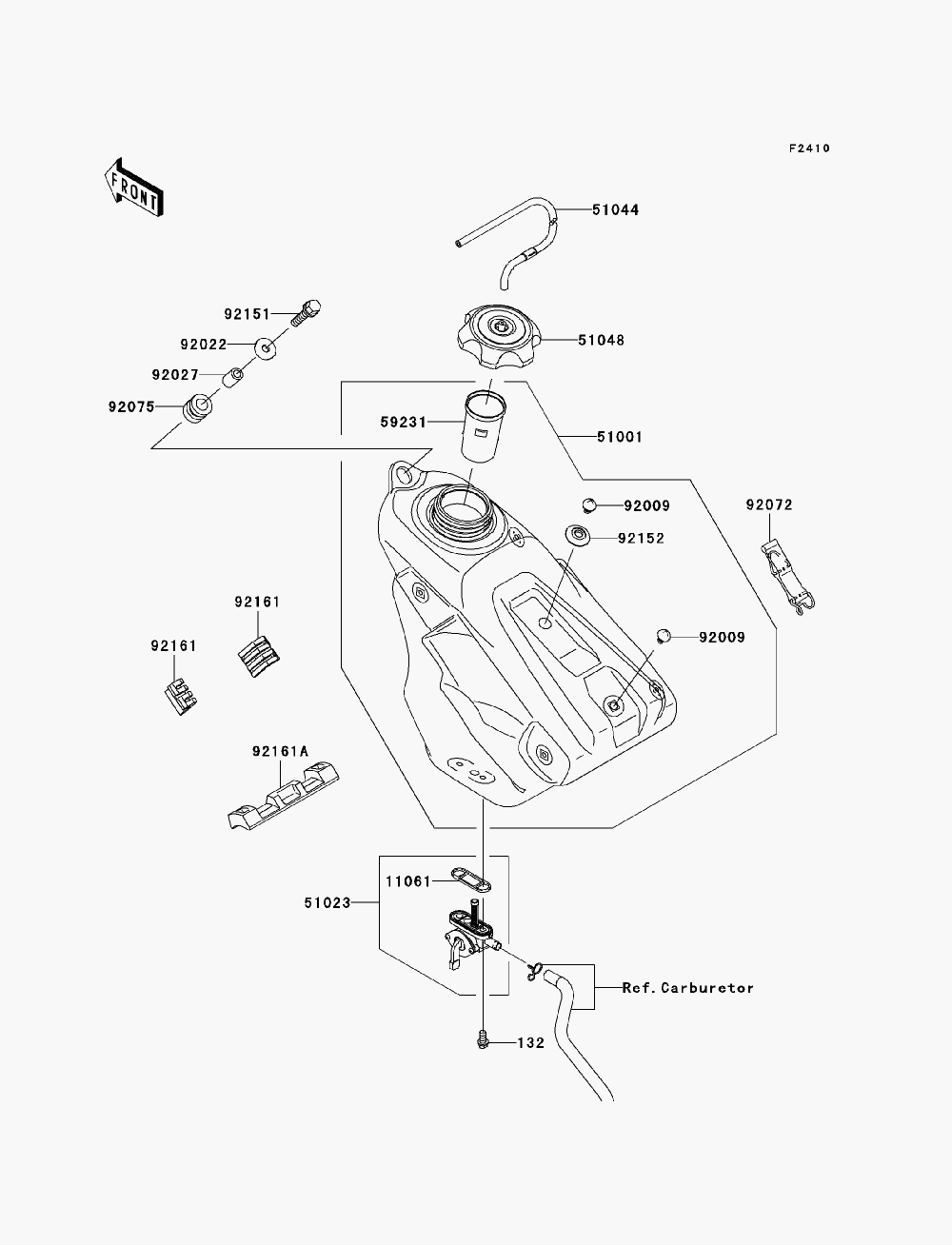

FUEL TANK для Kawasaki KX250F (KX250T8F) - 2008 года выпуска
-
№АртикулНазвание
-
132132L0612 BOLT-FLANGED-SMALL,6X12BOLT-FLANGED-SMALL,6X12
-
1106111061-0181 GASKET,FUEL TAPGASKET,FUEL TAP
-
5100151001-0110-6Z TANK-COMP-FUEL,F.BLACK (FOR 777)TANK-COMP-FUEL,F.BLACK (FOR 777)
-
5102351023-0025 TAP-ASSY,FUELTAP-ASSY,FUEL
-
5104451044-0023 TUBE-ASSY,TANK CAPTUBE-ASSY,TANK CAP
-
5104851048-0009 CAP-ASSY-TANK,FUELCAP-ASSY-TANK,FUEL
-
5923159231-0019 FILLERFILLER
-
9200992009-1971 SCREW,6MMSCREW,6MM
-
9202292022-1690 WASHER,6.5X24X2WASHER,6.5X24X2
-
9202792027-1966 COLLAR,6.8X10X14COLLAR,6.8X10X14
-
9207292072-0045 BAND,FUEL TANKBAND,FUEL TANK
-
9207592075-1787 DAMPERDAMPER
-
9215192151-1930 BOLT,FLANGED-SMALL,6X25BOLT,FLANGED-SMALL,6X25
-
9215292152-1346 COLLARCOLLAR
-
9216192161-0254 DAMPER,FUEL TANK,SIDEDAMPER,FUEL TANK,SIDE
-
92161A92161-0255 DAMPER,FUEL TANK, REARDAMPER,FUEL TANK, REAR
