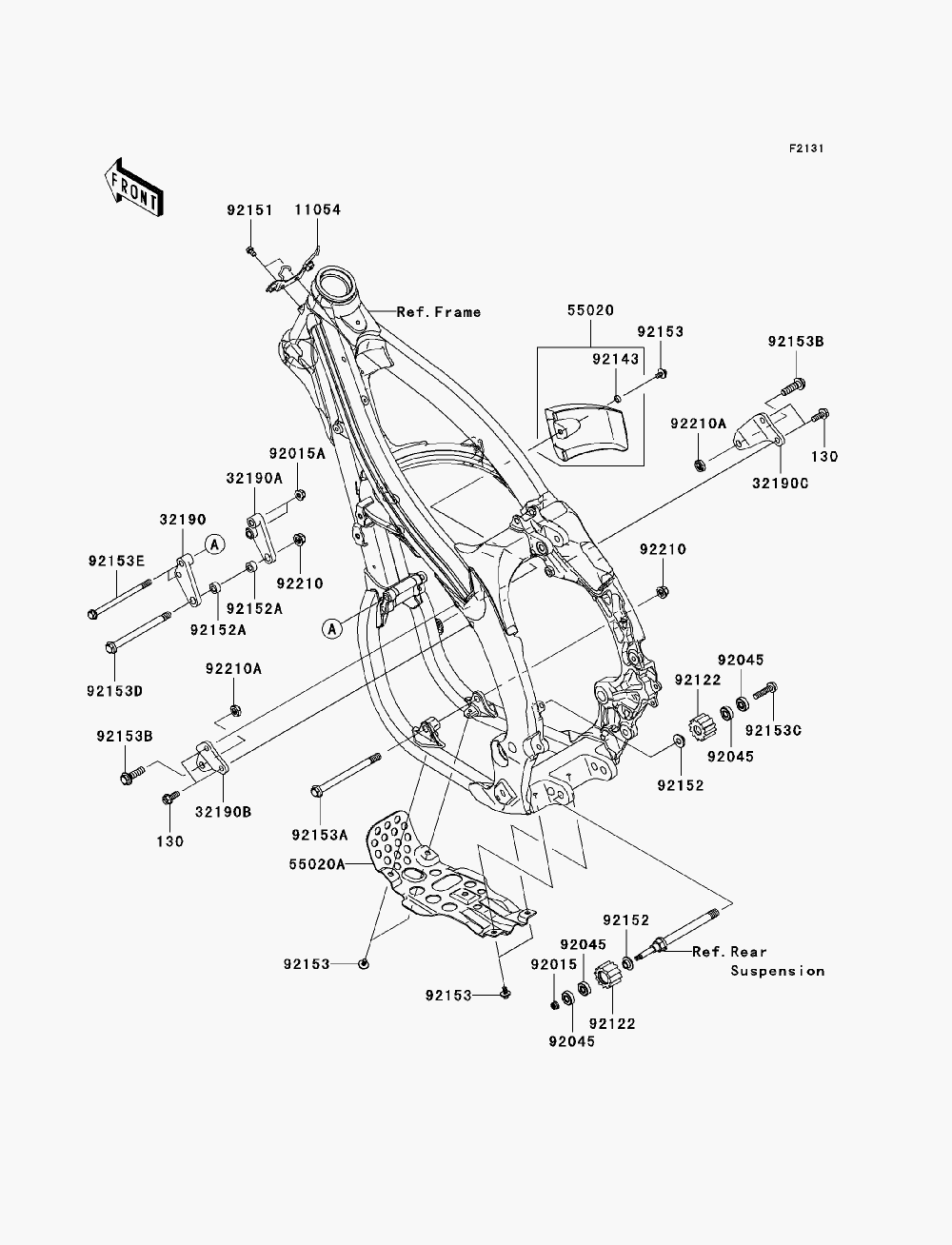

FRAME FITTING(S) для Kawasaki KX450F (KX450D8F) - 2008 года выпуска
-
№АртикулНазвание
-
130130P0820 BOLT-FLANGED,8X20BOLT-FLANGED,8X20
-
1105411054-0300 BRACKET,IGNITERBRACKET,IGNITER
-
3219032190-0330 BRACKET-ENGINE, FRONTBRACKET-ENGINE, FRONT
-
32190A32190-0331 BRACKET-ENGINE, FRONTBRACKET-ENGINE, FRONT
-
32190B32190-0351 BRACKET-ENGINE,UPP, LEFT HANDBRACKET-ENGINE,UPP, LEFT HAND
-
32190C32190-0352 BRACKET-ENGINE,UPP, RIGHT HANDBRACKET-ENGINE,UPP, RIGHT HAND
-
5502055020-0179-RZ GUARD,ENGINE, RIGHT HAND,WHITE (FOR 777)GUARD,ENGINE, RIGHT HAND,WHITE (FOR 777)
-
55020A55020-0369 GUARD,SKIDGUARD,SKID
-
9201592015-1339 NUT,LOCK,FLANGED,6MMNUT,LOCK,FLANGED,6MM
-
92015A92015-1432 NUT,8MMNUT,8MM
-
9204592045-0060 BEARING-BALL,608LLU/2ABEARING-BALL,608LLU/2A
-
9212292122-0016 ROLLER,CHAIN GUIDEROLLER,CHAIN GUIDE
-
9214392143-1307 COLLARCOLLAR
-
9215192151-1233 BOLT,FLANGED,6X10BOLT,FLANGED,6X10
-
9215292152-0459 COLLARCOLLAR
-
92152A92152-0595 COLLAR,10.2X20X10COLLAR,10.2X20X10
-
9215392153-0503 BOLT,6X12BOLT,6X12
-
92153A92153-0704 BOLT,FLANGED,10X137BOLT,FLANGED,10X137
-
92153B92153-0802 BOLT,FLANGED,10X35BOLT,FLANGED,10X35
-
92153C92153-1652 BOLT,FLANGED,8X35BOLT,FLANGED,8X35
-
92153D92153-1869 BOLT,FLANGED,10X128BOLT,FLANGED,10X128
-
92153E92153-1870 BOLT,FLANGED,8X126BOLT,FLANGED,8X126
-
9221092210-1080 NUT,LOCK,FLANGED,10MMNUT,LOCK,FLANGED,10MM
-
92210A92210-1184 NUT,LOCK,10MMNUT,LOCK,10MM
