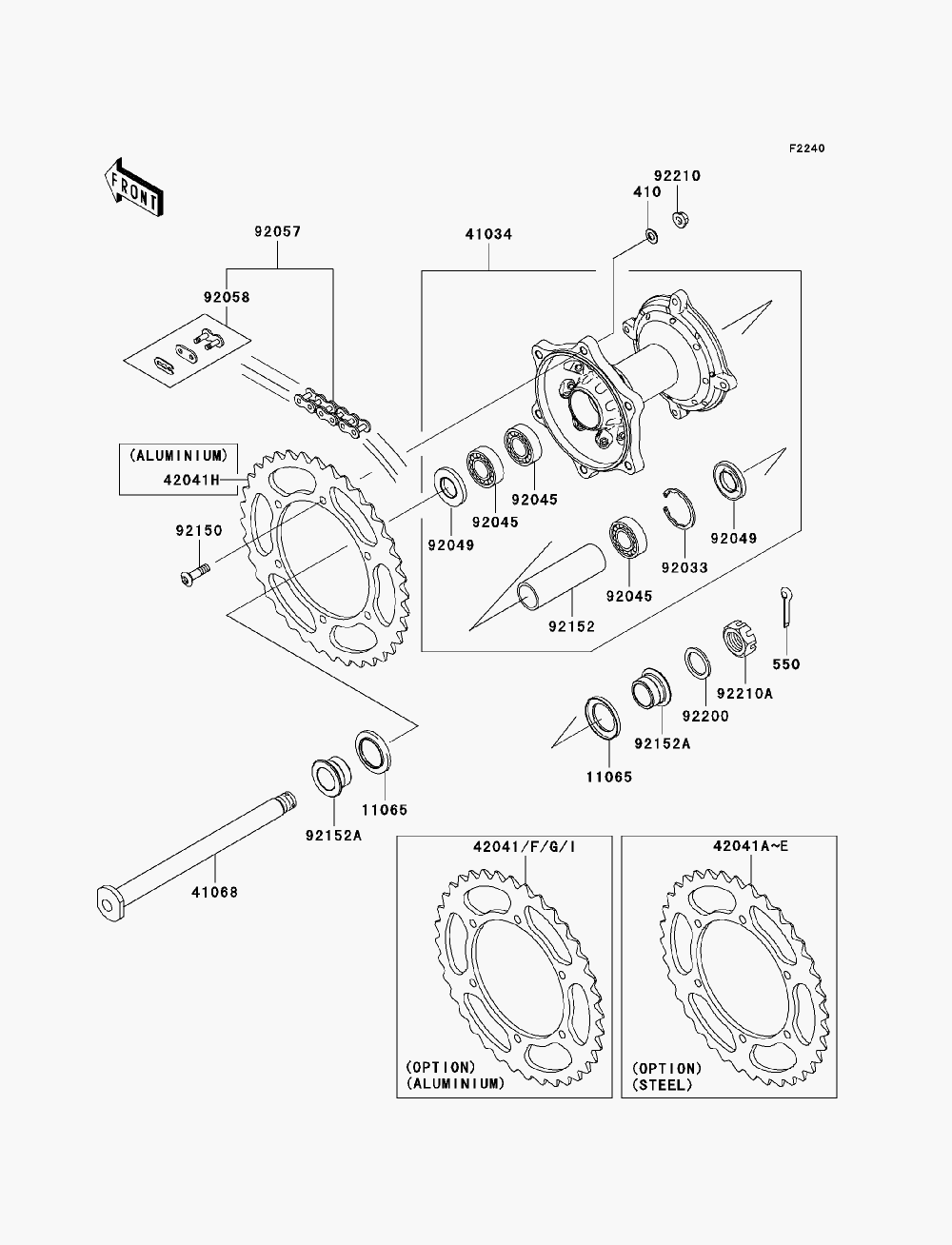

REAR HUB для Kawasaki KX450F (KX450D8F) - 2008 года выпуска
-
№АртикулНазвание
-
410410B0800 WASHER-PLAIN-SMALL,8MMWASHER-PLAIN-SMALL,8MM
-
550550D3035 PIN-COTTER,3.0X35PIN-COTTER,3.0X35
-
1106511065-1253 CAP,AXLECAP,AXLE
-
4103441034-0035-10Y DRUM-ASSY, REAR BRAKE,M.M.GOLD (FOR 777)DRUM-ASSY, REAR BRAKE,M.M.GOLD (FOR 777)
-
4106841068-1466 AXLE, REARAXLE, REAR
-
4204142041-0001 SPROCKET-HUB,52T,AL (OPTION)SPROCKET-HUB,52T,AL (OPTION)
-
42041A42041-1383 SPROCKET-HUB,48T (OPTION)SPROCKET-HUB,48T (OPTION)
-
42041B42041-1384 SPROCKET-HUB,49T (OPTION)SPROCKET-HUB,49T (OPTION)
-
42041C42041-1408 SPROCKET-HUB,50T (OPTION)SPROCKET-HUB,50T (OPTION)
-
42041D42041-1428 SPROCKET-HUB,51T (OPTION)SPROCKET-HUB,51T (OPTION)
-
42041E42041-1429 SPROCKET-HUB,52T (OPTION)SPROCKET-HUB,52T (OPTION)
-
42041F42041-1448 SPROCKET-HUB,48T,AL (OPTION)SPROCKET-HUB,48T,AL (OPTION)
-
42041G42041-1449 SPROCKET-HUB,49T,AL (OPTION)SPROCKET-HUB,49T,AL (OPTION)
-
42041H42041-1450 SPROCKET-HUB,50T,ALSPROCKET-HUB,50T,AL
-
42041I42041-1451 SPROCKET-HUB,51T,AL (OPTION)SPROCKET-HUB,51T,AL (OPTION)
-
9203392033-1041 RING-SNAP,42MMRING-SNAP,42MM
-
9204592045-1446 BEARING-BALL,69052RSBEARING-BALL,69052RS
-
9204992049-1614 SEAL-OILSEAL-OIL
-
9205792057-1541 CHAIN,DRIVE,DID520DMA2SDHX114LCHAIN,DRIVE,DID520DMA2SDHX114L
-
9205892058-1074 JOINT-CHAIN,DRIVEJOINT-CHAIN,DRIVE
-
9215092150-1978 BOLT,SOCKET,8X28BOLT,SOCKET,8X28
-
9215292152-1427 COLLAR, REAR BRAKE DRUM,L=106.5COLLAR, REAR BRAKE DRUM,L=106.5
-
92152A92152-1473 COLLAR, REAR AXLE,L=17COLLAR, REAR AXLE,L=17
-
9220092200-1623 WASHER,22.5X35X2.3WASHER,22.5X35X2.3
-
9221092210-0159 NUT,FLANGED,LOCK,8MMNUT,FLANGED,LOCK,8MM
-
92210A92210-1411 NUT,CASTLE,22MMNUT,CASTLE,22MM
