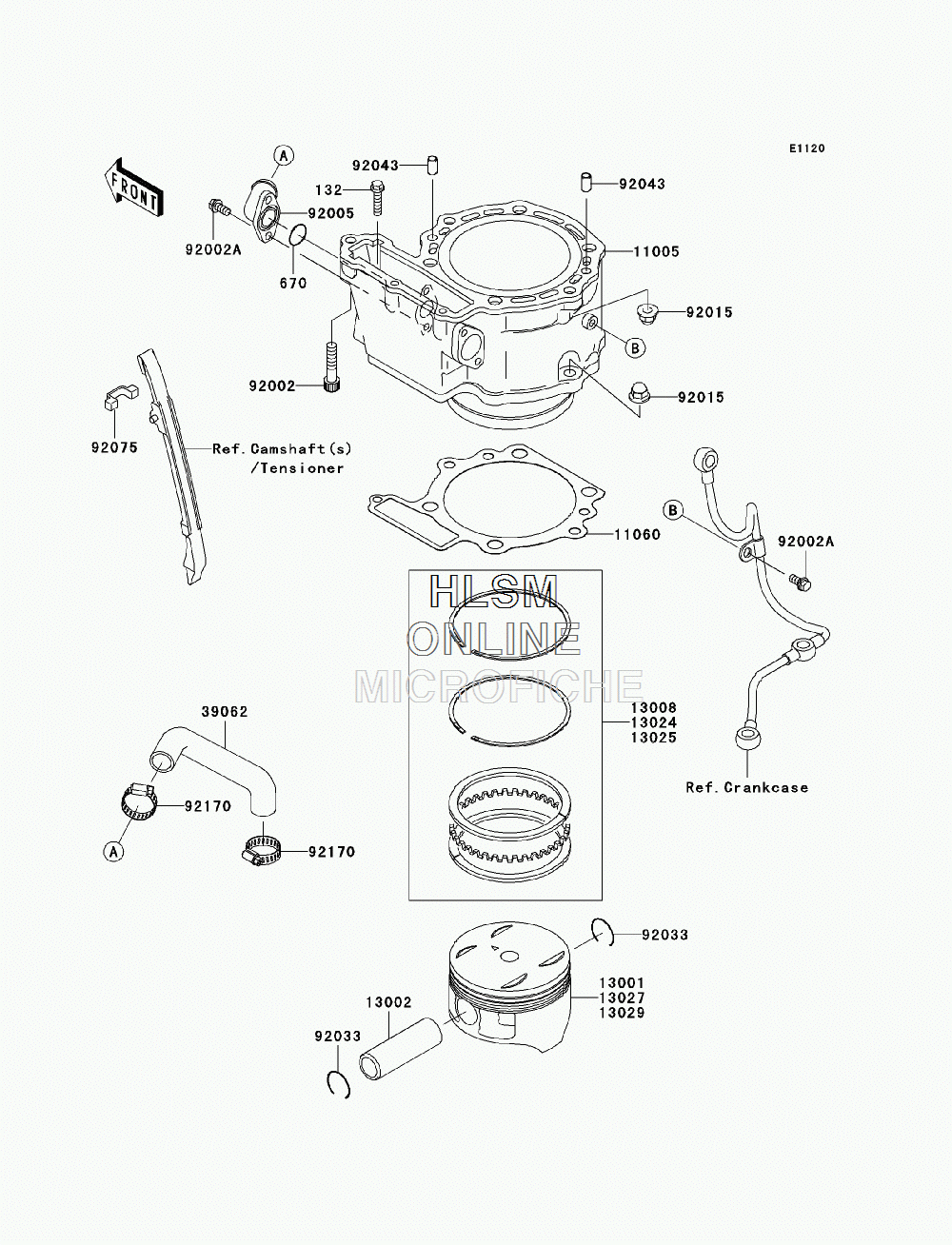

CYLINDER - PISTON(S) для Kawasaki KLR650 (KL650E9F) - 2009 года выпуска
-
№АртикулНазвание
-
132132BA0625 BOLT-FLANGED-SMALL,6X25BOLT-FLANGED-SMALL,6X25
-
670670B2018 O RING,18MMO RING,18MM
-
1100511005-0097 CYLINDER-ENGINECYLINDER-ENGINE
-
1106011060-1110 GASKET,CYLINDER BASEGASKET,CYLINDER BASE
-
1300113001-0092 PISTON-ENGINEPISTON-ENGINE
-
1300213002-1101 PIN-PISTONPIN-PISTON
-
1300813008-0033 RING-SET-PISTONRING-SET-PISTON
-
1302413024-0010 RING-SET-PISTON LL,O/S 1.00RING-SET-PISTON LL,O/S 1.00
-
1302513025-0013 RING-SET-PISTON L,O/S 0.50RING-SET-PISTON L,O/S 0.50
-
1302713027-0014 PISTON-ENGINE LL,O/S 1.00PISTON-ENGINE LL,O/S 1.00
-
1302913029-0019 PISTON-ENGINE L,O/S 0.50PISTON-ENGINE L,O/S 0.50
-
3906239062-0150 HOSE-COOLING,W/P-CYLINDERHOSE-COOLING,W/P-CYLINDER
-
9200292002-1409 BOLT,SOCKET,8X35BOLT,SOCKET,8X35
-
92002A92002-1569 BOLT,6X12BOLT,6X12
-
9200592005-0061 FITTINGFITTING
-
9201592015-1982 NUT,CAP,8MMNUT,CAP,8MM
-
9203392033-1226 RING-SNAPRING-SNAP
-
9204392043-1263 PIN,6.2X8X14PIN,6.2X8X14
-
9207592075-1968 DAMPERDAMPER
-
9217092170-1033 CLAMP,COOLING HOSECLAMP,COOLING HOSE
