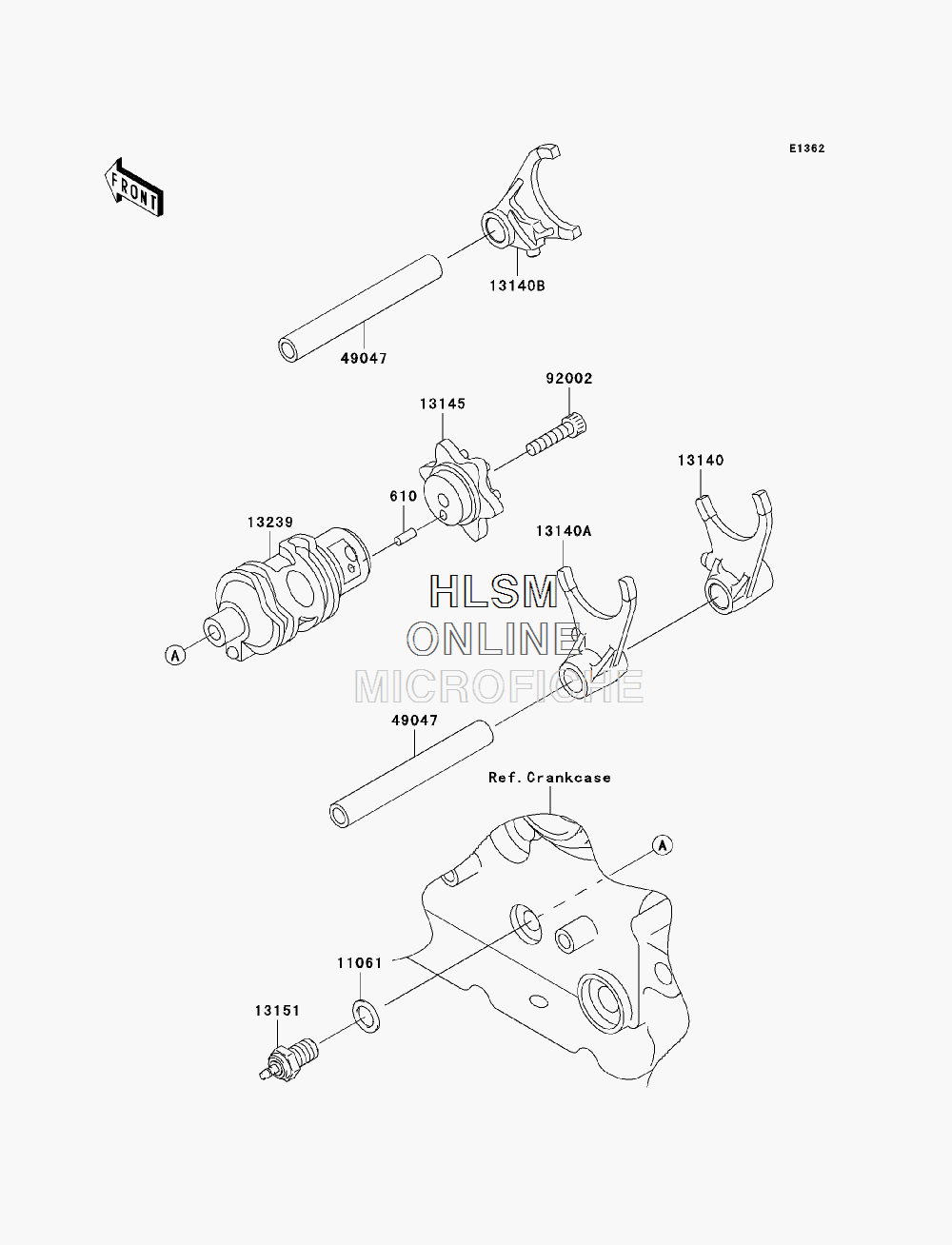

GEAR CHANGE DRUM W/ SHIFT FORK(S) для Kawasaki KLR650 (KL650E9F) - 2009 года выпуска
-
№АртикулНазвание
-
610610A0410 ROLLER,4X10ROLLER,4X10
-
1106111061-0373 GASKET,10.5X16X1GASKET,10.5X16X1
-
1314013140-1023 FORK-SHIFT,LOWFORK-SHIFT,LOW
-
13140A13140-1024 FORK-SHIFT,2ND & 3RDFORK-SHIFT,2ND & 3RD
-
13140B13140-1288 FORK-SHIFT,4TH & TOP,36MMFORK-SHIFT,4TH & TOP,36MM
-
1314513145-0042 CAM-CHANGE DRUMCAM-CHANGE DRUM
-
1315113151-1080 SWITCH-COMP,NEUTRALSWITCH-COMP,NEUTRAL
-
1323913239-1103 DRUM-ASSY-CHANGEDRUM-ASSY-CHANGE
-
4904749047-1003 ROD-SHIFT,L=93.7ROD-SHIFT,L=93.7
-
9200292002-1696 BOLT,SOCKET,6X25BOLT,SOCKET,6X25
