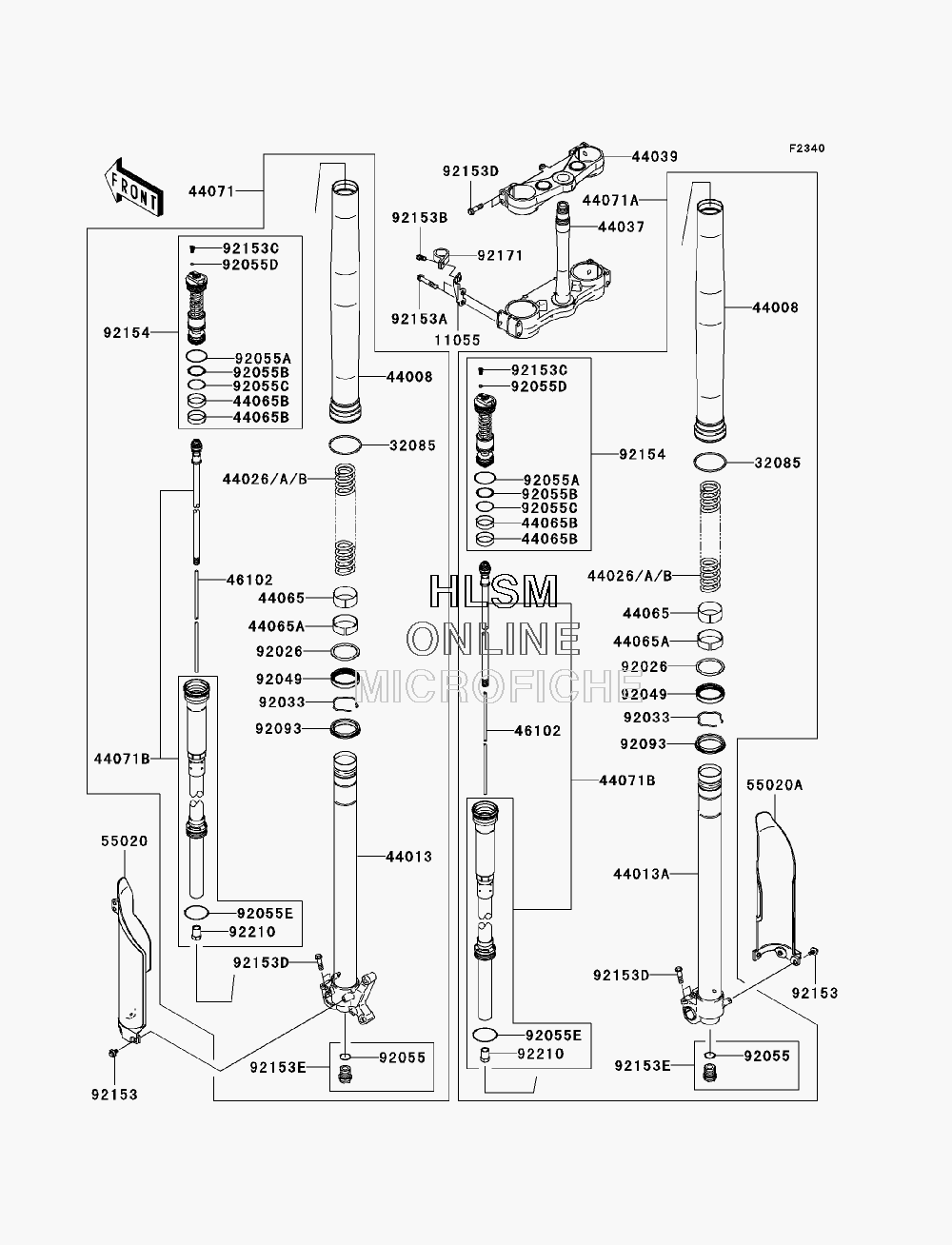

FRONT FORK для Kawasaki KX250F (KX250W9F) - 2009 года выпуска
-
№АртикулНазвание
-
1105511055-1405 BRACKET,BRAKE HOSEBRACKET,BRAKE HOSE
-
3208532085-0073 STOPPER, RINGSTOPPER, RING
-
4400844008-0047 PIPE-FORK OUTERPIPE-FORK OUTER
-
4401344013-0126 PIPE-FORK INNER, LEFT HANDPIPE-FORK INNER, LEFT HAND
-
44013A44013-0127 PIPE-FORK INNER, RIGHT HANDPIPE-FORK INNER, RIGHT HAND
-
4402644026-0075 SPRING-FRONT FORK,K=4.2N/MM (OPTION)SPRING-FRONT FORK,K=4.2N/MM (OPTION)
-
44026A44026-0076 SPRING-FRONT FORK,K=4.4N/MMSPRING-FRONT FORK,K=4.4N/MM
-
44026B44026-0077 SPRING-FRONT FORK,K=4.6N/MM (OPTION)SPRING-FRONT FORK,K=4.6N/MM (OPTION)
-
4403744037-0096 HOLDER-FORK UNDERHOLDER-FORK UNDER
-
4403944039-0079 HOLDER-FORK UPPERHOLDER-FORK UPPER
-
4406544065-0027 BUSHING-FRONT FORK,SLIDEBUSHING-FRONT FORK,SLIDE
-
44065A44065-0028 BUSHING-FRONT FORK,GUIDEBUSHING-FRONT FORK,GUIDE
-
44065B44065-0029 BUSHING-FRONT FORK,SLIDEBUSHING-FRONT FORK,SLIDE
-
4407144071-0533 DAMPER-ASSY,FORK, LEFT HANDDAMPER-ASSY,FORK, LEFT HAND
-
44071A44071-0534 DAMPER-ASSY,FORK, RIGHT HANDDAMPER-ASSY,FORK, RIGHT HAND
-
44071B44071-0580 DAMPER-ASSY,FORKDAMPER-ASSY,FORK
-
4610246102-0107 ROD,PUSHROD,PUSH
-
5502055020-0441-6C GUARD,FORK, LEFT HAND,EBONYGUARD,FORK, LEFT HAND,EBONY
-
55020A55020-0442-6C GUARD,FORK, RIGHT HAND,EBONYGUARD,FORK, RIGHT HAND,EBONY
-
9202692026-0089 SPACER,SEALSPACER,SEAL
-
9203392033-0039 RING-SNAPRING-SNAP
-
9204992049-0074 SEAL-OILSEAL-OIL
-
9205592055-0090 RING-O,CENTER BOLTRING-O,CENTER BOLT
-
92055A92055-0091 RING-ORING-O
-
92055B92055-0092 RING-ORING-O
-
92055C92055-0093 RING-ORING-O
-
92055D92055-0094 RING-ORING-O
-
92055E92055-0095 RING-ORING-O
-
9209392093-0059 SEAL,DUSTSEAL,DUST
-
9215392153-0936 BOLT,FLANGED,6X14BOLT,FLANGED,6X14
-
92153A92153-0990 BOLT,FLANGED,8X45BOLT,FLANGED,8X45
-
92153B92153-1397 BOLT,FLANGEDBOLT,FLANGED
-
92153C92153-1398 BOLT,PLUGBOLT,PLUG
-
92153D92153-1399 BOLT,FLANGED,8X40BOLT,FLANGED,8X40
-
92153E92153-1778 BOLT,CENTERBOLT,CENTER
-
9215492154-0122 BOLT,FORKBOLT,FORK
-
9217192171-0506 CLAMP,BRAKE HOSECLAMP,BRAKE HOSE
-
9221092210-0430 NUT,LOCKNUT,LOCK
