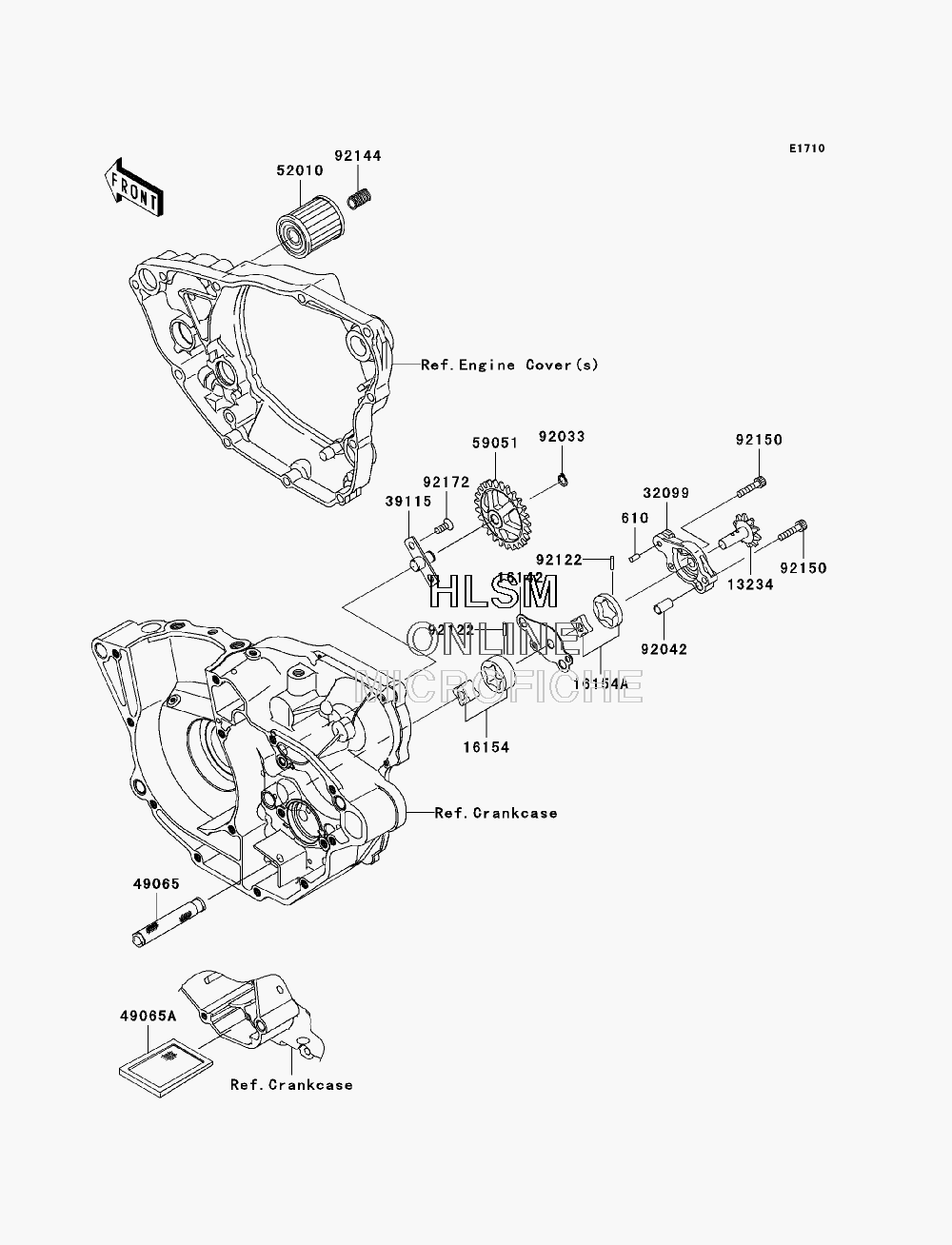

OIL PUMP для Kawasaki KX250F (KX250W9F) - 2009 года выпуска
-
№АртикулНазвание
-
610610A0408 ROLLER,4X8ROLLER,4X8
-
1323413234-0005 SHAFT-COMP,OIL PUMPSHAFT-COMP,OIL PUMP
-
1614216142-0003 COVER-PUMPCOVER-PUMP
-
1615416154-0063 ROTOR-PUMP,SCAVENGEROTOR-PUMP,SCAVENGE
-
16154A16154-0066 ROTOR-PUMP,FEEDROTOR-PUMP,FEED
-
3209932099-0018 CASE,OIL PUMPCASE,OIL PUMP
-
3911539115-0007 SHAFT-IDLER,OIL PUMPSHAFT-IDLER,OIL PUMP
-
4906549065-0017 FILTER-OILFILTER-OIL
-
49065A49065-0023 FILTER-OILFILTER-OIL
-
5201052010-0001 ELEMENT-OIL FILTERELEMENT-OIL FILTER
-
5905159051-0009 GEAR-SPUR,PUMP IDLERGEAR-SPUR,PUMP IDLER
-
9203392033-1039 RING-SNAP,8MMRING-SNAP,8MM
-
9204292042-007 PIN,DOWEL,6.3X8X14PIN,DOWEL,6.3X8X14
-
9212292122-0021 ROLLER,2.5X11.8ROLLER,2.5X11.8
-
9214492144-1761 SPRINGSPRING
-
9215092150-1491 BOLT,SOCKET,5X22BOLT,SOCKET,5X22
-
9217292172-0087 SCREW,6X14SCREW,6X14
