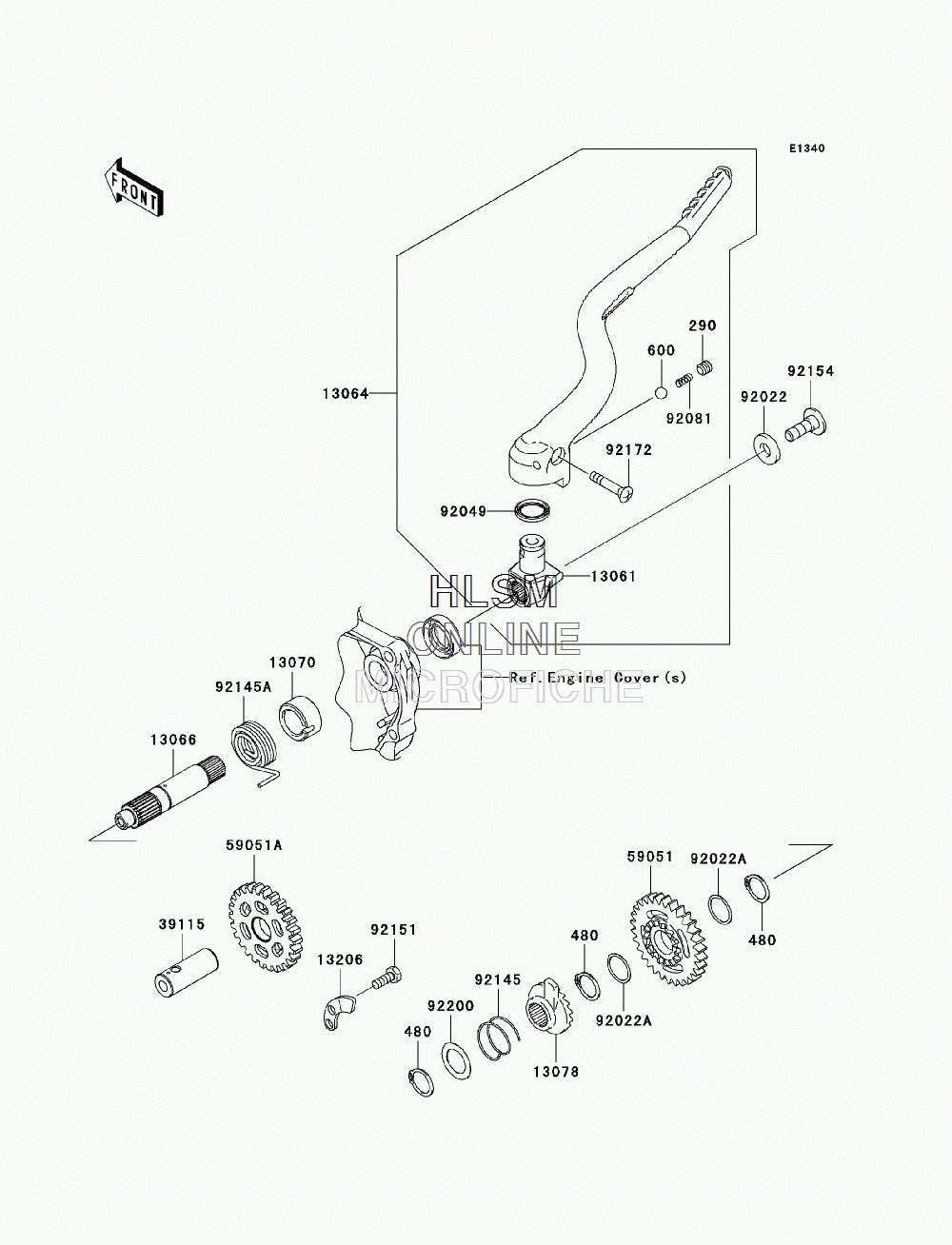

KICKSTARTER MECHANISM для Kawasaki KX250F (KX250YBF) - 2011 года выпуска
-
№АртикулНазвание
-
290290CA0808 SCREW-SET-SOCKET, 8X8SCREW-SET-SOCKET, 8X8
-
480480J1800 CIRCLIP-TYPE-C, 18MMCIRCLIP-TYPE-C, 18MM
-
600600A0800 BALL-STEEL, 1/4"BALL-STEEL, 1/4"
-
1306113061-0357 BOSSBOSS
-
1306413064-0059 LEVER-ASSY-KICKLEVER-ASSY-KICK
-
1306613066-0004 SHAFT-KICKSHAFT-KICK
-
1307013070-0011 GUIDEGUIDE
-
1307813078-0025 RATCHETRATCHET
-
1320613206-1062 GUIDE-KICKGUIDE-KICK
-
3911539115-0021 SHAFT-IDLER, KICKSHAFT-IDLER, KICK
-
5905159051-0033 GEAR-SPUR, KICK STARTER, 28TGEAR-SPUR, KICK STARTER, 28T
-
59051A59051-0089 GEAR-SPUR, KICK STARTER, 26TGEAR-SPUR, KICK STARTER, 26T
-
9202292022-1944 WASHER, 10X22X3.2WASHER, 10X22X3.2
-
92022A92022-271 WASHER, 18.3X22X0.5WASHER, 18.3X22X0.5
-
9204992049-1387 SEAL-OIL, KICK PEDALSEAL-OIL, KICK PEDAL
-
9208192081-020 SPRING, KICK PEDALSPRING, KICK PEDAL
-
9214592145-0499 SPRINGSPRING
-
92145A92145-0811 SPRINGSPRING
-
9215192151-1652 BOLT, 6X16BOLT, 6X16
-
9215492154-0521 BOLT, SOCKET, 8X25BOLT, SOCKET, 8X25
-
9217292172-0248 SCREW, 6X33SCREW, 6X33
-
9220092200-0378 WASHER, 18.3X27.5X0.5WASHER, 18.3X27.5X0.5
