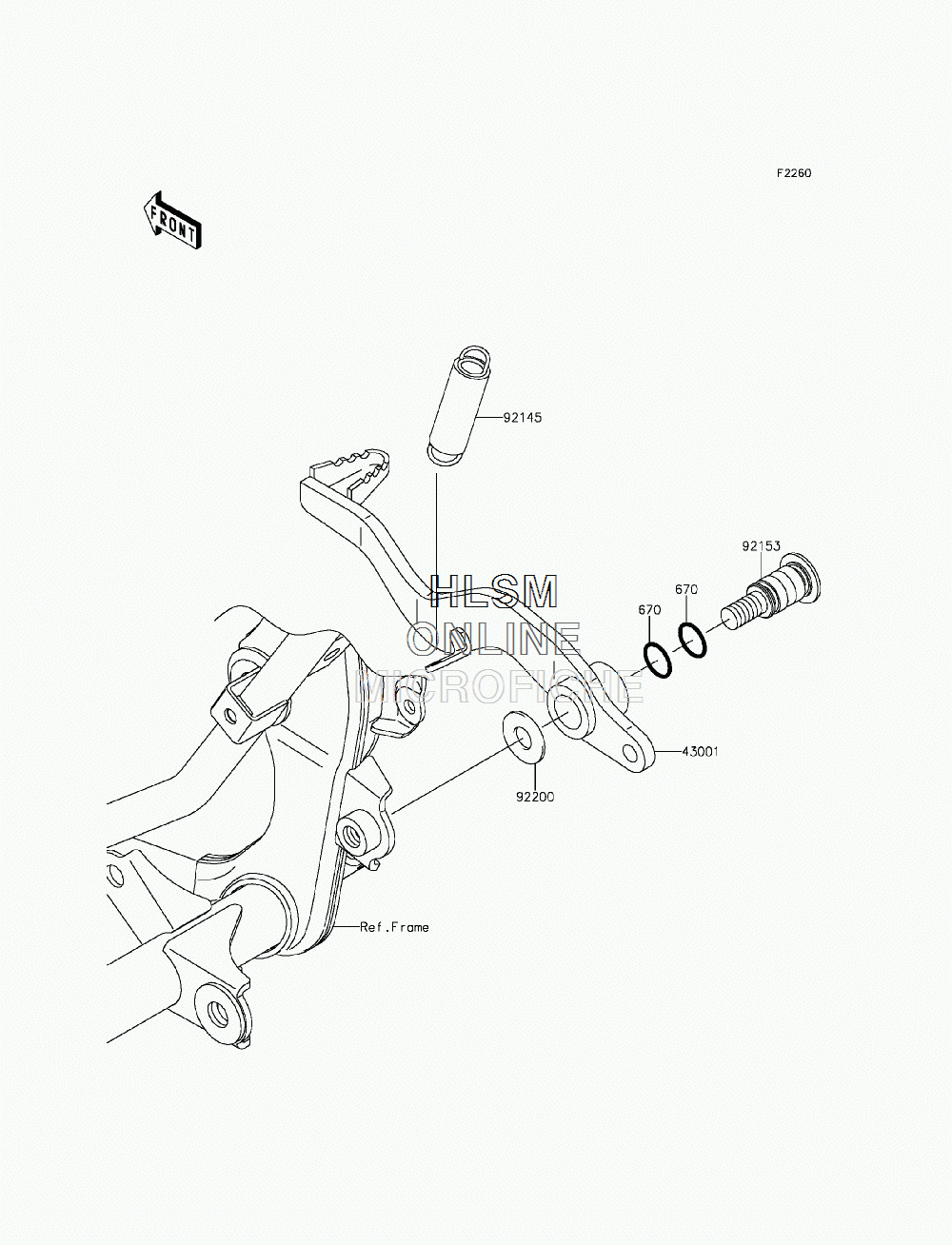

BRAKE PEDAL для Kawasaki KLX140 (KLX140ACF) - 2012 года выпуска
-
№АртикулНазвание
-
670670B2012 O RING,12MMO RING,12MM
-
4300143001-0086 LEVER-BRAKE,PEDALLEVER-BRAKE,PEDAL
-
9214592145-0591 SPRING,BRAKE PEDAL RETURNSPRING,BRAKE PEDAL RETURN
-
9215392153-0974 BOLT,BRAKE PEDAL,10MMBOLT,BRAKE PEDAL,10MM
-
9220092200-0154 WASHER,10.5X24X1.5WASHER,10.5X24X1.5
