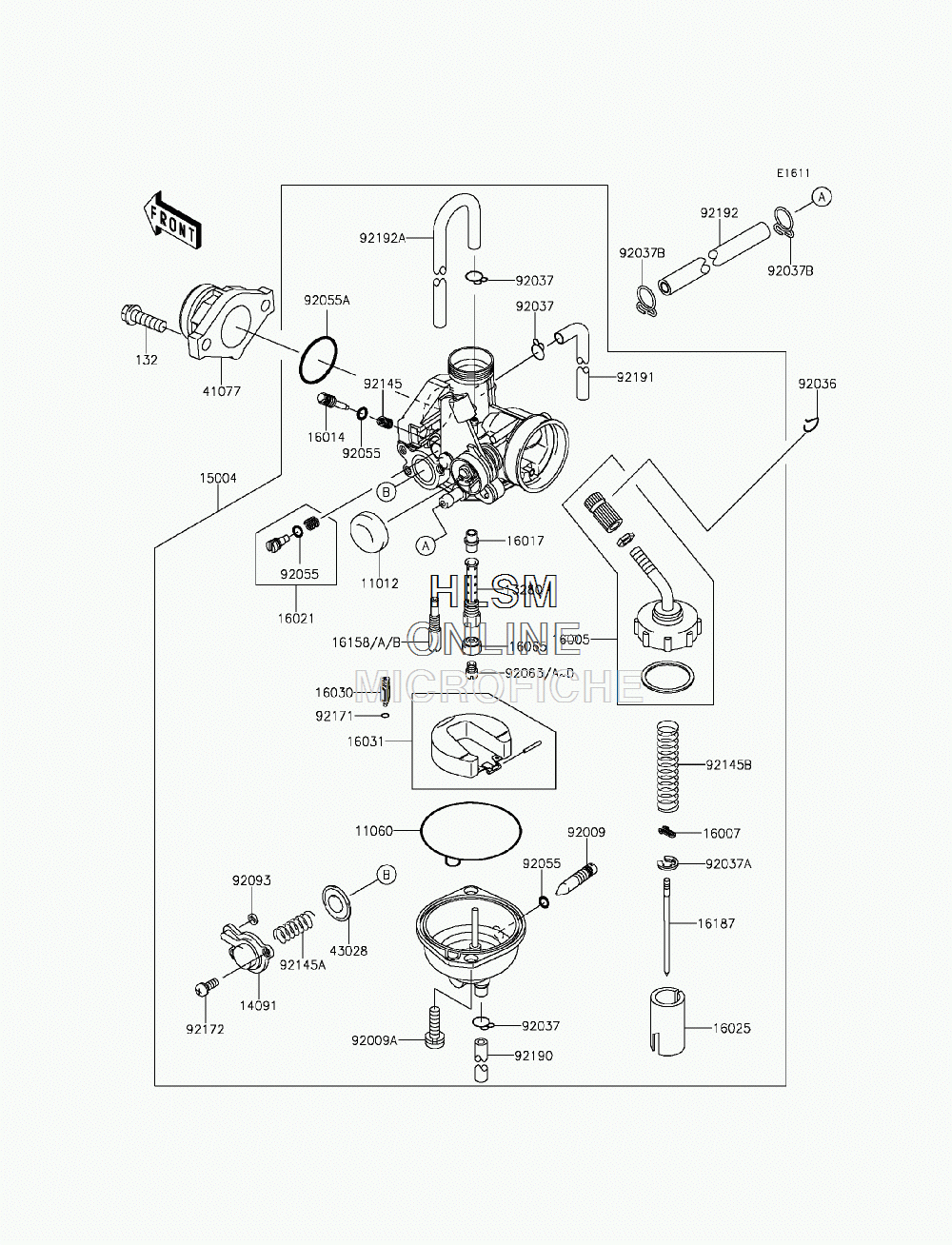

CARBURETOR для Kawasaki KLX140 (KLX140ACF) - 2012 года выпуска
-
№АртикулНазвание
-
1101211012-1940 CAP,CHOKECAP,CHOKE
-
1106011060-1700 GASKET,FLOAT CHAMBERGASKET,FLOAT CHAMBER
-
1328013280-0286 HOLDER,NEEDLE JETHOLDER,NEEDLE JET
-
1409114091-0285 COVERCOVER
-
1500415004-0024 CARBURETOR-ASSY,PB20CARBURETOR-ASSY,PB20
-
1600516005-1091 TOP-CHAMBERTOP-CHAMBER
-
1600716007-1103 SEAT-SPRINGSEAT-SPRING
-
1601416014-0011 SCREW-PILOT AIRSCREW-PILOT AIR
-
1601716017-0014 JET-NEEDLEJET-NEEDLE
-
1602116021-1203 SCREW-THROTTLE STOPSCREW-THROTTLE STOP
-
1602516025-0015 VALVE-THROTTLEVALVE-THROTTLE
-
1603016030-0003 VALVE-FLOATVALVE-FLOAT
-
1603116031-0004 FLOATFLOAT
-
1606516065-1106 HOLDER-CARBURETOR,JETHOLDER-CARBURETOR,JET
-
1615816158-0004 JET-SLOW,#35 (OPTION)JET-SLOW,#35 (OPTION)
-
16158A16158-0005 JET-SLOW,#40 (OPTION)JET-SLOW,#40 (OPTION)
-
16158B16158-1063 JET-SLOW,#38JET-SLOW,#38
-
1618716187-0283 NEEDLE-JET,NNAANEEDLE-JET,NNAA
-
4107741077-0038 ADAPTERADAPTER
-
4302843028-0003 DIAPHRAGMDIAPHRAGM
-
9200992009-1057 SCREW,DRAINSCREW,DRAIN
-
92009A92009-1750 SCREWSCREW
-
9203692036-018 RING-SNAPRING-SNAP
-
9203792037-1142 CLAMP,TUBECLAMP,TUBE
-
92037A92037-1401 CLAMP,JET NEEDLECLAMP,JET NEEDLE
-
92037B92037-1712 CLAMPCLAMP
-
9205592055-1053 RING-ORING-O
-
92055A92055-1541 RING-ORING-O
-
9206392063-0013 JET-MAIN,#90 (OPTION)JET-MAIN,#90 (OPTION)
-
92063A92063-0014 JET-MAIN,#92 (OPTION)JET-MAIN,#92 (OPTION)
-
92063B92063-0015 JET-MAIN,#95JET-MAIN,#95
-
92063C92063-0016 JET-MAIN,#98 (OPTION)JET-MAIN,#98 (OPTION)
-
92063D92063-0017 JET-MAIN,#100 (OPTION)JET-MAIN,#100 (OPTION)
-
9209392093-1046 SEAL,U-RINGSEAL,U-RING
-
132132BC0620 BOLT-FLANGED-SMALL,6X20BOLT-FLANGED-SMALL,6X20
-
9214592145-0004 SPRINGSPRING
-
92145A92145-0217 SPRINGSPRING
-
92145B92145-0610 SPRINGSPRING
-
9217192171-1837 CLAMPCLAMP
-
9217292172-0165 SCREWSCREW
-
9219092190-1218 TUBE,3.5X6.5X240TUBE,3.5X6.5X240
-
9219192191-1142 TUBE,3.5X6.5X298TUBE,3.5X6.5X298
-
9219292192-0477 TUBE,5X10X150TUBE,5X10X150
-
92192A92192-0690 TUBE,3.5X6.5X18/320TUBE,3.5X6.5X18/320
