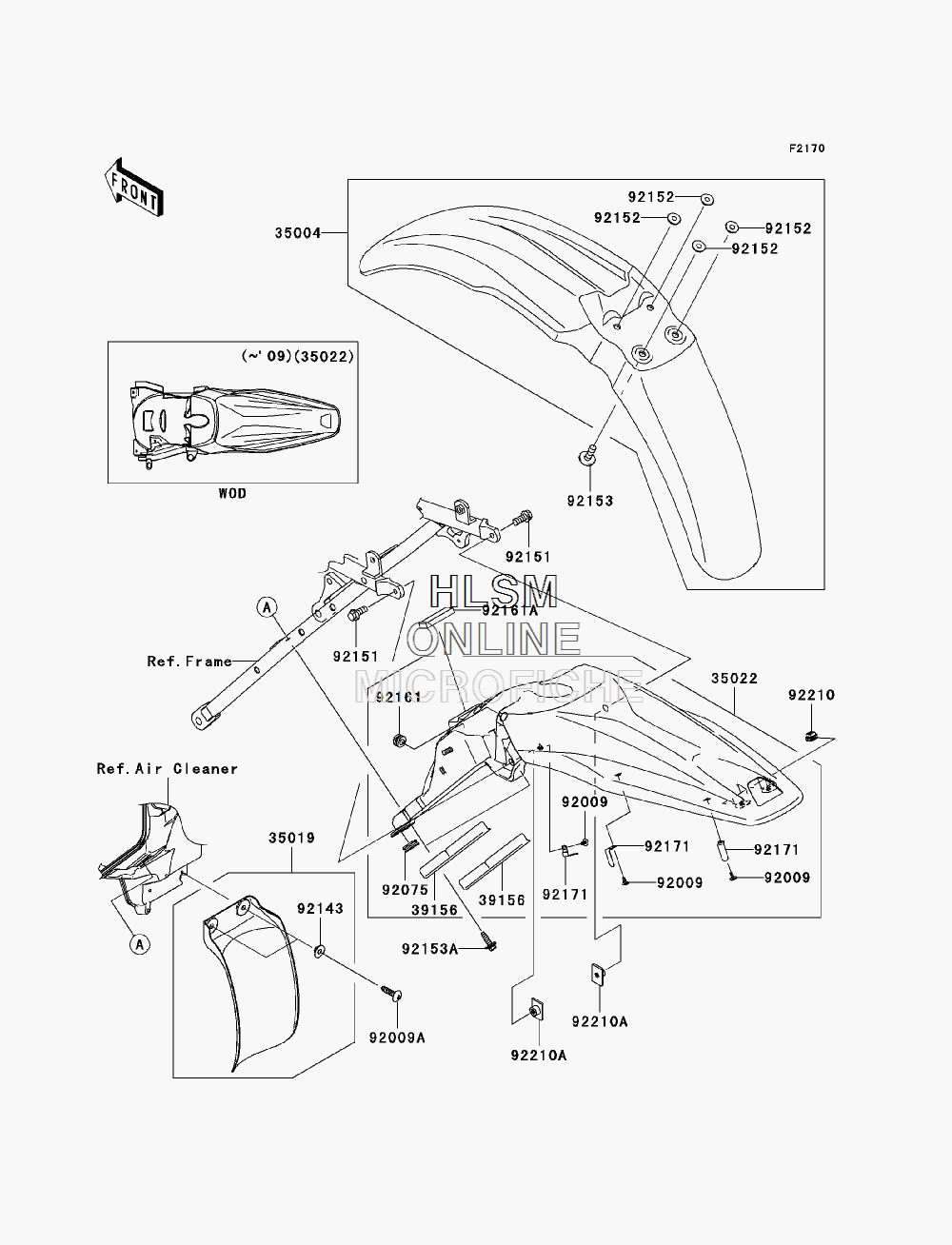

FENDER(S) для Kawasaki KLX450R (KLX450ACF) - 2012 года выпуска
-
№АртикулНазвание
-
3500435004-0078-290 FENDER-FRONT,L.GREENFENDER-FRONT,L.GREEN
-
3501935019-0050 FLAP,AIR FILTERFLAP,AIR FILTER
-
3502235022-0046-290 FENDER-COMP-REAR,L.GREENFENDER-COMP-REAR,L.GREEN
-
3915639156-0335 PADPAD
-
9200992009-1155 SCREW,TAPPING,4X8SCREW,TAPPING,4X8
-
92009A92009-1993 SCREW,TAPPING,5X20SCREW,TAPPING,5X20
-
9207592075-1912 DAMPERDAMPER
-
9214392143-1087 COLLARCOLLAR
-
9215192151-1423 BOLT,6X14BOLT,6X14
-
9215292152-1422 COLLARCOLLAR
-
9215392153-0864 BOLT,6X20BOLT,6X20
-
92153A92153-1852 BOLT,FLANGED,6X23BOLT,FLANGED,6X23
-
9216192161-0279 DAMPERDAMPER
-
92161A92161-0457 DAMPERDAMPER
-
9217192171-0181 CLAMPCLAMP
-
9221092210-0351 NUT,5MMNUT,5MM
-
92210A92210-1352 NUT,PLATE,6MMNUT,PLATE,6MM
