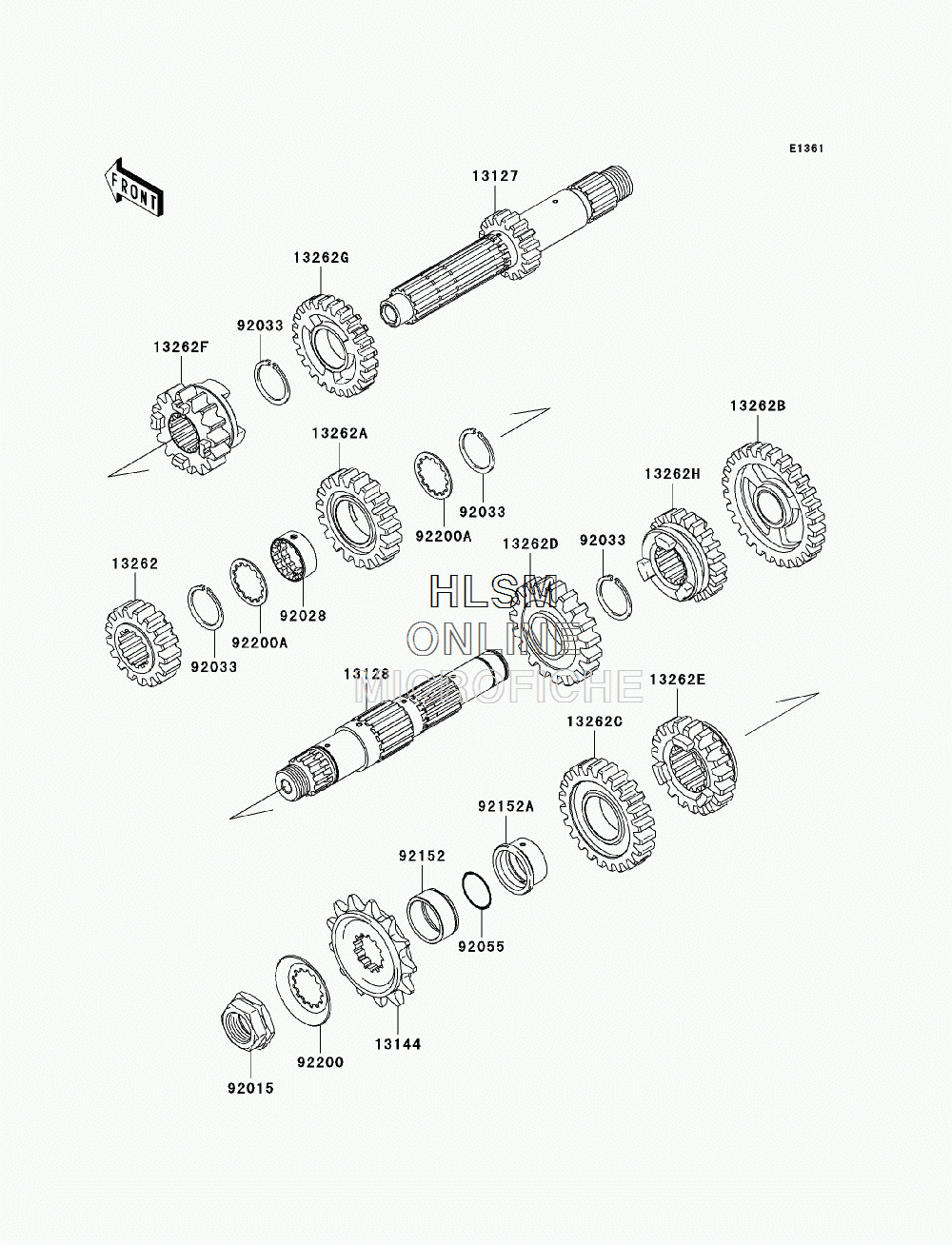

TRANSMISSION для Kawasaki KLX450R (KLX450ACF) - 2012 года выпуска
-
№АртикулНазвание
-
1312713127-0050 SHAFT-TRANSMISSION INPUT,12TSHAFT-TRANSMISSION INPUT,12T
-
1312813128-0036 SHAFT-TRANSMISSION OUTPUTSHAFT-TRANSMISSION OUTPUT
-
1314413144-0041 SPROCKET-OUTPUT,13TSPROCKET-OUTPUT,13T
-
1326213262-0438 GEAR,INPUT 2ND,15TGEAR,INPUT 2ND,15T
-
13262A13262-0440 GEAR,INPUT 4TH,20TGEAR,INPUT 4TH,20T
-
13262B13262-0442 GEAR,OUTPUT LOW,26TGEAR,OUTPUT LOW,26T
-
13262C13262-0443 GEAR,OUTPUT 2ND,23TGEAR,OUTPUT 2ND,23T
-
13262D13262-0444 GEAR,OUTPUT 3RD,19TGEAR,OUTPUT 3RD,19T
-
13262E13262-0445 GEAR,OUTPUT 4TH,19TGEAR,OUTPUT 4TH,19T
-
13262F13262-0567 GEAR,INPUT 3RD,16TGEAR,INPUT 3RD,16T
-
13262G13262-0569 GEAR,INPUT 5TH,21TGEAR,INPUT 5TH,21T
-
13262H13262-0570 GEAR,OUTPUT 5TH,17TGEAR,OUTPUT 5TH,17T
-
9201592015-1963 NUT,20MMNUT,20MM
-
9202892028-1857 BUSHING,INPUT TOP GEARBUSHING,INPUT TOP GEAR
-
9203392033-1172 RING-SNAP,25MMRING-SNAP,25MM
-
9205592055-1293 RING-O,21.5X1.5RING-O,21.5X1.5
-
9215292152-0150 COLLAR,25X30X13.2COLLAR,25X30X13.2
-
92152A92152-0540 COLLARCOLLAR
-
9220092200-0390 WASHERWASHER
-
92200A92200-1389 WASHERWASHER
