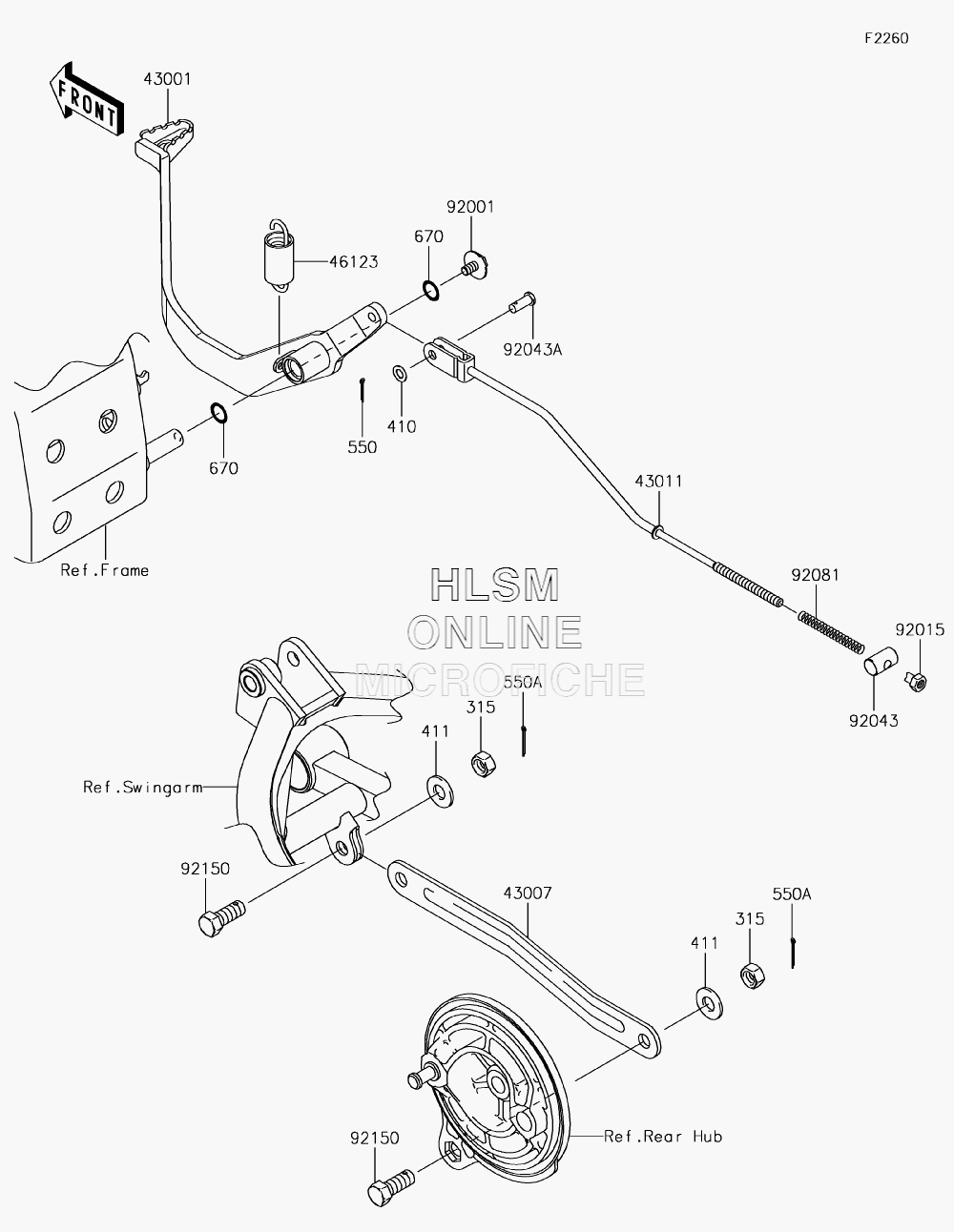

BRAKE PEDAL для Kawasaki KLX110 (KLX110CHF) - 2017 года выпуска
-
№АртикулНазвание
-
315315BA1000 NUT-HEX-FINE, 10MMNUT-HEX-FINE, 10MM
-
410410AA0600 WASHER-PLAIN-SMALLWASHER-PLAIN-SMALL
-
411411AA1000 WASHER-PLAIN, 10MMWASHER-PLAIN, 10MM
-
4300143001-0122 LEVER-BRAKE, PEDALLEVER-BRAKE, PEDAL
-
4300743007-0015 ROD-TORQUEROD-TORQUE
-
4301143011-0010 ROD-BRAKEROD-BRAKE
-
4612346123-1060 SPRING-COMP, BRAKE PEDAL RETURNSPRING-COMP, BRAKE PEDAL RETURN
-
550550AA2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
550A550AA2020 PIN-COTTER, 2.0X20PIN-COTTER, 2.0X20
-
670670B2012 O RING, 12MMO RING, 12MM
-
9200192001-1034 BOLT, FLANGED, 6X10BOLT, FLANGED, 6X10
-
9201592015-042 NUT, BRAKE RODNUT, BRAKE ROD
-
9204392043-0147 PIN, BRAKE RODPIN, BRAKE ROD
-
92043A92043-1542 PIN, 6X12.8PIN, 6X12.8
-
9208192081-1688 SPRING, BRAKE RODSPRING, BRAKE ROD
-
9215092150-1873 BOLT, 10X25BOLT, 10X25
