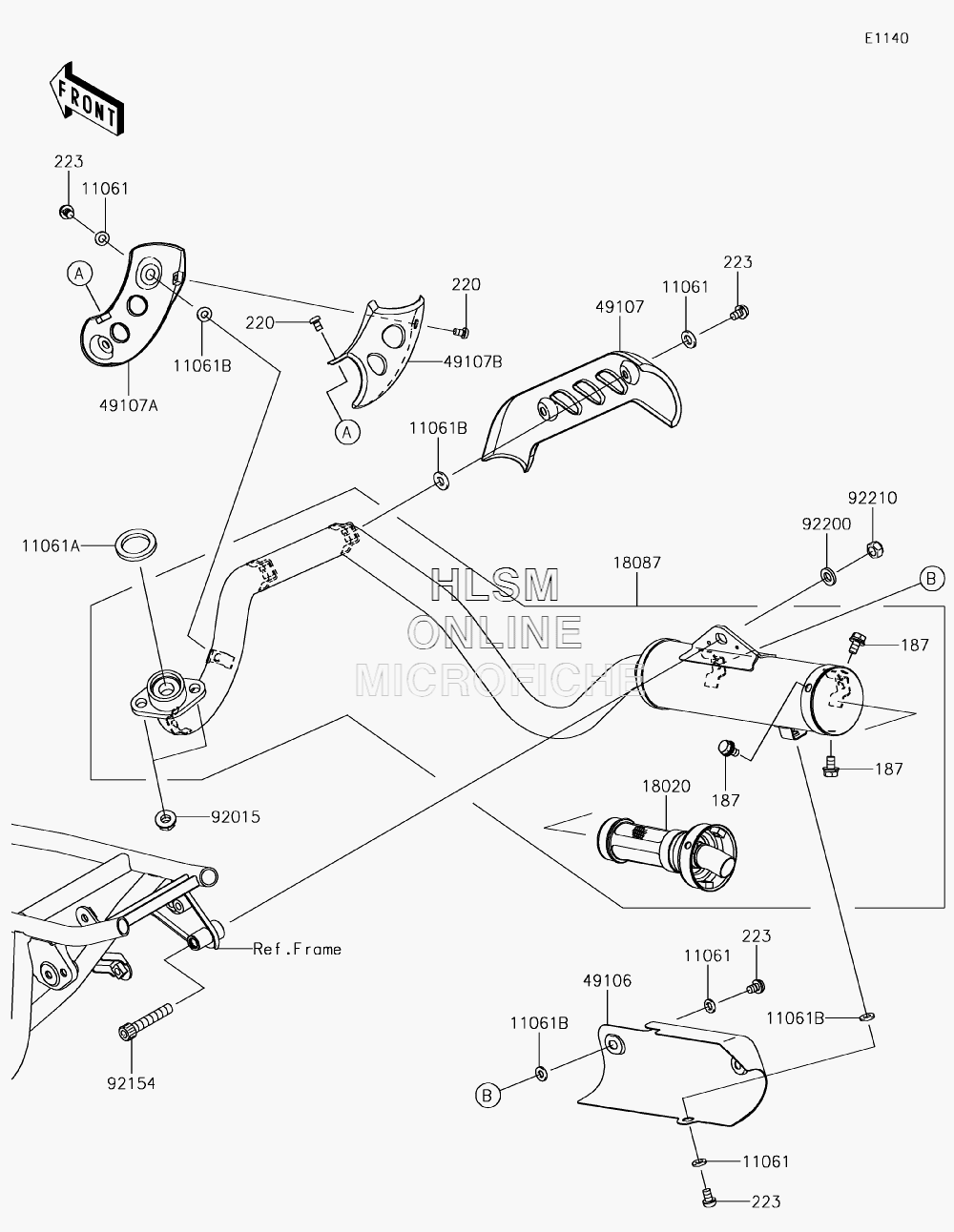

MUFFLER(S) для Kawasaki KLX110 (KLX110CHF) - 2017 года выпуска
-
№АртикулНазвание
-
1106111061-0372 GASKET, 6.2X11.5X1.5GASKET, 6.2X11.5X1.5
-
11061A11061-1112 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
11061B11061-1148 GASKET, 5.8X12X1.5GASKET, 5.8X12X1.5
-
1802018020-0084 BAFFLEBAFFLE
-
1808718087-0266 MUFFLERMUFFLER
-
187187AA0612 BOLT-UPSET-WSP, 6X12BOLT-UPSET-WSP, 6X12
-
220220AB0508 SCREW-PAN-CROS, 5X8SCREW-PAN-CROS, 5X8
-
223223AB0610 SCREW-PAN-WS-CROS, 6X10SCREW-PAN-WS-CROS, 6X10
-
4910649106-0094 COVER-MUFFLERCOVER-MUFFLER
-
4910749107-1213 COVER-EXHAUST PIPECOVER-EXHAUST PIPE
-
49107A49107-1217 COVER-EXHAUST PIPECOVER-EXHAUST PIPE
-
49107B49107-1221 COVER-EXHAUST PIPECOVER-EXHAUST PIPE
-
9201592015-1402 NUT, 8MMNUT, 8MM
-
9215492154-0361 BOLT, SOCKET, 8X45BOLT, SOCKET, 8X45
-
9220092200-0449 WASHER, 8.1X15X2.3WASHER, 8.1X15X2.3
-
9221092210-0606 NUT, LOCK, 8MMNUT, LOCK, 8MM
