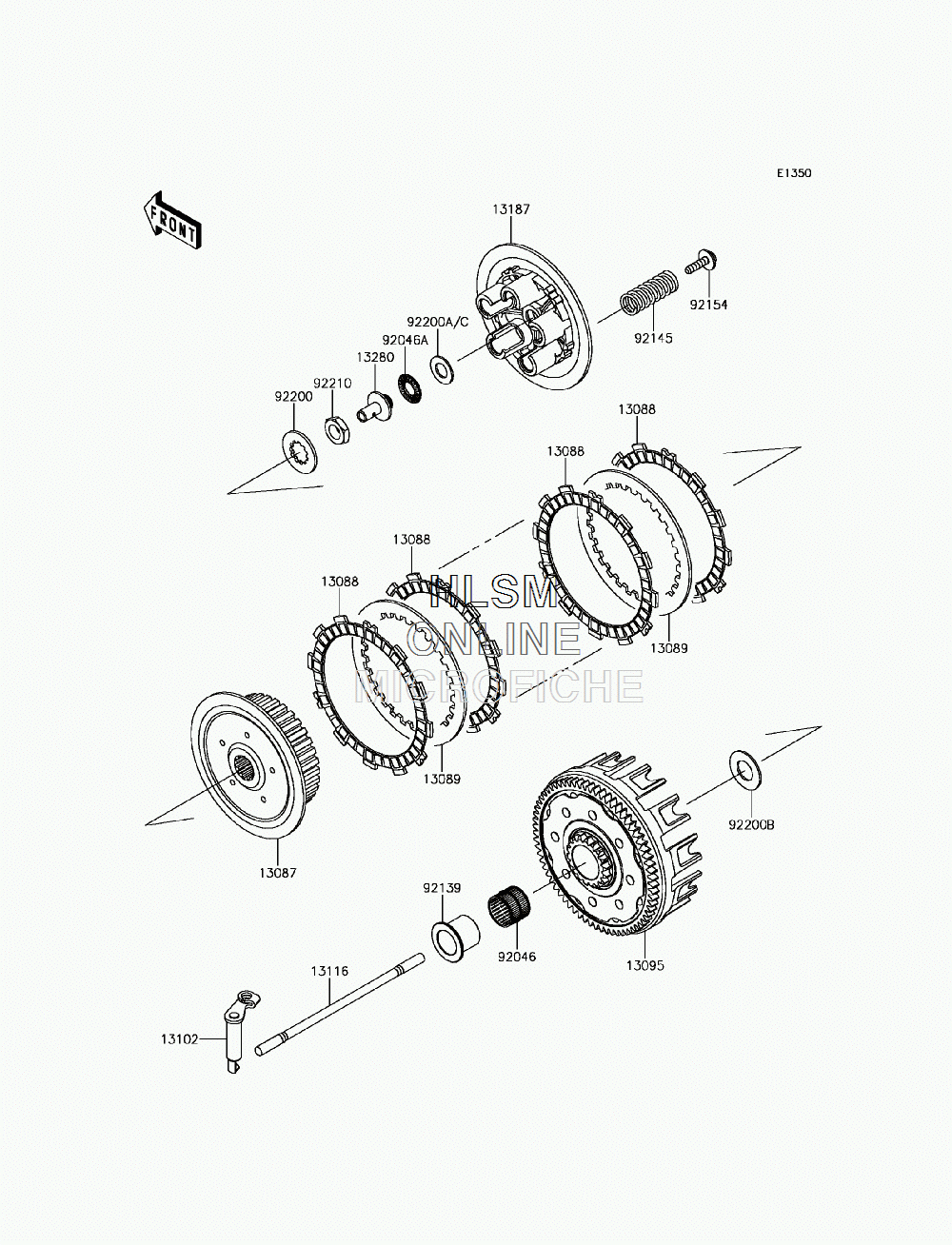

CLUTCH для Kawasaki KX250F (KX252AHF) - 2017 года выпуска
-
№АртикулНазвание
-
1308713087-0017 HUB-CLUTCHHUB-CLUTCH
-
1308813088-0018 PLATE-FRICTIONPLATE-FRICTION
-
1308913089-0005 PLATE-CLUTCH, T=1.6PLATE-CLUTCH, T=1.6
-
1309513095-0107 HOUSING-COMP-CLUTCHHOUSING-COMP-CLUTCH
-
1310213102-0050 RELEASE-COMP-CLUTCHRELEASE-COMP-CLUTCH
-
1311613116-0727 ROD-PUSHROD-PUSH
-
1318713187-1089 PLATE-CLUTCH OPERATINGPLATE-CLUTCH OPERATING
-
1328013280-0339 HOLDERHOLDER
-
9204692046-0016 BEARING-NEEDLE, WRS273124ABEARING-NEEDLE, WRS273124A
-
92046A92046-1190 BEARING-NEEDLE, FNTA-1326BEARING-NEEDLE, FNTA-1326
-
9213992139-0014 BUSHINGBUSHING
-
9214592145-0351 SPRING, K=10.7N/MMSPRING, K=10.7N/MM
-
9215492154-0180 BOLT, 6X25BOLT, 6X25
-
9220092200-0027 WASHER, 21.6X38X2.5WASHER, 21.6X38X2.5
-
92200A92200-0045 WASHER, 13.4X25X1.0WASHER, 13.4X25X1.0
-
92200B92200-0098 WASHER, 22.3X43X2WASHER, 22.3X43X2
-
92200C92200-1548 WASHER, 13.4X25.0X1.5WASHER, 13.4X25.0X1.5
-
9221092210-1207 NUT, 16MMNUT, 16MM
