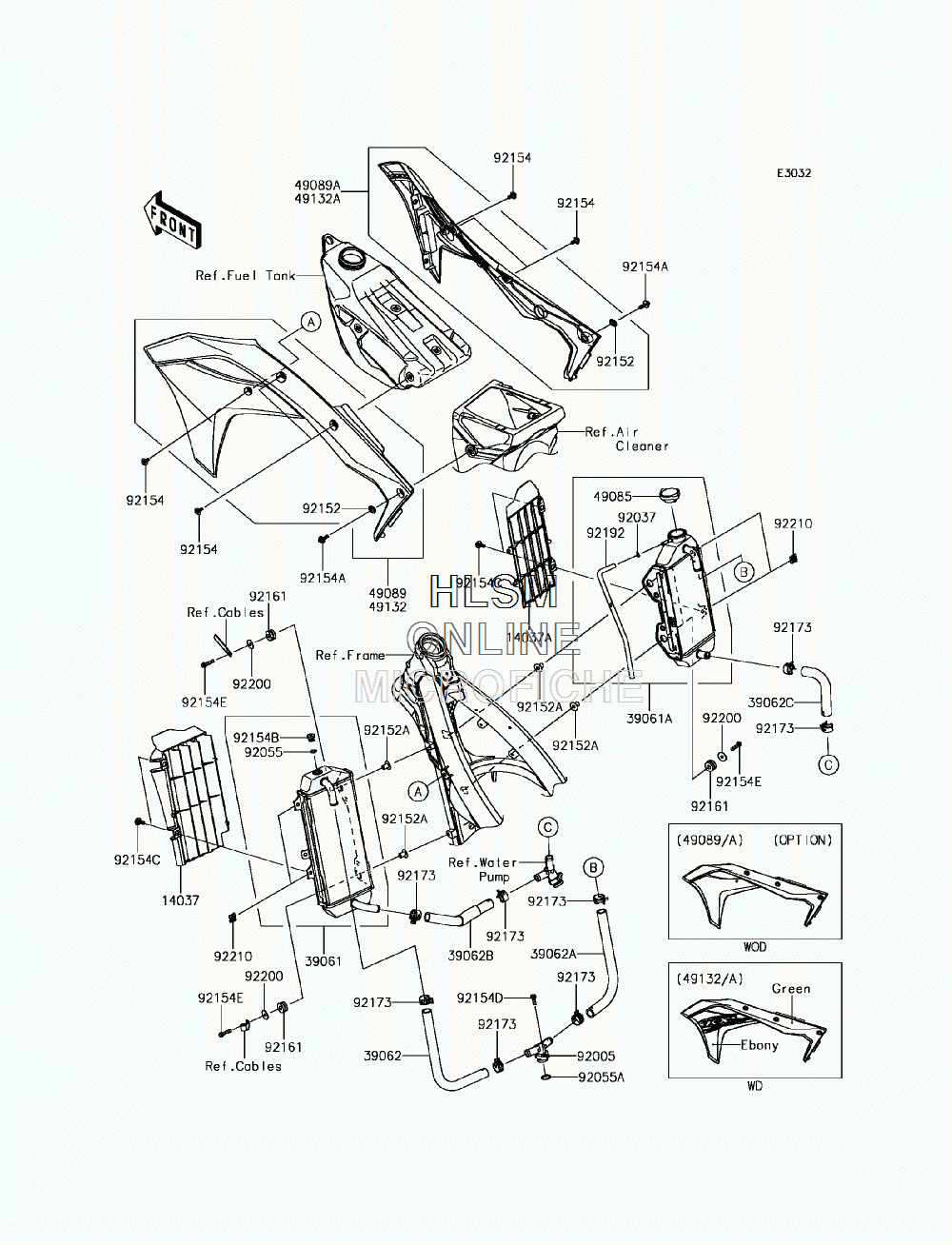

RADIATOR для Kawasaki KX250F (KX252AHF) - 2017 года выпуска
-
№АртикулНазвание
-
1403714037-0775-6C SCREEN, LEFT HAND, (EBONY) (FOR 777)SCREEN, LEFT HAND, (EBONY) (FOR 777)
-
14037A14037-0776-6C SCREEN, RIGHT HAND, (EBONY) (FOR 777)SCREEN, RIGHT HAND, (EBONY) (FOR 777)
-
3906139061-0721 RADIATOR-ASSY, LEFT HANDRADIATOR-ASSY, LEFT HAND
-
39061A39061-0722 RADIATOR-ASSY, RIGHT HANDRADIATOR-ASSY, RIGHT HAND
-
3906239062-0741 HOSE-COOLING, CYL.HEAD-RAD.(LEFT HAND)HOSE-COOLING, CYL.HEAD-RAD.(LEFT HAND)
-
39062A39062-0742 HOSE-COOLING, CYL.HEAD-RAD.(RIGHT HAND)HOSE-COOLING, CYL.HEAD-RAD.(RIGHT HAND)
-
39062B39062-0743 HOSE-COOLING, RAD.(LEFT HAND)-W/PUMPHOSE-COOLING, RAD.(LEFT HAND)-W/PUMP
-
39062C39062-0744 HOSE-COOLING, RAD.(RIGHT HAND)-W/PUMPHOSE-COOLING, RAD.(RIGHT HAND)-W/PUMP
-
4908549085-0006 CAP-ASSY-PRESSURECAP-ASSY-PRESSURE
-
4908949089-0924-25M SHROUD-ENGINE, LEFT HAND, (L.GREEN/EBONY) (OPTION) (FOR 777)SHROUD-ENGINE, LEFT HAND, (L.GREEN/EBONY) (OPTION) (FOR 777)
-
49089A49089-0925-25M SHROUD-ENGINE, RIGHT HAND, (L.GREEN/EBONY) (OPTION) (FOR 777)SHROUD-ENGINE, RIGHT HAND, (L.GREEN/EBONY) (OPTION) (FOR 777)
-
4913249132-5288-25M SHROUD-ENGINE, LEFT HAND, (L.GREEN/EBONY) (FOR 777)SHROUD-ENGINE, LEFT HAND, (L.GREEN/EBONY) (FOR 777)
-
49132A49132-5289-25M SHROUD-ENGINE, RIGHT HAND, (L.GREEN/EBONY) (FOR 777)SHROUD-ENGINE, RIGHT HAND, (L.GREEN/EBONY) (FOR 777)
-
9200592005-0838 FITTING, CYLINDER HEADFITTING, CYLINDER HEAD
-
9203792037-1610 CLAMPCLAMP
-
9205592055-0866 RING-ORING-O
-
92055A92055-1308 RING-O, 18.8X2.4RING-O, 18.8X2.4
-
9215292152-0052 COLLARCOLLAR
-
92152A92152-2275 COLLARCOLLAR
-
9215492154-0546 BOLT, FLANGED, 6X9BOLT, FLANGED, 6X9
-
92154A92154-1268 BOLT, FLANGED, 6X20BOLT, FLANGED, 6X20
-
92154B92154-1738 BOLT, AIR VENTBOLT, AIR VENT
-
92154C92154-1739 BOLT, FLANGED, 6X28BOLT, FLANGED, 6X28
-
92154D92154-1927 BOLT, FLANGED, 6X18BOLT, FLANGED, 6X18
-
92154E92154-1928 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
9216192161-1781 DAMPERDAMPER
-
9217392173-1561 CLAMP, 19.9MMCLAMP, 19.9MM
-
9219292192-1490 TUBE, L=830TUBE, L=830
-
9220092200-2108 WASHER, 6.5X22X1.2WASHER, 6.5X22X1.2
-
9221092210-0867 NUTNUT
