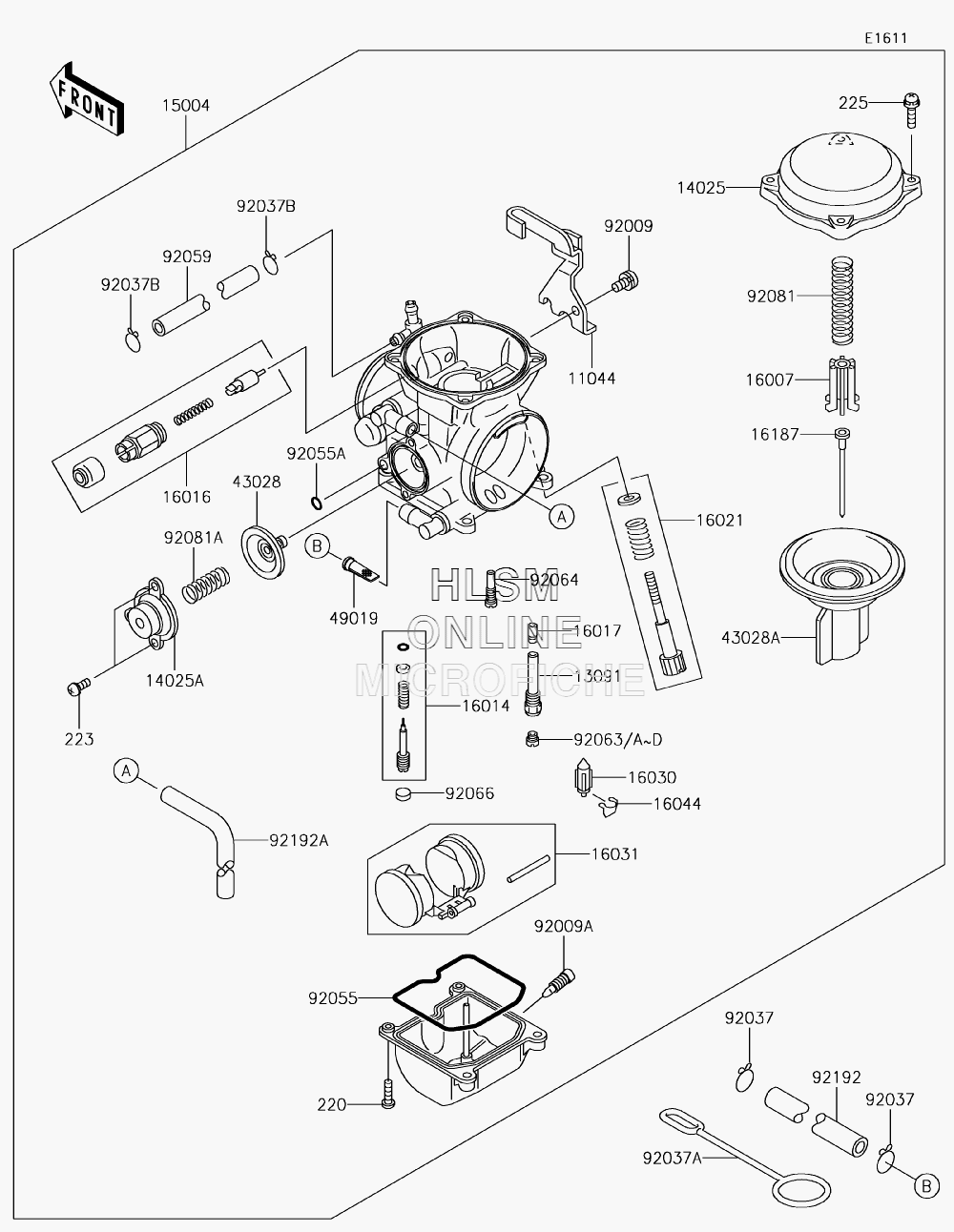

CARBURETOR (EXCEPT CALIF.) для Kawasaki KLR650 (KL650EJF) - 2018 года выпуска
-
№АртикулНазвание
-
1104411044-1353 BRACKET, THROTTLE CABLEBRACKET, THROTTLE CABLE
-
1309113091-1425 HOLDER, NEEDLE JETHOLDER, NEEDLE JET
-
1402514025-1890 COVER, MIXING CHAMBERCOVER, MIXING CHAMBER
-
14025A14025-1903 COVER, AIR CUT VALVECOVER, AIR CUT VALVE
-
1500415004-0073 CARBURETOR-ASSY, CVK40CARBURETOR-ASSY, CVK40
-
1600716007-1113 SEAT-SPRING, DIAPHRAGM VALVESEAT-SPRING, DIAPHRAGM VALVE
-
1601416014-1083 SCREW-PILOT AIRSCREW-PILOT AIR
-
1601616016-1087 PLUNGERPLUNGER
-
1601716017-0055 JET-NEEDLE, #6JET-NEEDLE, #6
-
1602116021-1201 SCREW-THROTTLE STOPSCREW-THROTTLE STOP
-
1603016030-1057 VALVE-FLOATVALVE-FLOAT
-
1603116031-1077 FLOATFLOAT
-
1604416044-007 CLAMP, FLOAT VALVECLAMP, FLOAT VALVE
-
1618716187-0275 NEEDLE-JET, N6NJNEEDLE-JET, N6NJ
-
4302843028-0016 DIAPHRAGM, 5.9MM, AIR CUT VALVEDIAPHRAGM, 5.9MM, AIR CUT VALVE
-
43028A43028-1062 DIAPHRAGM, VALVEDIAPHRAGM, VALVE
-
4901949019-1097 FILTER-FUELFILTER-FUEL
-
9200992009-1365 SCREW, 5X10SCREW, 5X10
-
92009A92009-1551 SCREW, DRAIN, 6X0.75SCREW, DRAIN, 6X0.75
-
9203792037-1271 CLAMP, 12.5MMCLAMP, 12.5MM
-
220220AA0414 SCREW-PAN-CROS, 4X14SCREW-PAN-CROS, 4X14
-
223223C0410 SCREW-PAN-WS-CROS, 4X10SCREW-PAN-WS-CROS, 4X10
-
92037A92037-134 CLAMP, OVERFLOW TUBECLAMP, OVERFLOW TUBE
-
92037B92037-1477 CLAMP, TUBECLAMP, TUBE
-
9205592055-1222 RING-O, FLOAT CHAMBERRING-O, FLOAT CHAMBER
-
92055A92055-1245 RING-ORING-O
-
9205992059-1201 TUBE, 5X9X160TUBE, 5X9X160
-
9206392063-1013 JET-MAIN, #140 (OPTION)JET-MAIN, #140 (OPTION)
-
92063A92063-1016 JET-MAIN, #142JET-MAIN, #142
-
92063B92063-1017 JET-MAIN, #145JET-MAIN, #145
-
92063C92063-1324 JET-MAIN, #148 (OPTION)JET-MAIN, #148 (OPTION)
-
92063D92063-1330 JET-MAIN, #150 (OPTION)JET-MAIN, #150 (OPTION)
-
9206492064-1108 JET-PILOT, #40JET-PILOT, #40
-
9206692066-1051 PLUG, PILOT AIR SCREW, 6.9X2PLUG, PILOT AIR SCREW, 6.9X2
-
9208192081-1718 SPRING, DIAPHRAGM VALVESPRING, DIAPHRAGM VALVE
-
92081A92081-1719 SPRING, AIR CUT VALVESPRING, AIR CUT VALVE
-
9219292192-0453 TUBE, FUEL, 6.2X13.2X170TUBE, FUEL, 6.2X13.2X170
-
92192A92192-0589 TUBE, L=360TUBE, L=360
-
225225AB0418 SCREW-PAN-WSP-CROS, 4X18SCREW-PAN-WSP-CROS, 4X18
