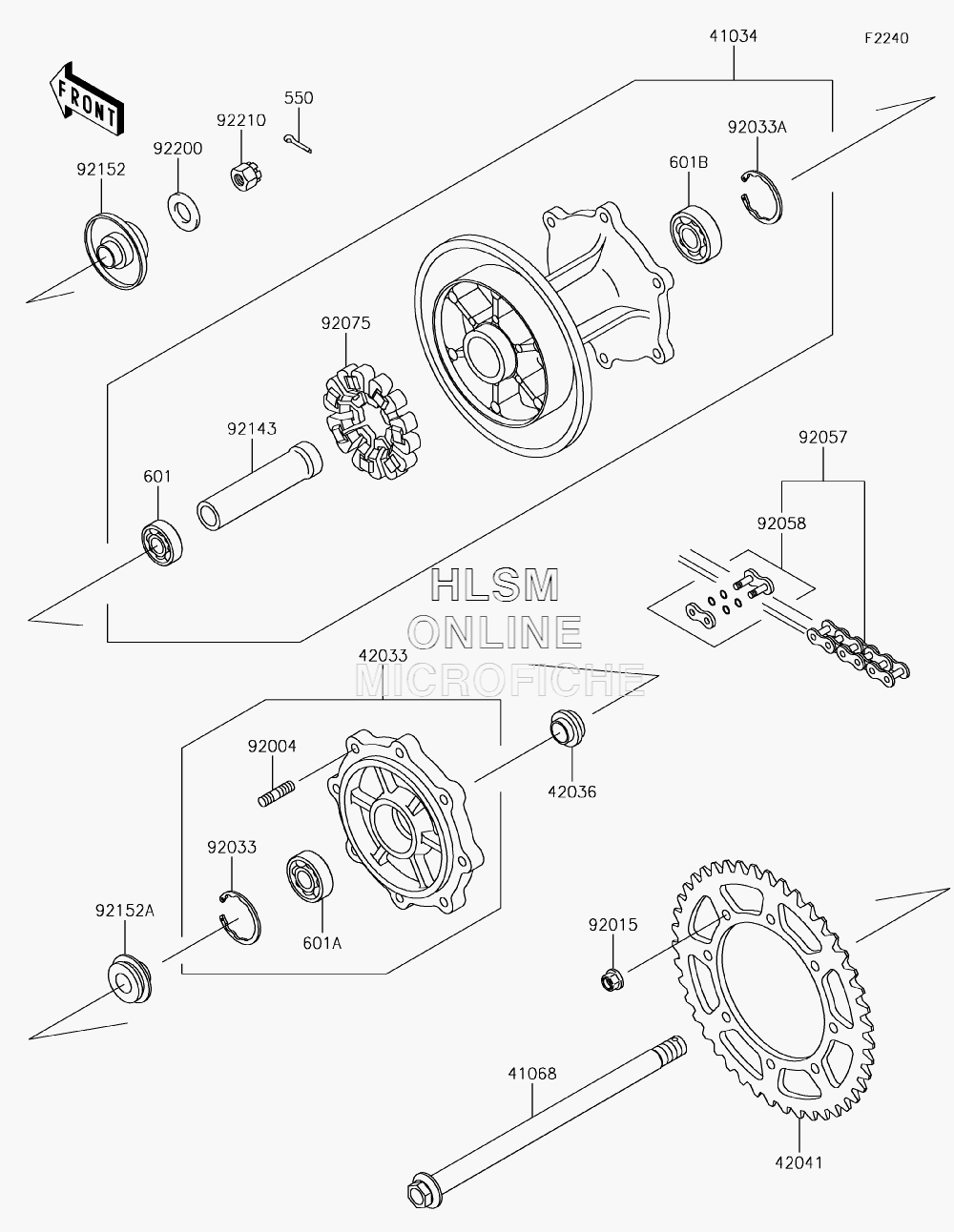

REAR HUB для Kawasaki KLR650 (KL650EJF) - 2018 года выпуска
-
№АртикулНазвание
-
4103441034-0041-21 DRUM-ASSY, REAR BRAKE, (F.BLACK)DRUM-ASSY, REAR BRAKE, (F.BLACK)
-
4106841068-0056 AXLE, REARAXLE, REAR
-
4203342033-1112 COUPLING-ASSY, REAR HUBCOUPLING-ASSY, REAR HUB
-
4203642036-0074 SLEEVESLEEVE
-
4204142041-1260 SPROCKET-HUB, 43TSPROCKET-HUB, 43T
-
550550AA4035 PIN-COTTER, 4.0X35PIN-COTTER, 4.0X35
-
601601B6003G BEARING-BALL, #6003GBEARING-BALL, #6003G
-
601A601B6004UG BEARING-BALL, #6004UGBEARING-BALL, #6004UG
-
601B601B6204UG BEARING-BALL, #6204UGBEARING-BALL, #6204UG
-
9200492004-1150 STUD, 8X16STUD, 8X16
-
9201592015-1432 NUT, 8MMNUT, 8MM
-
9203392033-1041 RING-SNAP, 42MMRING-SNAP, 42MM
-
92033A92033-1042 RING-SNAP, 47MMRING-SNAP, 47MM
-
9205792057-0019 CHAIN, DRIVE, EK520SR-O2X106LCHAIN, DRIVE, EK520SR-O2X106L
-
9205892058-1102 JOINT-CHAIN, DRIVEJOINT-CHAIN, DRIVE
-
9207592075-1068 DAMPER, SHOCK, REAR HUBDAMPER, SHOCK, REAR HUB
-
9214392143-1060 COLLAR, REAR BRAKE DRUM, L=113COLLAR, REAR BRAKE DRUM, L=113
-
9215292152-0851 COLLAR, L=30MMCOLLAR, L=30MM
-
92152A92152-0852 COLLAR, L=17MMCOLLAR, L=17MM
-
9220092200-0563 WASHER, 17.3X32X3.2WASHER, 17.3X32X3.2
-
9221092210-1171 NUT, CASTLE, 16MMNUT, CASTLE, 16MM
