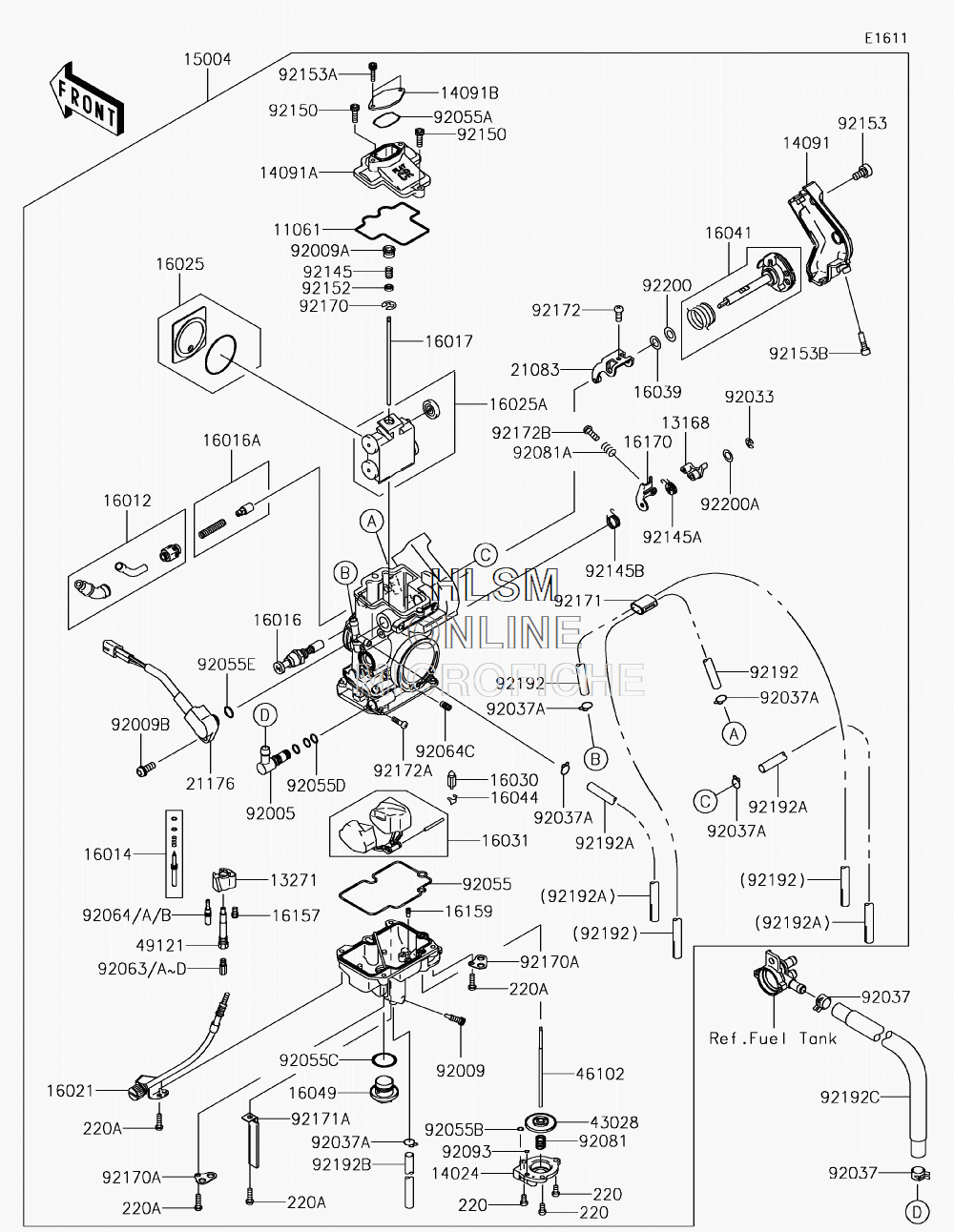

CARBURETOR для Kawasaki KLX450R (AUSTRALIAN) (KLX450AJF) - 2018 года выпуска
-
№АртикулНазвание
-
1106111061-0077 GASKETGASKET
-
1316813168-0051 LEVERLEVER
-
1327113271-0241 PLATEPLATE
-
1402414024-1971 COVERCOVER
-
1409114091-0209 COVERCOVER
-
14091A14091-0587 COVER, TOPCOVER, TOP
-
14091B14091-0588 COVERCOVER
-
1500415004-0052 CARBURETOR-ASSY, FCR-MX40CARBURETOR-ASSY, FCR-MX40
-
1601216012-0002 CAP-STARTER PLUNGERCAP-STARTER PLUNGER
-
1601416014-0004 SCREW-PILOT AIRSCREW-PILOT AIR
-
1601616016-0009 PLUNGERPLUNGER
-
16016A16016-0017 PLUNGERPLUNGER
-
1601716017-0011 JET-NEEDLE, NCVUJET-NEEDLE, NCVU
-
1602116021-0013 SCREW-THROTTLE STOPSCREW-THROTTLE STOP
-
1602516025-0009 VALVE-THROTTLEVALVE-THROTTLE
-
16025A16025-0013 VALVE-THROTTLEVALVE-THROTTLE
-
1603016030-1057 VALVE-FLOATVALVE-FLOAT
-
1603116031-1100 FLOATFLOAT
-
1603916039-0230 WASHERWASHER
-
1604116041-0004 SHAFT-CARBURETORSHAFT-CARBURETOR
-
1604416044-007 CLAMP, FLOAT VALVECLAMP, FLOAT VALVE
-
1604916049-1051 COVER-MAIN JETCOVER-MAIN JET
-
1615716157-1061 JET-STARTER, #55JET-STARTER, #55
-
1615916159-1053 JET-POWER, #50JET-POWER, #50
-
1617016170-0003 LINK-ASSYLINK-ASSY
-
2108321083-0035 ARMARM
-
2117621176-0016 SENSOR, THROTTLESENSOR, THROTTLE
-
220220AA0408 SCREW-PAN-CROS, 4X8SCREW-PAN-CROS, 4X8
-
220A220AA0414 SCREW-PAN-CROS, 4X14SCREW-PAN-CROS, 4X14
-
4302843028-0006 DIAPHRAGMDIAPHRAGM
-
4610246102-0033 RODROD
-
4912149121-0001 NOZZLE-MAINNOZZLE-MAIN
-
9200592005-0016 FITTINGFITTING
-
9200992009-1551 SCREW, DRAIN, 6X0.75SCREW, DRAIN, 6X0.75
-
92009A92009-1876 SCREWSCREW
-
92009B92009-1981 SCREW, THROTTLE SENSORSCREW, THROTTLE SENSOR
-
9203392033-0018 RING-SNAPRING-SNAP
-
9203792037-1181 CLAMP, HOSE CLIPCLAMP, HOSE CLIP
-
92037A92037-1396 CLAMP, TUBECLAMP, TUBE
-
9205592055-0066 RING-O, FLOAT CHAMBERRING-O, FLOAT CHAMBER
-
92055A92055-0109 RING-ORING-O
-
92055B92055-1004 RING-ORING-O
-
92055C92055-1167 RING-O, MAIN JET COVERRING-O, MAIN JET COVER
-
92055D92055-1223 RING-ORING-O
-
92055E92055-1671 RING-ORING-O
-
9206392063-1360 JET-MAIN, #140 (OPTION)JET-MAIN, #140 (OPTION)
-
92063A92063-1361 JET-MAIN, #142 (OPTION)JET-MAIN, #142 (OPTION)
-
92063B92063-1362 JET-MAIN, #145JET-MAIN, #145
-
92063C92063-1363 JET-MAIN, #148 (OPTION)JET-MAIN, #148 (OPTION)
-
92063D92063-1364 JET-MAIN, #150 (OPTION)JET-MAIN, #150 (OPTION)
-
9206492064-1141 JET-PILOT, #42 (OPTION)JET-PILOT, #42 (OPTION)
-
92064A92064-1142 JET-PILOT, #45JET-PILOT, #45
-
92064B92064-1143 JET-PILOT, #48 (OPTION)JET-PILOT, #48 (OPTION)
-
92064C92064-1160 JET-PILOT, #100JET-PILOT, #100
-
9208192081-1092 SPRING, DIAPHRAGMSPRING, DIAPHRAGM
-
92081A92081-1620 SPRINGSPRING
-
9209392093-1046 SEAL, U-RINGSEAL, U-RING
-
9214592145-0164 SPRINGSPRING
-
92145A92145-0166 SPRINGSPRING
-
92145B92145-0167 SPRINGSPRING
-
9215092150-1426 BOLT, SOCKET, 4X12BOLT, SOCKET, 4X12
-
9215292152-0141 COLLARCOLLAR
-
9215392153-0639 BOLTBOLT
-
92153A92153-1513 BOLTBOLT
-
92153B92153-1896 BOLTBOLT
-
9217092170-1204 CLAMP, JET NEEDLECLAMP, JET NEEDLE
-
92170A92170-1582 CLAMPCLAMP
-
9217192171-0246 CLAMPCLAMP
-
92171A92171-1684 CLAMPCLAMP
-
9217292172-0127 SCREWSCREW
-
92172A92172-0128 SCREWSCREW
-
92172B92172-0129 SCREWSCREW
-
9219292192-0083 TUBETUBE
-
92192A92192-0084 TUBETUBE
-
92192B92192-0085 TUBETUBE
-
92192C92192-0413 TUBE, 7X14X300TUBE, 7X14X300
-
9220092200-0107 WASHERWASHER
-
92200A92200-1434 WASHER, LINK ARM, STAINLESSWASHER, LINK ARM, STAINLESS
