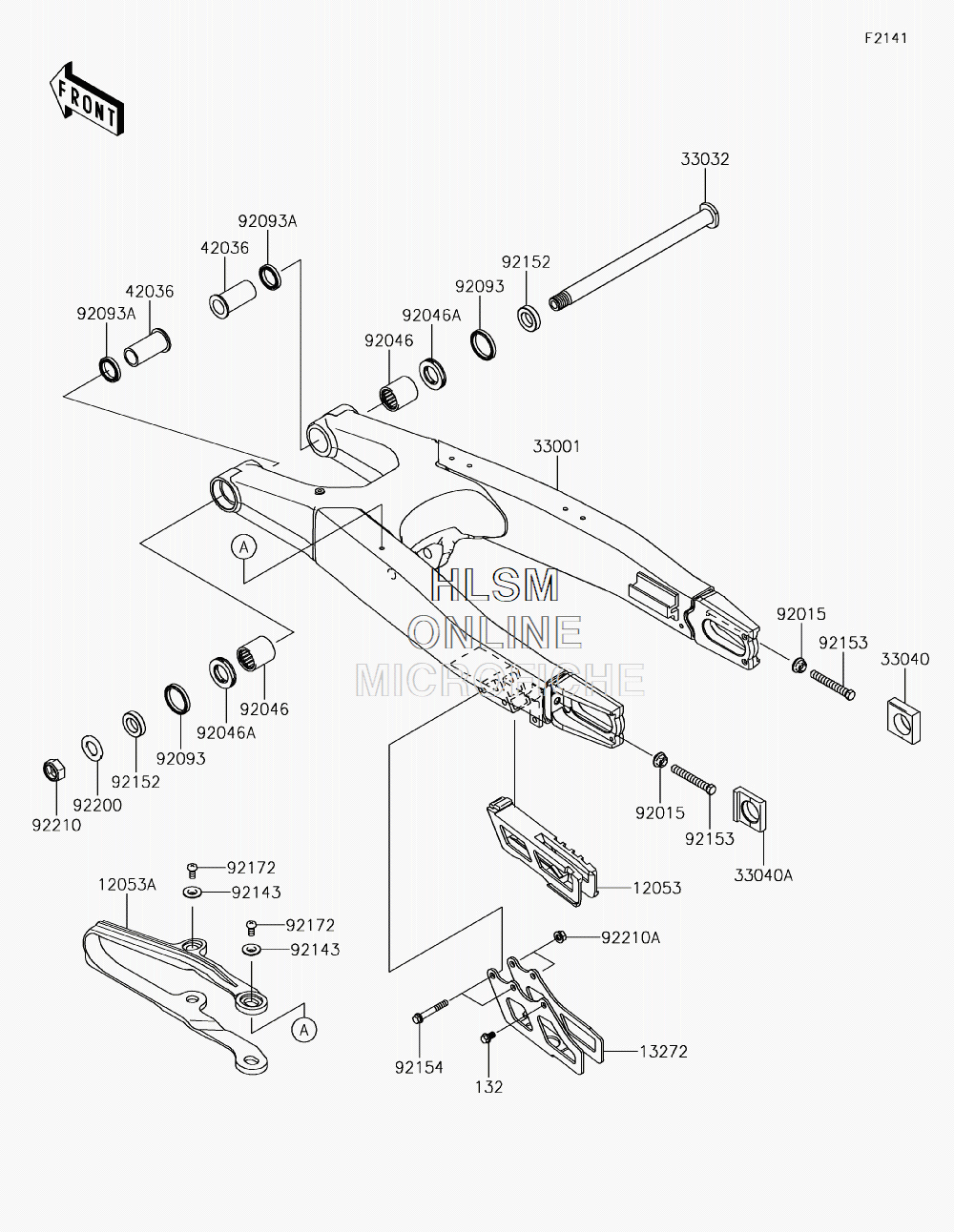

SUSPENSION - SWINGARM для Kawasaki KLX450R (AUSTRALIAN) (KLX450AJF) - 2018 года выпуска
-
№АртикулНазвание
-
1205312053-0125 GUIDE-CHAINGUIDE-CHAIN
-
12053A12053-0192 GUIDE-CHAIN, HARDNESS UPGUIDE-CHAIN, HARDNESS UP
-
132132BA0610 BOLT-FLANGED-SMALL, 6X10BOLT-FLANGED-SMALL, 6X10
-
1327213272-1169 PLATE, CHAIN GUIDEPLATE, CHAIN GUIDE
-
3300133001-0645 ARM-COMP-SWINGARM-COMP-SWING
-
3303233032-0012 SHAFT-SWING ARMSHAFT-SWING ARM
-
3304033040-0020 ADJUSTER-CHAIN, RIGHT HANDADJUSTER-CHAIN, RIGHT HAND
-
33040A33040-0075 ADJUSTER-CHAIN, LEFT HANDADJUSTER-CHAIN, LEFT HAND
-
4203642036-0019 SLEEVE, SWING ARM, L=47.5SLEEVE, SWING ARM, L=47.5
-
9201592015-1014 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
9204692046-1174 BEARING-NEEDLE, TA2230ZBEARING-NEEDLE, TA2230Z
-
92046A92046-1240 BEARING-NEEDLE, NTBR22356E01BEARING-NEEDLE, NTBR22356E01
-
9209392093-1434 SEAL, SDO29X35X4.5SEAL, SDO29X35X4.5
-
92093A92093-1435 SEAL, SDO22X29X5SEAL, SDO22X29X5
-
9214392143-1676 COLLARCOLLAR
-
9215292152-0292 COLLAR, 17.1X29X6COLLAR, 17.1X29X6
-
9215392153-0620 BOLT, 8X56BOLT, 8X56
-
9215492154-0511 BOLT, FLANGED, 6X42BOLT, FLANGED, 6X42
-
9217292172-0119 SCREW, 5X8SCREW, 5X8
-
9220092200-0285 WASHER, 17.2X30X2.3WASHER, 17.2X30X2.3
-
9221092210-0285 NUT, LOCK, 16MMNUT, LOCK, 16MM
-
92210A92210-0630 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
