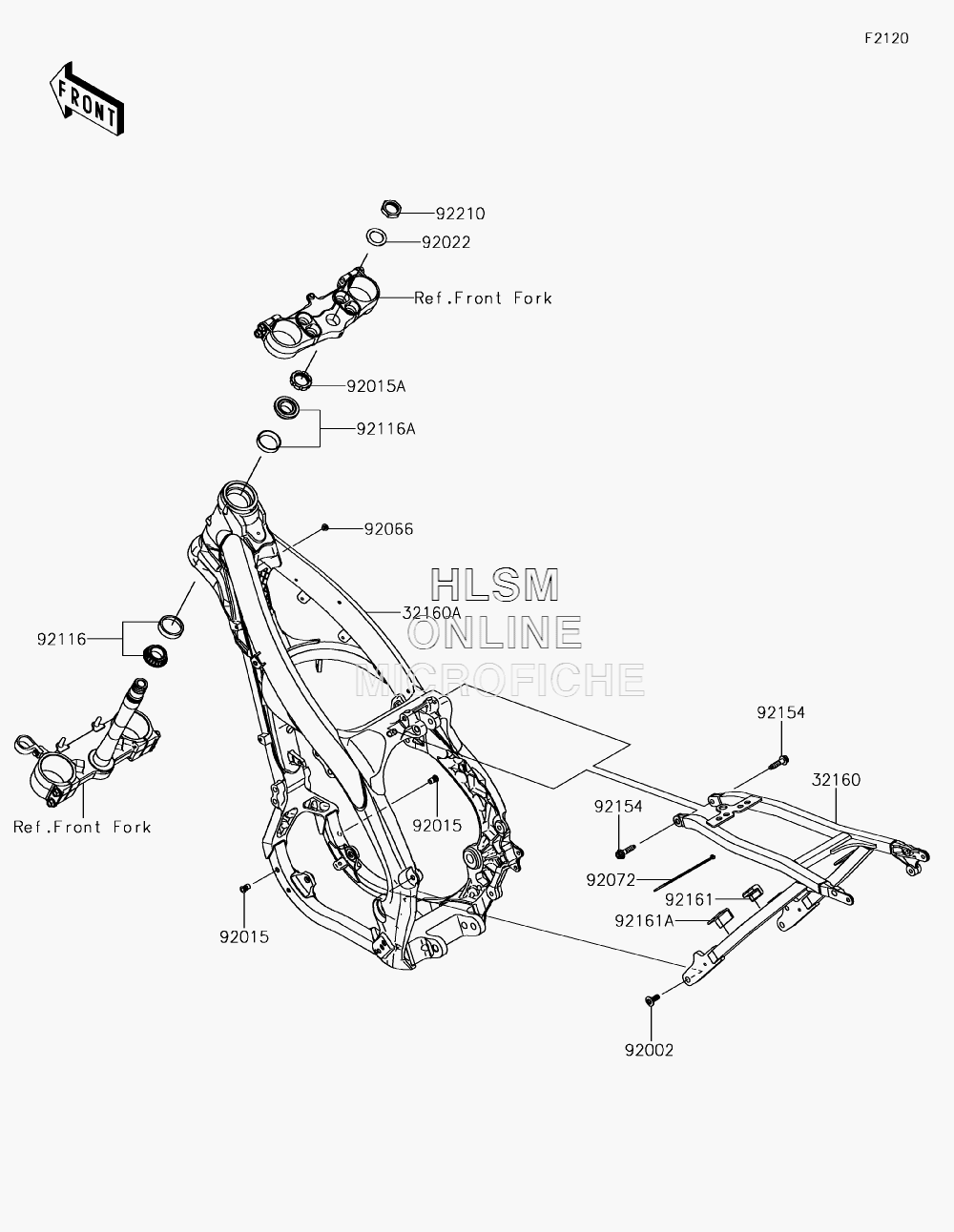

FRAME для Kawasaki KX250F (KX252AKF) - 2019 года выпуска
-
№АртикулНазвание
-
3216032160-0779 FRAME-COMP, REARFRAME-COMP, REAR
-
32160A32160-0824 FRAME-COMP, MAINFRAME-COMP, MAIN
-
9200292002-1736 BOLT, SOCKET, 8X20BOLT, SOCKET, 8X20
-
9201592015-1792 NUT, POP, 6MM, L=16.5NUT, POP, 6MM, L=16.5
-
92015A92015-1861 NUT, STEERING STEM, 28MMNUT, STEERING STEM, 28MM
-
9202292022-250 WASHER, 25X36X2.3WASHER, 25X36X2.3
-
9206692066-1547 PLUGPLUG
-
9207292072-3768 BAND, L=148BAND, L=148
-
9211692116-1069 BEARING-ROLLER, HI-CAP32006JRRSBEARING-ROLLER, HI-CAP32006JRRS
-
92116A92116-1076 BEARING-ROLLER, HI-CAP320/28JRRBEARING-ROLLER, HI-CAP320/28JRR
-
9215492154-0024 BOLT, SOCKET, 8X32BOLT, SOCKET, 8X32
-
9216192161-1882 DAMPERDAMPER
-
92161A92161-1904 DAMPER, L=50DAMPER, L=50
-
9221092210-0066 NUT, 24MMNUT, 24MM
