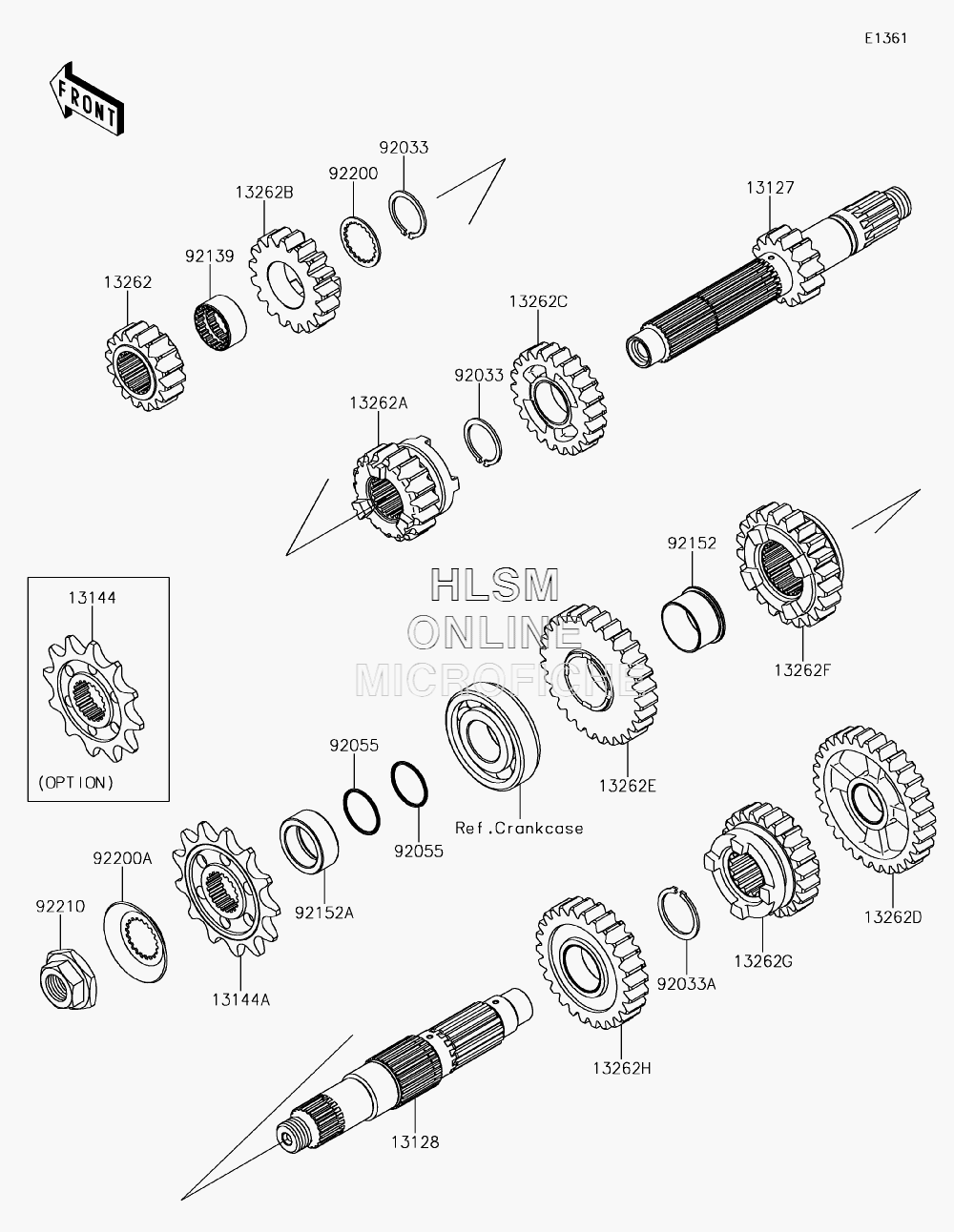

TRANSMISSION для Kawasaki KX250F (KX252AKF) - 2019 года выпуска
-
№АртикулНазвание
-
1312713127-0683 SHAFT-TRANSMISSION INPUT, 14TSHAFT-TRANSMISSION INPUT, 14T
-
1312813128-0703 SHAFT-TRANSMISSION OUTPUTSHAFT-TRANSMISSION OUTPUT
-
1314413144-0036 SPROCKET-OUTPUT, 12T (OPTION)SPROCKET-OUTPUT, 12T (OPTION)
-
13144A13144-0064 SPROCKET-OUTPUT, 13TSPROCKET-OUTPUT, 13T
-
1326213262-0839 GEAR, INPUT 2ND, 16TGEAR, INPUT 2ND, 16T
-
13262A13262-0930 GEAR, INPUT 3RD, 18TGEAR, INPUT 3RD, 18T
-
13262B13262-0931 GEAR, INPUT 4TH, 17TGEAR, INPUT 4TH, 17T
-
13262C13262-0932 GEAR, INPUT 5TH, 22TGEAR, INPUT 5TH, 22T
-
13262D13262-0933 GEAR, OUTPUT LOW, 30TGEAR, OUTPUT LOW, 30T
-
13262E13262-0934 GEAR, OUTPUT 2ND, 28TGEAR, OUTPUT 2ND, 28T
-
13262F13262-0936 GEAR, OUTPUT 4TH, 21TGEAR, OUTPUT 4TH, 21T
-
13262G13262-0937 GEAR, OUTPUT 5TH, 23TGEAR, OUTPUT 5TH, 23T
-
13262H13262-1108 GEAR, OUTPUT 3RD, 26TGEAR, OUTPUT 3RD, 26T
-
9203392033-0057 RING-SNAPRING-SNAP
-
92033A92033-1270 RING-SNAPRING-SNAP
-
9205592055-055 RING-O, 19.5X1.5RING-O, 19.5X1.5
-
9213992139-0241 BUSHINGBUSHING
-
9215292152-1606 COLLARCOLLAR
-
92152A92152-2289 COLLAR, 22X30X11.4COLLAR, 22X30X11.4
-
9220092200-0442 WASHER, 22X26.6X1WASHER, 22X26.6X1
-
92200A92200-0723 WASHER, 20X46WASHER, 20X46
-
9221092210-0721 NUT, 16MMNUT, 16MM
