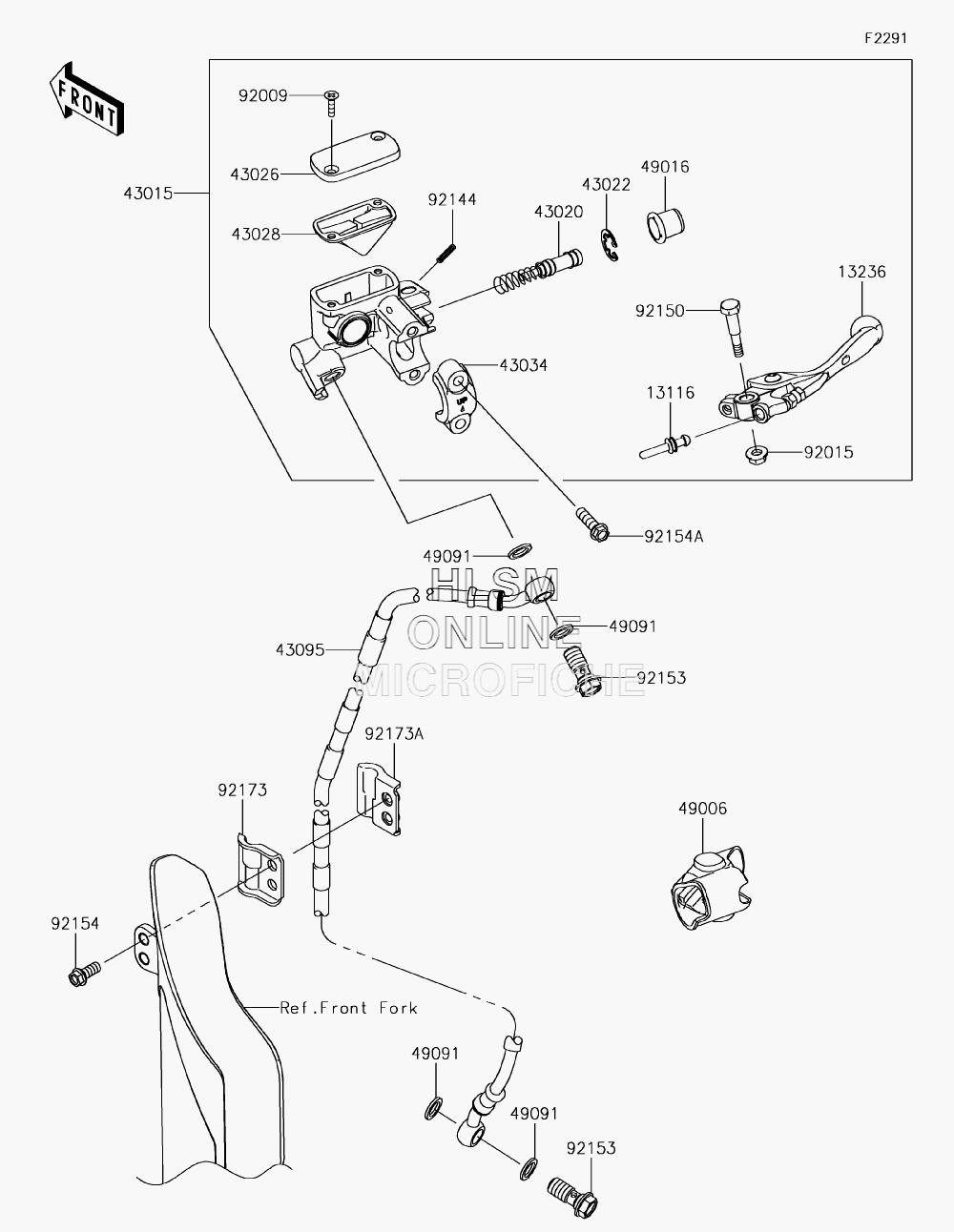

BRAKE - MASTER CYLINDER - FRONT для Kawasaki KX450F (KX450JKF) - 2019 года выпуска
-
№АртикулНазвание
-
1311613116-0744 ROD-PUSHROD-PUSH
-
1323613236-0807 LEVER-COMP, FRONT BRAKELEVER-COMP, FRONT BRAKE
-
4301543015-0695 CYLINDER-ASSY-MASTERCYLINDER-ASSY-MASTER
-
4302043020-0031 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302243022-0004 STOPPER-BRAKE, PISTONSTOPPER-BRAKE, PISTON
-
4302643026-0027 CAP-BRAKE, MASTER CYLINDERCAP-BRAKE, MASTER CYLINDER
-
4302843028-0023 DIAPHRAGMDIAPHRAGM
-
4303443034-1110 HOLDER-BRAKEHOLDER-BRAKE
-
4309543095-1543 HOSE-BRAKE, FRONT, 1334MMHOSE-BRAKE, FRONT, 1334MM
-
4900649006-0606 BOOT, BRAKE LEVERBOOT, BRAKE LEVER
-
4901649016-1044 COVER-SEAL, MASTER CYLINDERCOVER-SEAL, MASTER CYLINDER
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
9200992009-1795 SCREWSCREW
-
9201592015-1528 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9214492144-1725 SPRING, RETURNSPRING, RETURN
-
9215092150-1451 BOLT, LEVER SETBOLT, LEVER SET
-
9215392153-1419 BOLT, OIL, L=23BOLT, OIL, L=23
-
9215492154-2964 BOLT, FLANGED, 6X14BOLT, FLANGED, 6X14
-
92154A92154-3780 BOLT, 6X22BOLT, 6X22
-
9217392173-1177 CLAMP, BRAKE HOSE, LEFT HANDCLAMP, BRAKE HOSE, LEFT HAND
-
92173A92173-1178 CLAMP, BRAKE HOSE, RIGHT HANDCLAMP, BRAKE HOSE, RIGHT HAND
