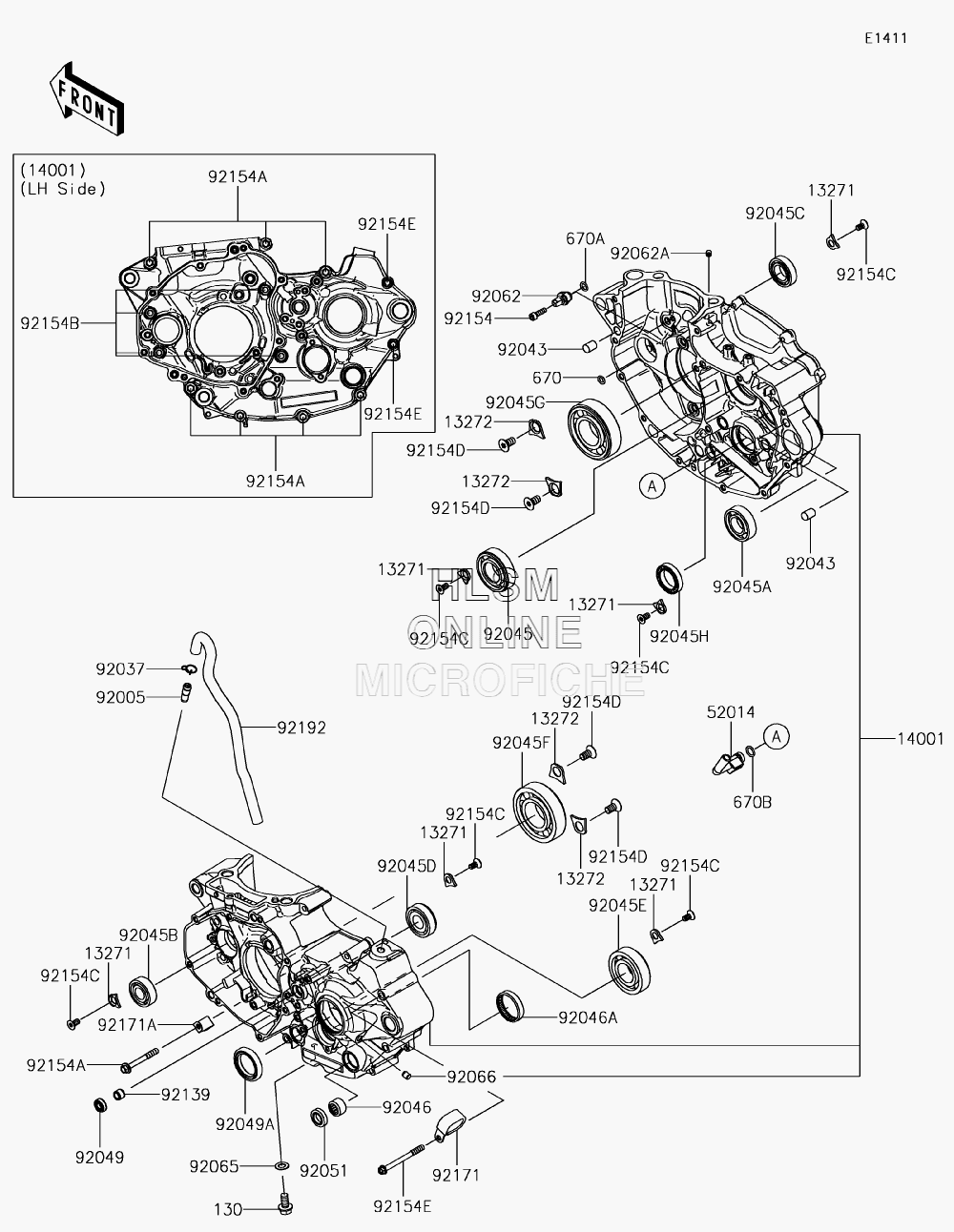

CRANKCASE для Kawasaki KX450F (KX450JKF) - 2019 года выпуска
-
№АртикулНазвание
-
130130AA0816 BOLT-FLANGED, 8X16BOLT-FLANGED, 8X16
-
1327113271-0345 PLATEPLATE
-
1327213272-1941 PLATEPLATE
-
1400114001-0696 SET-CRANKCASESET-CRANKCASE
-
5201452014-0011 ELBOWELBOW
-
670670D1507 O RING, 7MMO RING, 7MM
-
670A670D1508 O RING, 8MMO RING, 8MM
-
670B670D1510 O RING, 10MMO RING, 10MM
-
9200592005-1369 FITTINGFITTING
-
9203792037-1972 CLAMP, TUBECLAMP, TUBE
-
9204392043-1506 PIN, 10X14PIN, 10X14
-
9204592045-0035 BEARING-BALL, 25X52X15BEARING-BALL, 25X52X15
-
92045A92045-0036 BEARING-BALL, 20X42X12BEARING-BALL, 20X42X12
-
92045B92045-0037 BEARING-BALL, 6202SH2C3BEARING-BALL, 6202SH2C3
-
92045C92045-0038 BEARING-BALL, 6904C3UR5BEARING-BALL, 6904C3UR5
-
92045D92045-0057 BEARING-BALL, 3TM-5X0391LUC3BEARING-BALL, 3TM-5X0391LUC3
-
92045E92045-0062 BEARING-BALLBEARING-BALL
-
92045F92045-0132 BEARING-BALLBEARING-BALL
-
92045G92045-0806 BEARING-BALL, 32X72X19BEARING-BALL, 32X72X19
-
92045H92045-1432 BEARING-BALL, 6805JRZBEARING-BALL, 6805JRZ
-
9204692046-1148 BEARING-NEEDLE, HK1312BEARING-NEEDLE, HK1312
-
92046A92046-1221 BEARING-NEEDLE, 7E-HKS33X38X8BEARING-NEEDLE, 7E-HKS33X38X8
-
9204992049-0808 SEAL-OILSEAL-OIL
-
92049A92049-0809 SEAL-OILSEAL-OIL
-
9205192051-005 SEAL-OIL, TB13225.5SEAL-OIL, TB13225.5
-
9206292062-0035 NOZZLENOZZLE
-
92062A92062-0049 NOZZLENOZZLE
-
9206592065-023 GASKET, 8.5X16X1GASKET, 8.5X16X1
-
9206692066-1012 PLUG, OIL LINE, 7.2X8PLUG, OIL LINE, 7.2X8
-
9213992139-0907 BUSHINGBUSHING
-
9215492154-0038 BOLT, SOCKET, 5X18BOLT, SOCKET, 5X18
-
92154A92154-0526 BOLT, FLANGED, 6X50BOLT, FLANGED, 6X50
-
92154B92154-0527 BOLT, SOCKET, 7X60BOLT, SOCKET, 7X60
-
92154C92154-1621 BOLT, TORXBOLT, TORX
-
92154D92154-1733 BOLT, TORX, 8X16BOLT, TORX, 8X16
-
92154E92154-2980 BOLT, FLANGED, 6X65BOLT, FLANGED, 6X65
-
9217192171-0594 CLAMPCLAMP
-
92171A92171-0761 CLAMPCLAMP
-
9219292192-1886 TUBE, BREATHERTUBE, BREATHER
