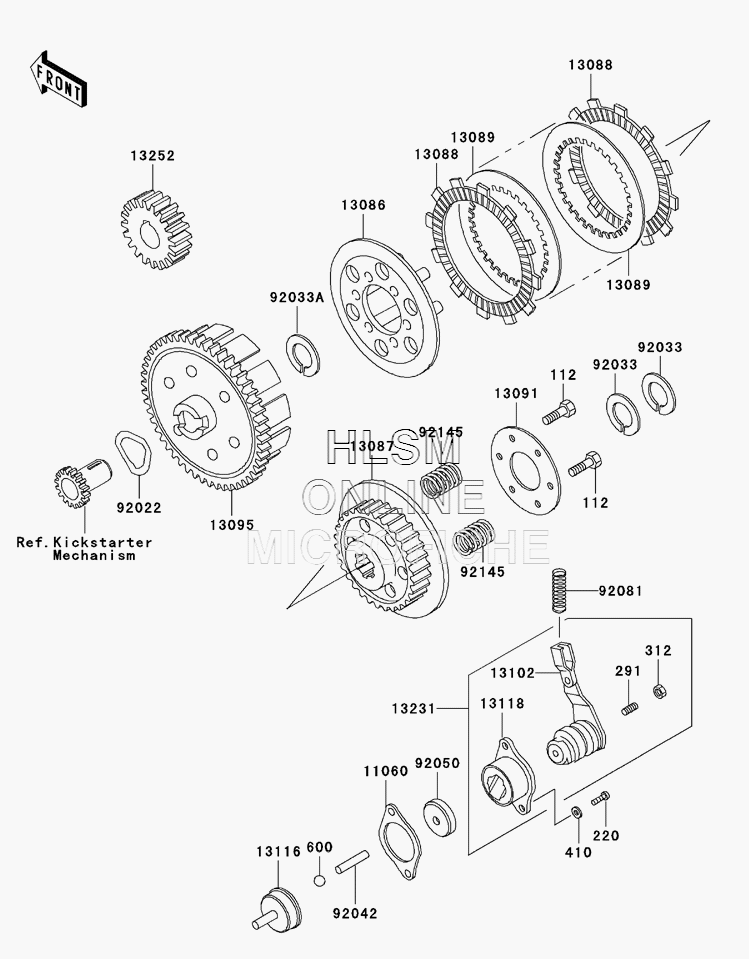

CLUTCH для Kawasaki GTO - 2000 года выпуска
-
№АртикулНазвание
-
112112G0520 BOLT, UPSETBOLT, UPSET
-
220220B0616 SCREW, PAN, CROS, 6X16SCREW, PAN, CROS, 6X16
-
291291H0616 SCREW, SET, 6X16SCREW, SET, 6X16
-
312312B0600 NUT, HEX, 6MMNUT, HEX, 6MM
-
410410B0600 WASHER, PLAIN, SMALL, 6MMWASHER, PLAIN, SMALL, 6MM
-
600600A0900 BALL, STEEL, 9/32"BALL, STEEL, 9/32"
-
1106011060-1197 GASKET, CLUTCH RELEASEGASKET, CLUTCH RELEASE
-
1308613086-1002 WHEEL, CLUTCHWHEEL, CLUTCH
-
1308713087-1020 HUB, CLUTCHHUB, CLUTCH
-
1308813088-1010 PLATE, FRICTIONPLATE, FRICTION
-
1308913089-1009 PLATE, CLUTCH, STEELPLATE, CLUTCH, STEEL
-
1309113091-1115 HOLDER, CLUTCH SPRINGHOLDER, CLUTCH SPRING
-
1309513095-1185 HOUSING, COMP, CLUTCHHOUSING, COMP, CLUTCH
-
1310213102-1016 RELEASE, COMP, CLUTCH, INNERRELEASE, COMP, CLUTCH, INNER
-
1311613116-1135 ROD, PUSH, CLUTCHROD, PUSH, CLUTCH
-
1311813118-1001 RELEASE, CLUTCH OUTERRELEASE, CLUTCH OUTER
-
1323113231-1008 RELEASE, ASSY., CLUTCHRELEASE, ASSY., CLUTCH
-
1325213252-1053 GEAR, PRIMARY HELICALGEAR, PRIMARY HELICAL
-
9202292022-1213 WASHER, WAVE, 26.4X34.2X0.3WASHER, WAVE, 26.4X34.2X0.3
-
9203392033-1060 RING, SNAP, 17MMRING, SNAP, 17MM
-
92033A92033-1065 RING, SNAP, 23.5MMRING, SNAP, 23.5MM
-
9204292042-043 PIN, DOWEL, 7X20PIN, DOWEL, 7X20
-
9205092050-071 SEAL, OILSEAL, OIL
-
9208192081-096 SPRING, CLUTCH RELEASESPRING, CLUTCH RELEASE
-
9214592145-1321 SPRING, CLUTCHSPRING, CLUTCH
