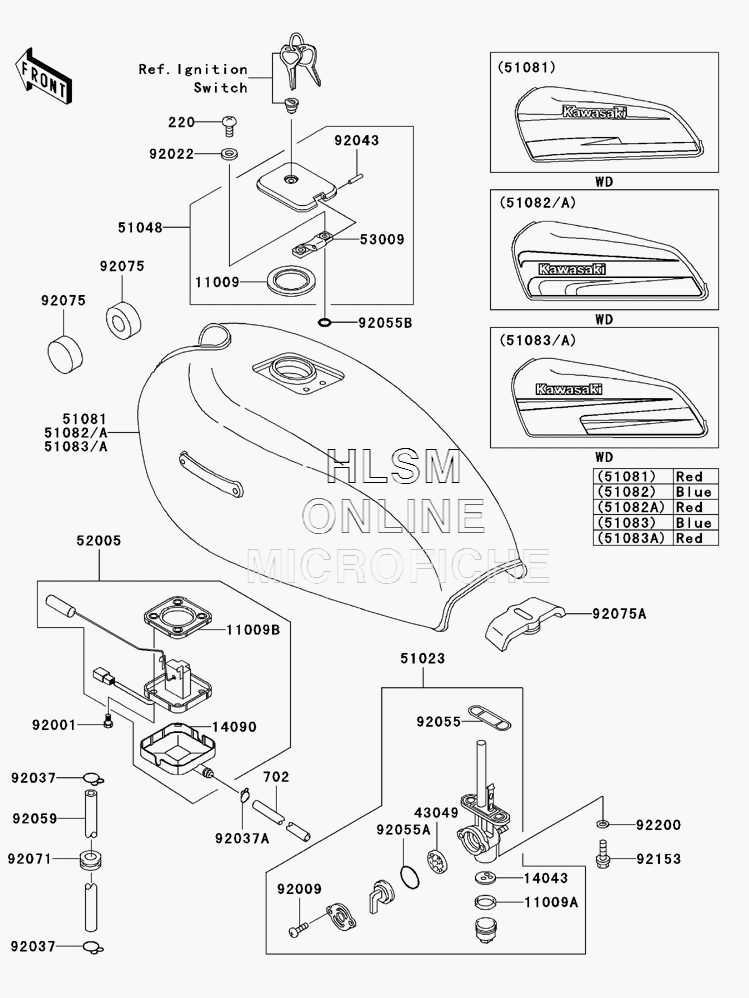

FUEL TANK для Kawasaki GTO - 2000 года выпуска
-
№АртикулНазвание
-
220220B0510 SCREW, PAN, CROSSCREW, PAN, CROS
-
702702A07280 TUBE, RUBBER, 7X10X280TUBE, RUBBER, 7X10X280
-
1100911009-1051 GASKET, FUEL TANK CAPGASKET, FUEL TANK CAP
-
11009A11009-1552 GASKET, FUEL TAPGASKET, FUEL TAP
-
11009B11009-1656 GASKET, FUEL GAUGEGASKET, FUEL GAUGE
-
1404314043-1059 FILTER, FUEL TAPFILTER, FUEL TAP
-
1409014090-1624 COVER, FUEL GAUGECOVER, FUEL GAUGE
-
4304943049-1018 PACKING, FUEL TAPPACKING, FUEL TAP
-
5102351023-1051 TAP, ASSY., FUELTAP, ASSY., FUEL
-
5104851048-1017 CAP, ASSY., TANKCAP, ASSY., TANK
-
5108151081-5264-FT TANK, COMP, FUEL (F.RED)TANK, COMP, FUEL (F.RED)
-
5200552005-1029 GAUGE, FUELGAUGE, FUEL
-
5300953009-1009 HINGEHINGE
-
9200192001-1705 BOLT, FUEL GAUGEBOLT, FUEL GAUGE
-
9200992009-1123 SCREW, 3X5SCREW, 3X5
-
9202292022-1977 WASHER, 5.1X10X1.0WASHER, 5.1X10X1.0
-
9203792037-010 CLAMP, TUBECLAMP, TUBE
-
92037A92037-147 CLAMP, TUBECLAMP, TUBE
-
9204392043-127 PIN, CAP HINGEPIN, CAP HINGE
-
9205592055-1112 O-RING, FUEL TAP PACKINGO-RING, FUEL TAP PACKING
-
92055A92055-1113 O-RING, FUEL TAP, 1.9X16.8O-RING, FUEL TAP, 1.9X16.8
-
92055B92055-1552 O-RING, ID=9O-RING, ID=9
-
9205992059-093 TUBE, 4.5X9X360TUBE, 4.5X9X360
-
9207192071-038 GROMMET, PIPEGROMMET, PIPE
-
9207592075-101 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
92075A92075-173 DAMPER, TANK, REARDAMPER, TANK, REAR
-
9215392153-1195 BOLT, FLANGED, 6X20BOLT, FLANGED, 6X20
-
9220092200-0117 WASHER, 6.5X11.5X0.8WASHER, 6.5X11.5X0.8
