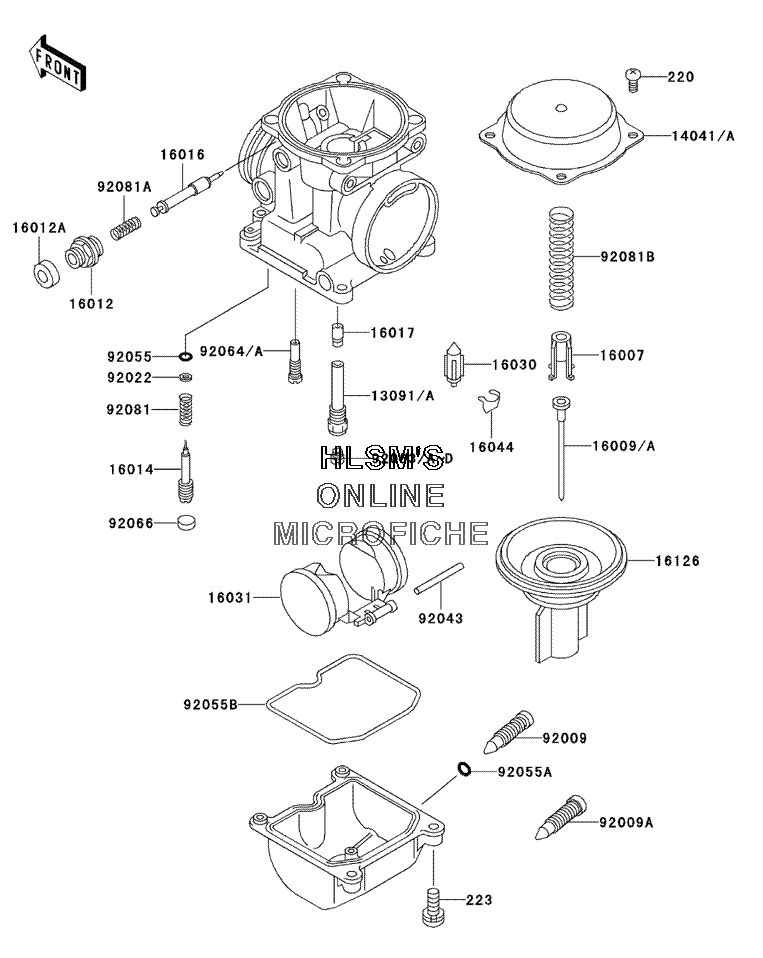

CARBURETOR PARTS для Kawasaki Voyager XII - 2001 года выпуска
-
№АртикулНазвание
-
1309113091-1259 HOLDER, NEEDLE JET (EXCEPT CALIF.)HOLDER, NEEDLE JET (EXCEPT CALIF.)
-
13091A13091-1463 HOLDER, NEEDLE JET (CALIF. ONLY)HOLDER, NEEDLE JET (CALIF. ONLY)
-
1404114041-1076 TOP, CHAMBER, MIXING, OUTSIDETOP, CHAMBER, MIXING, OUTSIDE
-
14041A14041-1077 TOP, CHAMBER, MIXING, INSIDETOP, CHAMBER, MIXING, INSIDE
-
1600716007-1120 SEAT, SPRING, THROTTLE VALVESEAT, SPRING, THROTTLE VALVE
-
1600916009-1316 NEEDLE, JET, N36G (EXCEPT CALIF.)NEEDLE, JET, N36G (EXCEPT CALIF.)
-
16009A16009-1317 NEEDLE, JET, N36H (CALIF. ONLY)NEEDLE, JET, N36H (CALIF. ONLY)
-
1601216012-1051 CAP, STARTER PLUNGERCAP, STARTER PLUNGER
-
16012A16012-1052 CAP, STARTER PLUNGERCAP, STARTER PLUNGER
-
1601416014-1054 SCREW, PILOT AIRSCREW, PILOT AIR
-
1601616016-1061 PLUNGER, STARTERPLUNGER, STARTER
-
1601716017-1316 JET, NEEDLEJET, NEEDLE
-
1603016030-1007 VALVE, FLOATVALVE, FLOAT
-
1603116031-1056 FLOATFLOAT
-
1604416044-007 CLAMP, FLOAT VALVECLAMP, FLOAT VALVE
-
1612616126-1159 VALVE, VACUUMVALVE, VACUUM
-
9200992009-1095 SCREW, DRAIN, M6X1.0SCREW, DRAIN, M6X1.0
-
92009A92009-1551 SCREW, DRAIN, M6X0.75SCREW, DRAIN, M6X0.75
-
9202292022-1003 WASHER, PLAINWASHER, PLAIN
-
9204392043-1207 PIN, FLOATPIN, FLOAT
-
9205592055-1002 O-RING, PILOT ADJUSTO-RING, PILOT ADJUST
-
92055A92055-1053 O-RING, DRAIN SCREWO-RING, DRAIN SCREW
-
92055B92055-1222 O-RING, FLOAT CHAMBERO-RING, FLOAT CHAMBER
-
9206392063-1007 JET, MAIN, #110 (RACING USE ONLY)JET, MAIN, #110 (RACING USE ONLY)
-
92063A92063-1009 JET, MAIN, #105 (RACING USE ONLY)JET, MAIN, #105 (RACING USE ONLY)
-
92063B92063-1115 JET, MAIN, #102 (RACING USE ONLY)JET, MAIN, #102 (RACING USE ONLY)
-
92063C92063-1116 JET, MAIN, #108JET, MAIN, #108
-
92063D92063-1117 JET, MAIN, #112 (RACING USE ONLY)JET, MAIN, #112 (RACING USE ONLY)
-
9206492064-1101 JET, PILOT, #35 (RACING USE ONLY)JET, PILOT, #35 (RACING USE ONLY)
-
92064A92064-1119 JET, PILOT, #38JET, PILOT, #38
-
9206692066-1051 PLUG, PILOT AIR SCREW, 6.9X2PLUG, PILOT AIR SCREW, 6.9X2
-
9208192081-1002 SPRING, PILOT ADJUST SCREWSPRING, PILOT ADJUST SCREW
-
220220B0408 SCREW, PAN, CROSSCREW, PAN, CROS
-
223223C0416 SCREW, PAN, WS, CROSSCREW, PAN, WS, CROS
-
92081A92081-1761 SPRING, STARTER PLUNGERSPRING, STARTER PLUNGER
-
92081B92081-1925 SPRING, VACUUM VALVESPRING, VACUUM VALVE
