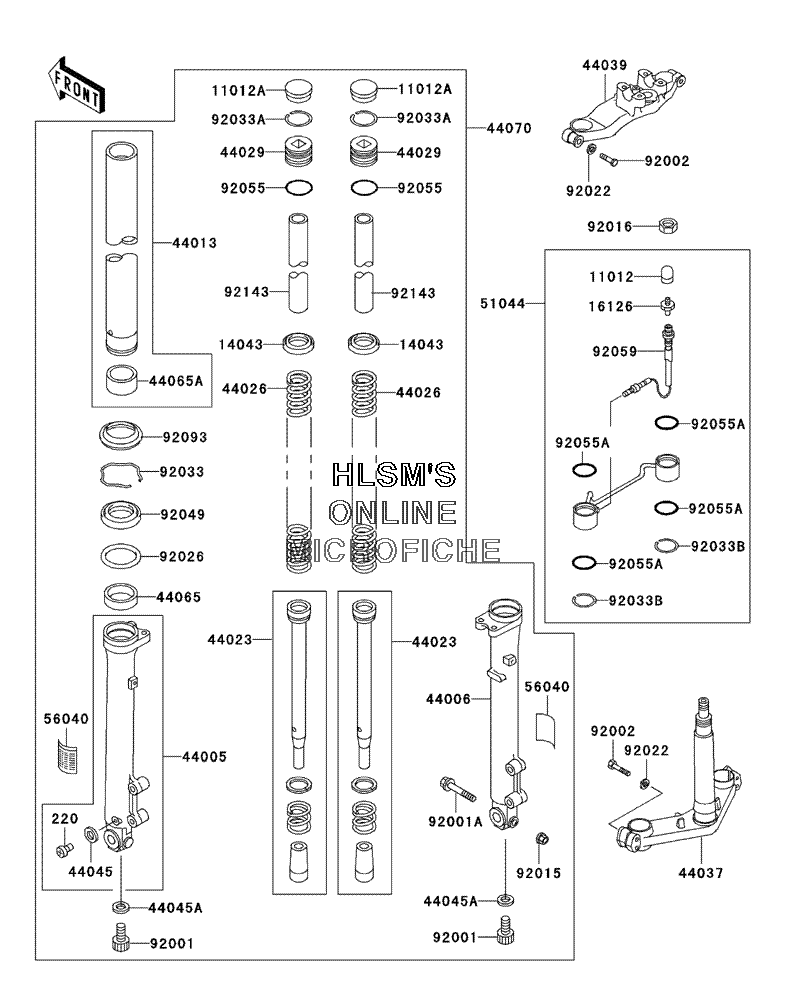

FRONT FORK для Kawasaki Voyager XII - 2001 года выпуска
-
№АртикулНазвание
-
220220B0406 SCREW, PAN, CROS, 4X6SCREW, PAN, CROS, 4X6
-
1101211012-1552 CAP, AIR VALVECAP, AIR VALVE
-
11012A11012-1561 CAP, FORK TOPCAP, FORK TOP
-
1404314043-1066 FILTER, FORKFILTER, FORK
-
1612616126-1105 VALVE, AIRVALVE, AIR
-
4400544005-1250 PIPE, LEFT FORK OUTERPIPE, LEFT FORK OUTER
-
4400644006-1249 PIPE, RIGHT FORK OUTERPIPE, RIGHT FORK OUTER
-
4401344013-1263 PIPE, FORK INNERPIPE, FORK INNER
-
4402344023-1060 CYLINDER, COMP, FORKCYLINDER, COMP, FORK
-
4402644026-1375 SPRING, FRONT FORKSPRING, FRONT FORK
-
4402944029-1125 SEAT, FORK SPRINGSEAT, FORK SPRING
-
4403744037-1194 HOLDER, FORK UNDERHOLDER, FORK UNDER
-
4403944039-1132 HOLDER, FORK UPPERHOLDER, FORK UPPER
-
4404544045-046 GASKET, FORK DRAIN PLUGGASKET, FORK DRAIN PLUG
-
44045A44045-051 GASKET, FORK CYLINDER BOLTGASKET, FORK CYLINDER BOLT
-
4406544065-1079 BUSHING, FRONT FORKBUSHING, FRONT FORK
-
44065A44065-1080 BUSHING, FRONT FORK, INNER PIPEBUSHING, FRONT FORK, INNER PIPE
-
4407044070-5036 DAMPER, ASSY., FORKDAMPER, ASSY., FORK
-
5104451044-1082 TUBE, ASSY., FORK, AIRTUBE, ASSY., FORK, AIR
-
5604056040-1054 LABEL, WARNING, AIR SUSPENSIONLABEL, WARNING, AIR SUSPENSION
-
9200192001-1464 BOLT, FORK CYLINDERBOLT, FORK CYLINDER
-
92001A92001-1485 BOLT, FLANGED, 8X55BOLT, FLANGED, 8X55
-
9200292002-1603 BOLTBOLT
-
9201592015-1055 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
9201692016-044 NUT, 14MMNUT, 14MM
-
9202292022-1703 WASHER, SPRING, 8MMWASHER, SPRING, 8MM
-
9202692026-1276 SPACER, FORK OUTERSPACER, FORK OUTER
-
9203392033-1222 RING, SNAPRING, SNAP
-
92033A92033-1223 RING, SNAP, SPRING SEATRING, SNAP, SPRING SEAT
-
92033B92033-1224 RING, SNAP, AIR TUBERING, SNAP, AIR TUBE
-
9204992049-1363 SEAL, OIL, FORKSEAL, OIL, FORK
-
9205592055-1363 O-RING, SPRING SEATO-RING, SPRING SEAT
-
92055A92055-1364 O-RING, FORK, AIR TUBEO-RING, FORK, AIR TUBE
-
9205992059-1745 TUBE, FORK, AIRTUBE, FORK, AIR
-
9209392093-1268 SEAL, FORKSEAL, FORK
-
9214392143-1053 COLLAR, FORK SPRINGCOLLAR, FORK SPRING
