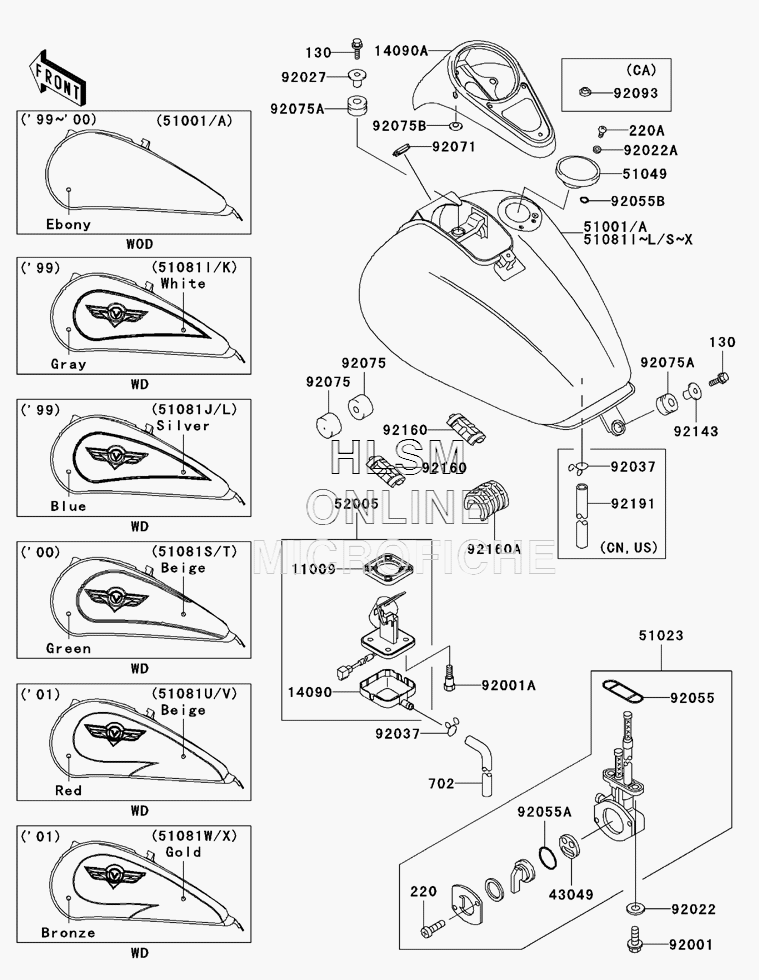

FUEL TANK для Kawasaki Vulcan 1500 Classic - 2001 года выпуска
-
№АртикулНазвание
-
1100911009-1656 GASKET, FUEL GAUGEGASKET, FUEL GAUGE
-
1409014090-1624 COVER, FUEL GAUGECOVER, FUEL GAUGE
-
14090A14090-1674 COVER, METERCOVER, METER
-
4304943049-1066 PACKING, TAP VALVEPACKING, TAP VALVE
-
5102351023-1226 TAP, ASSY., FUELTAP, ASSY., FUEL
-
5104951049-1103 CAP, TANK, FUELCAP, TANK, FUEL
-
51081U51081-5345-SI TANK, COMP, FUEL (RED/BEIGE) (US ONLY)TANK, COMP, FUEL (RED/BEIGE) (US ONLY)
-
51081V51081-5346-SI TANK, COMP, FUEL (RED/BEIGE) (CALIF. ONLY)TANK, COMP, FUEL (RED/BEIGE) (CALIF. ONLY)
-
51081W51081-5347-XI TANK, COMP, FUEL (BRONZE) /GOLD (US ONLY)TANK, COMP, FUEL (BRONZE) /GOLD (US ONLY)
-
51081X51081-5348-XI TANK, COMP, FUEL (BRONZE) /GOLD (CALIF. ONLY)TANK, COMP, FUEL (BRONZE) /GOLD (CALIF. ONLY)
-
130130H0830 BOLT, FLANGED, 8X30BOLT, FLANGED, 8X30
-
220220B0308 SCREW, PAN, CROSSCREW, PAN, CROS
-
220A220D0510 SCREW, PAN, CROSSCREW, PAN, CROS
-
702702A07860 TUBE, RUBBER, 7X10X860TUBE, RUBBER, 7X10X860
-
5200552005-1129 GAUGE, FUELGAUGE, FUEL
-
9200192001-1524 BOLT, 6X25BOLT, 6X25
-
92001A92001-1705 BOLT, FUEL GAUGEBOLT, FUEL GAUGE
-
9202292022-183 WASHER, 6.2X11X1.5WASHER, 6.2X11X1.5
-
92022A92022-1977 WASHER, 5.1X10X1.0WASHER, 5.1X10X1.0
-
9202792027-1780 COLLAR, L=19.3COLLAR, L=19.3
-
9203792037-147 CLAMP, TUBE (CALIF. ONLY)CLAMP, TUBE (CALIF. ONLY)
-
9203792037-147 CLAMP, TUBE (US ONLY)CLAMP, TUBE (US ONLY)
-
9205592055-1112 O-RING, FUEL TAP PACKINGO-RING, FUEL TAP PACKING
-
92055A92055-1419 O-RING, TAP LEVERO-RING, TAP LEVER
-
92055B92055-1552 O-RINGO-RING
-
9207192071-1187 GROMMETGROMMET
-
9207592075-125 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
92075A92075-1736 DAMPERDAMPER
-
92075B92075-261 DAMPER, RUBBERDAMPER, RUBBER
-
9209392093-1030 SEAL, FUEL TANK CAP (CALIF. ONLY)SEAL, FUEL TANK CAP (CALIF. ONLY)
-
9214392143-1835 COLLARCOLLAR
-
9216092160-1751 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
92160A92160-1799 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
9219192191-1272 TUBE, DRAIN (US ONLY)TUBE, DRAIN (US ONLY)
