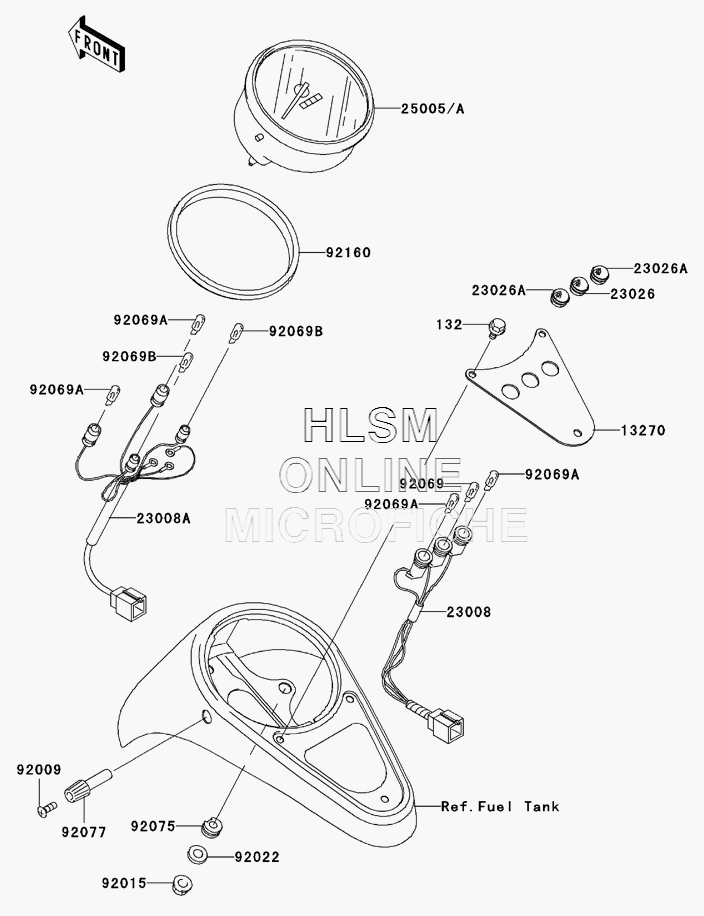

METER(S) для Kawasaki Vulcan 1500 Classic - 2001 года выпуска
-
№АртикулНазвание
-
132132E0612 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
1327013270-1590 PLATE, PILOT LAMPPLATE, PILOT LAMP
-
2300823008-1546 SOCKET, ASSY., PILOT LAMPSOCKET, ASSY., PILOT LAMP
-
23008A23008-1601 SOCKET, ASSY., SPEEDOMETERSOCKET, ASSY., SPEEDOMETER
-
2302623026-1171 LENS (GREEN)LENS (GREEN)
-
23026A23026-1173 LENS (RED)LENS (RED)
-
2500525005-1650 SPEEDOMETER, MPHSPEEDOMETER, MPH
-
9200992009-1799 SCREW, 3X8SCREW, 3X8
-
9201592015-1259 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
-
9202292022-263 WASHER, 5.2X16X1.2WASHER, 5.2X16X1.2
-
9206992069-1007 BULB, 12V 3.4W, T10BULB, 12V 3.4W, T10
-
92069A92069-1059 BULB, 12V 1.7W, T10BULB, 12V 1.7W, T10
-
92069B92069-1068 BULB, 12V 3W, T6.5BULB, 12V 3W, T6.5
-
9207592075-1209 DAMPER, METERDAMPER, METER
-
9207792077-1117 KNOB, TRIPKNOB, TRIP
-
9216092160-1713 DAMPER, METERDAMPER, METER
