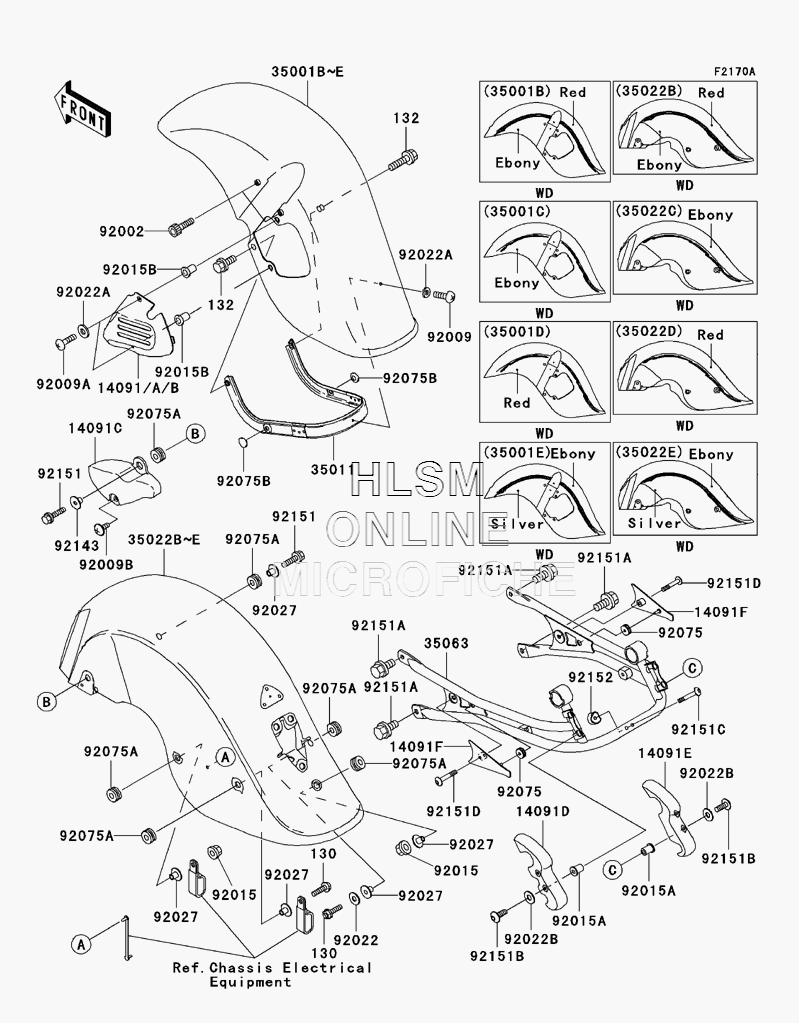

FENDER(S) для Kawasaki Vulcan 1500 Drifter - 2001 года выпуска
-
№АртикулНазвание
-
1409114091-1059-H8 COVER, FRONT CALIPER (EBONY)COVER, FRONT CALIPER (EBONY)
-
14091C14091-1071 COVER, COUPLERCOVER, COUPLER
-
14091D14091-1289 COVER, REAR FENDER STAY, REAR (LEFT)COVER, REAR FENDER STAY, REAR (LEFT)
-
14091E14091-1291 COVER, REAR FENDER STAY, REAR (RIGHT)COVER, REAR FENDER STAY, REAR (RIGHT)
-
14091F14091-1293 COVER, REAR FENDER STAY (LEFT/RIGHT)COVER, REAR FENDER STAY (LEFT/RIGHT)
-
35001B35001-5057-225 FENDER, ASSY, FRONT (EBONY/RED)FENDER, ASSY, FRONT (EBONY/RED)
-
35001C35001-5058-H8 FENDER, ASSY, FRONT (EBONY)FENDER, ASSY, FRONT (EBONY)
-
3501135011-1962 STAY, FRONT FENDERSTAY, FRONT FENDER
-
35022B35022-5112-225 FENDER, COMP, REAR (EBONY/RED)FENDER, COMP, REAR (EBONY/RED)
-
35022C35022-5113-H8 FENDER, COMP, REAR (EBONY)FENDER, COMP, REAR (EBONY)
-
3506335063-1147 STAY, REAR FENDERSTAY, REAR FENDER
-
9200292002-1179 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
-
9200992009-1652 SCREW, 5X12SCREW, 5X12
-
92009A92009-1654 SCREW, 5X16 (BLACK)SCREW, 5X16 (BLACK)
-
92009B92009-1877 SCREW, 6X12SCREW, 6X12
-
9201592015-1386 NUT, 6MMNUT, 6MM
-
92015A92015-1700 NUTNUT
-
92015B92015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
9202292022-1093 WASHER, 6.5X16X1.0WASHER, 6.5X16X1.0
-
92022A92022-1521 WASHER, NYLON, 5.3X11.5X1.5WASHER, NYLON, 5.3X11.5X1.5
-
92022B92022-1654 WASHER, 6.5X16X1.0WASHER, 6.5X16X1.0
-
9202792027-1450 COLLAR, L=13.1 (BLACK)COLLAR, L=13.1 (BLACK)
-
9207592075-1629 DAMPERDAMPER
-
92075A92075-1690 DAMPERDAMPER
-
92075B92075-261 DAMPER, RUBBERDAMPER, RUBBER
-
9214392143-1960 COLLARCOLLAR
-
9215192151-1488 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
92151A92151-1511 BOLT, FLANGED, 10X20BOLT, FLANGED, 10X20
-
92151B92151-1750 BOLT, SOCKET, 6X20BOLT, SOCKET, 6X20
-
92151C92151-1902 BOLT, SOCKET, 6X50BOLT, SOCKET, 6X50
-
130130J0622 BOLT, FLANGED, 6X22 (BLACK)BOLT, FLANGED, 6X22 (BLACK)
-
132132E0820 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
92151D92151-1921 BOLT, SOCKET, 6X40BOLT, SOCKET, 6X40
-
9215292152-1283 COLLARCOLLAR
