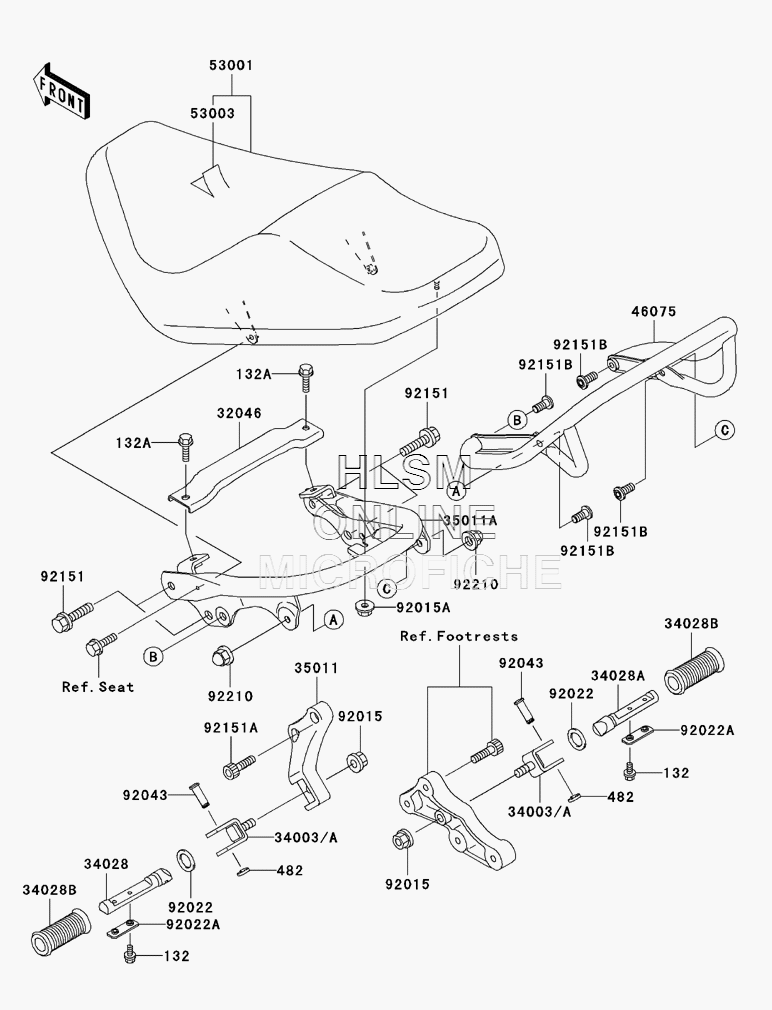

SEAT B для Kawasaki Vulcan 1500 Drifter - 2001 года выпуска
-
№АртикулНазвание
-
132132J0510 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132J0816 BOLT, FLANGED, SMALL, 8X16BOLT, FLANGED, SMALL, 8X16
-
482482L7000 CIRCLIP, TYPE, ECIRCLIP, TYPE, E
-
3204632046-1478 BRACKET, SEATBRACKET, SEAT
-
34003A34003-1292 HOLDER, STEP, REARHOLDER, STEP, REAR
-
3402834028-1219 STEP, REAR (LEFT)STEP, REAR (LEFT)
-
34028A34028-1220 STEP, REAR (RIGHT)STEP, REAR (RIGHT)
-
34028B34028-1221 STEP, REAR, RUBBERSTEP, REAR, RUBBER
-
3501135011-1770 STAY, REAR STEP (LEFT)STAY, REAR STEP (LEFT)
-
35011A35011-1968 STAY, SEATSTAY, SEAT
-
4607546075-1186 GRIPGRIP
-
5300153001-1886-MA SEAT, ASSY, DUAL (BLACK)SEAT, ASSY, DUAL (BLACK)
-
5300353003-1431-MA LEATHER, SEAT (BLACK)LEATHER, SEAT (BLACK)
-
9201592015-1428 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
92015A92015-1603 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
9202292022-1568 WASHER, 20X30X2.3WASHER, 20X30X2.3
-
92022A92022-1874 WASHER, STEPWASHER, STEP
-
9204392043-1339 PIN, 8X36.5PIN, 8X36.5
-
9215192151-1440 BOLT, FLANGED, 10X18BOLT, FLANGED, 10X18
-
92151A92151-1525 BOLT, SOCKET, 8X25BOLT, SOCKET, 8X25
-
92151B92151-1577 BOLT, SOCKET, 10X22BOLT, SOCKET, 10X22
-
9221092210-1189 NUT, CAP, 10MMNUT, CAP, 10MM
