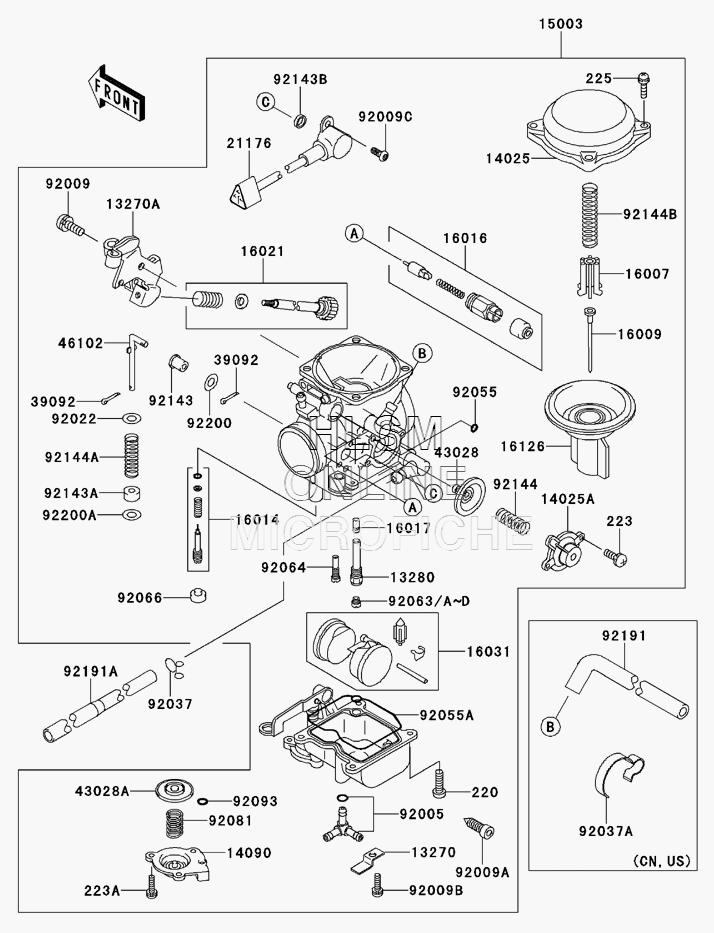

CARBURETOR для Kawasaki Vulcan 1500 Nomad - 2001 года выпуска
-
№АртикулНазвание
-
1327013270-1286 PLATE, FITTING STAYPLATE, FITTING STAY
-
13270A13270-1513 PLATEPLATE
-
1328013280-1100 HOLDER, NEEDLE JETHOLDER, NEEDLE JET
-
1402514025-1890 COVER, MIXING CHAMBERCOVER, MIXING CHAMBER
-
14025A14025-1903 COVER, AIR CUT VALVECOVER, AIR CUT VALVE
-
1409014090-1635 COVER, ACCELERATORCOVER, ACCELERATOR
-
1500315003-1432 CARBURETOR, ASSY.CARBURETOR, ASSY.
-
1600716007-1113 SEAT, SPRING, DIAPHRAGM VALVESEAT, SPRING, DIAPHRAGM VALVE
-
1600916009-1941 NEEDLE, JET, N2PYNEEDLE, JET, N2PY
-
1601416014-1082 SCREW, PILOT AIRSCREW, PILOT AIR
-
1601616016-1087 PLUNGERPLUNGER
-
1601716017-1276 JET, NEEDLE, 01B38JET, NEEDLE, 01B38
-
1602116021-1219 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
1603116031-1090 FLOATFLOAT
-
1612616126-1325 VALVE, VACUUMVALVE, VACUUM
-
2117621176-1078 SENSORSENSOR
-
3909239092-1058 PIN, HAIRPIN, HAIR
-
4302843028-1053 DIAPHRAGM, 5.9MM, AIR CUT VALVEDIAPHRAGM, 5.9MM, AIR CUT VALVE
-
43028A43028-1077 DIAPHRAGMDIAPHRAGM
-
4610246102-1400 ROD, ACCELERATOR PUMPROD, ACCELERATOR PUMP
-
9200592005-1350 FITTINGFITTING
-
9200992009-1365 SCREW, 5X10SCREW, 5X10
-
92009A92009-1551 SCREW, DRAIN, M6X0.75SCREW, DRAIN, M6X0.75
-
92009B92009-1704 SCREW, 4X8SCREW, 4X8
-
92009C92009-1781 SCREWSCREW
-
9202292022-1480 WASHER, PLAIN, STOP SPRINGWASHER, PLAIN, STOP SPRING
-
9203792037-1531 CLAMP, TUBECLAMP, TUBE
-
92037A92037-1552 CLAMP, HOSE (US ONLY)CLAMP, HOSE (US ONLY)
-
9205592055-1245 O-RINGO-RING
-
92055A92055-1518 O-RING, FLOAT CHAMBERO-RING, FLOAT CHAMBER
-
9206392063-1013 JET, MAIN, #140 (OPT)JET, MAIN, #140 (OPT)
-
92063A92063-1015 JET, MAIN, #138 (OPT)JET, MAIN, #138 (OPT)
-
92063B92063-1016 JET, MAIN, #142JET, MAIN, #142
-
92063C92063-1017 JET, MAIN, #145 (OPT)JET, MAIN, #145 (OPT)
-
92063D92063-1324 JET, MAIN, #148 (OPT)JET, MAIN, #148 (OPT)
-
220220D0414 SCREW, PAN, CROSSCREW, PAN, CROS
-
223223D0408 SCREW, PAN, WS, CROSSCREW, PAN, WS, CROS
-
223A223D0410 SCREW, PAN, WS, CROSSCREW, PAN, WS, CROS
-
225225C0418 SCREW, PAN, WSP, CROSSCREW, PAN, WSP, CROS
-
9206492064-1177 JET, PILOT, #45JET, PILOT, #45
-
9206692066-1051 PLUG, PILOT AIR SCREW, 6.9X2PLUG, PILOT AIR SCREW, 6.9X2
-
9208192081-1092 SPRING, DIAPHRAGMSPRING, DIAPHRAGM
-
9209392093-1046 SEAL, "U"RINGSEAL, "U"RING
-
9214392143-1790 COLLARCOLLAR
-
92143A92143-1791 COLLARCOLLAR
-
92143B92143-1907 COLLARCOLLAR
-
9214492144-1885 SPRINGSPRING
-
92144A92144-1886 SPRINGSPRING
-
92144B92144-1947 SPRING, VACUUM VALVESPRING, VACUUM VALVE
-
9219192191-1090 TUBE, AIR VENT (US ONLY)TUBE, AIR VENT (US ONLY)
-
92191A92191-1261 TUBE, FUELTUBE, FUEL
-
9220092200-1274 WASHERWASHER
-
92200A92200-1275 WASHERWASHER
