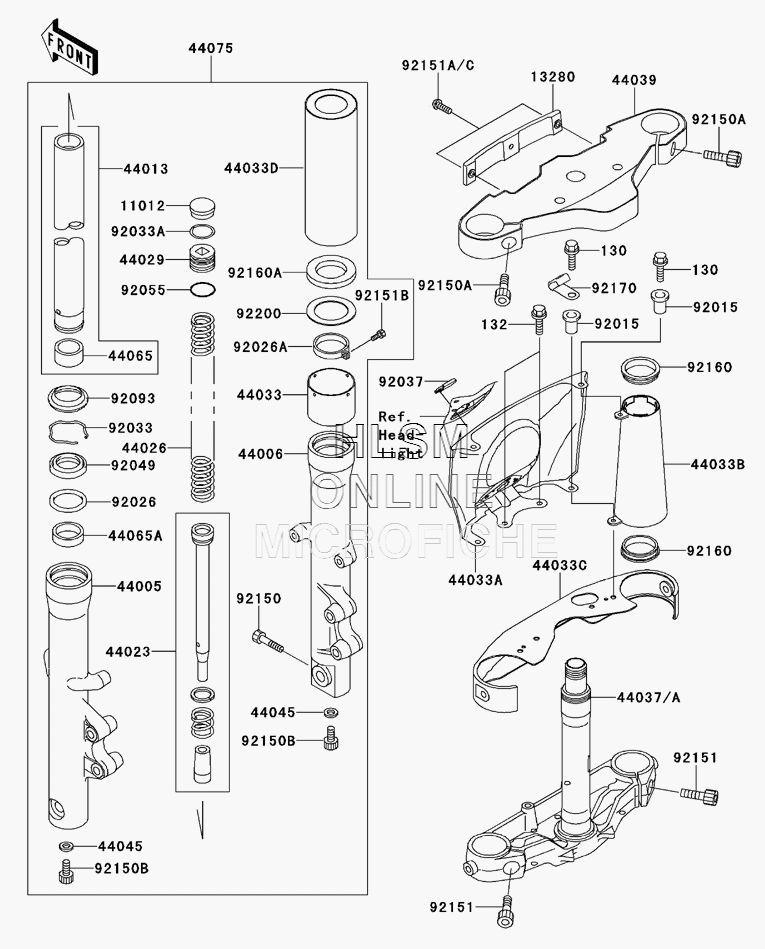

FRONT FORK для Kawasaki Vulcan 1500 Nomad - 2001 года выпуска
-
№АртикулНазвание
-
1101211012-1618 CAP, FORK TOPCAP, FORK TOP
-
1328013280-1070 HOLDERHOLDER
-
4400544005-1384 PIPE, LEFT FORK OUTERPIPE, LEFT FORK OUTER
-
4400644006-1384 PIPE, RIGHT FORK OUTERPIPE, RIGHT FORK OUTER
-
4401344013-1450 PIPE, FORK INNERPIPE, FORK INNER
-
4402344023-1129 CYLINDER, SET, FORKCYLINDER, SET, FORK
-
4402644026-1676 SPRING, FRONT FORKSPRING, FRONT FORK
-
4402944029-1125 SEAT, FORK SPRINGSEAT, FORK SPRING
-
4403344033-1223 COVER, FORKCOVER, FORK
-
44033A44033-1228 COVER, FORK, CENTERCOVER, FORK, CENTER
-
44033B44033-1229 COVER, FORK, UPPERCOVER, FORK, UPPER
-
44033C44033-1230 COVER, FORK, LOWERCOVER, FORK, LOWER
-
44033D44033-1236 COVER, FORKCOVER, FORK
-
44037A44037-1410 HOLDER, FORK UNDERHOLDER, FORK UNDER
-
4403944039-1279 HOLDER, FORK UPPERHOLDER, FORK UPPER
-
4404544045-051 GASKET, FORK CYLINDER BOLTGASKET, FORK CYLINDER BOLT
-
4406544065-1126 BUSHING, FRONT FORK, INNER PIPEBUSHING, FRONT FORK, INNER PIPE
-
44065A44065-1127 BUSHING, FRONT FORKBUSHING, FRONT FORK
-
4407544075-1073 DAMPER, SET, FORKDAMPER, SET, FORK
-
9201592015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
9202692026-1276 SPACER, FORK OUTERSPACER, FORK OUTER
-
92026A92026-1515 SPACERSPACER
-
9203392033-1222 RING, SNAP, FORK OUTERRING, SNAP, FORK OUTER
-
92033A92033-1223 RING, SNAP, SPRING SEATRING, SNAP, SPRING SEAT
-
9203792037-1539 CLAMP, L=45CLAMP, L=45
-
9204992049-1363 SEAL, OIL, FORKSEAL, OIL, FORK
-
9205592055-1363 O-RING, SPRING SEATO-RING, SPRING SEAT
-
9209392093-1268 SEAL, FORKSEAL, FORK
-
9215092150-1029 BOLT, SOCKET, 10X40BOLT, SOCKET, 10X40
-
92150A92150-1031 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
-
92150B92150-1432 BOLT, SOCKET, 8X18BOLT, SOCKET, 8X18
-
9215192151-1083 BOLT, SOCKET, 10X25BOLT, SOCKET, 10X25
-
92151B92151-1356 BOLT, SOCKET, 4X16BOLT, SOCKET, 4X16
-
92151C92151-1749 BOLT, SOCKET, 6X20BOLT, SOCKET, 6X20
-
9216092160-1892 DAMPERDAMPER
-
92160A92160-1927 DAMPERDAMPER
-
9217092170-1900 CLAMP, HARNESSCLAMP, HARNESS
-
9220092200-1417 WASHERWASHER
-
130130J0516 BOLT, FLANGEDBOLT, FLANGED
-
132132E0612 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
