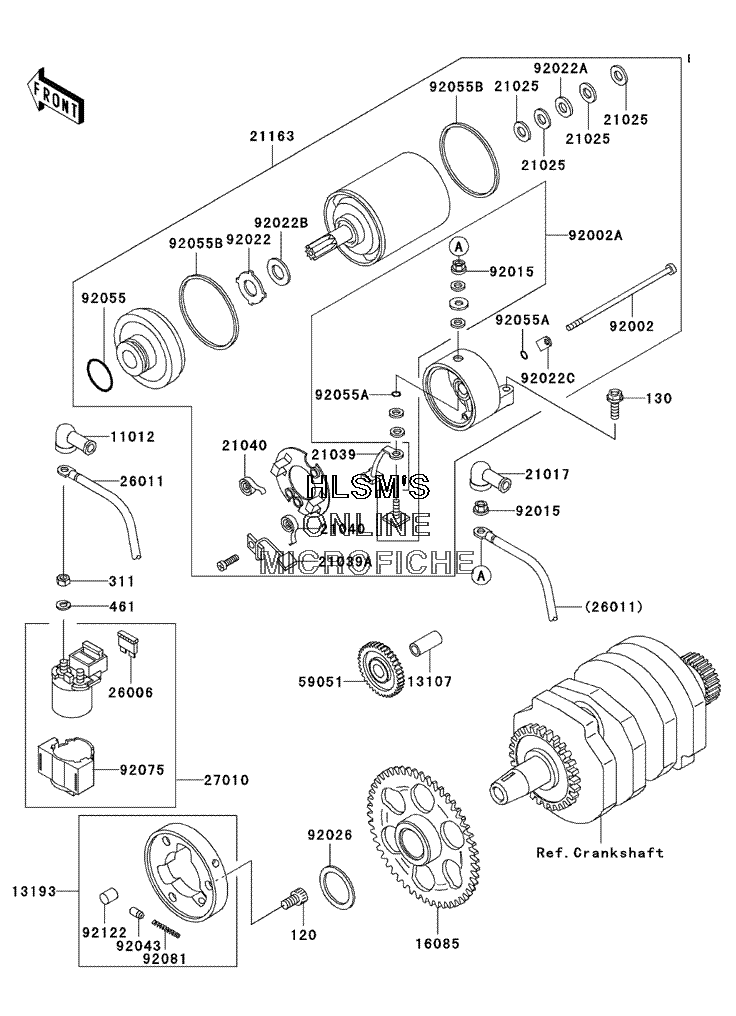

STARTER MOTOR для Kawasaki NINJA 250R - 2002 года выпуска
-
№АртикулНазвание
-
120120P0814 BOLT, SOCKET, 8X14BOLT, SOCKET, 8X14
-
130130J0620 BOLT, FLANGEDBOLT, FLANGED
-
311311B0600 NUT, HEX, 6MMNUT, HEX, 6MM
-
461461F0600 WASHER, SPRING, 6MMWASHER, SPRING, 6MM
-
1101211012-1354 CAP, TERMINALCAP, TERMINAL
-
1310713107-1176 SHAFT, 7.8X12X26.5SHAFT, 7.8X12X26.5
-
1319313193-1002 CLUTCH, ASSY., ONEWAYCLUTCH, ASSY., ONEWAY
-
1608516085-1166 GEAR, ONEWAY CLUTCH (65 TEETH)GEAR, ONEWAY CLUTCH (65 TEETH)
-
2101721017-017 GROMMET, STARTER TERMINALGROMMET, STARTER TERMINAL
-
2102521025-011 WASHER, 9.1X18X0.2WASHER, 9.1X18X0.2
-
2103921039-1001 BRUSH, CARBON (+)BRUSH, CARBON (+)
-
21039A21039-1056 BRUSH, CARBON (-)BRUSH, CARBON (-)
-
2104021040-1053 SPRING, BRUSHSPRING, BRUSH
-
2116321163-1221 STARTER, ELECTRICSTARTER, ELECTRIC
-
2600626006-1006 FUSE, 30A, GFUSE, 30A, G
-
2601126011-1376 WIRE, LEADWIRE, LEAD
-
2701027010-1213 SWITCH, MAGNETICSWITCH, MAGNETIC
-
5905159051-1154 GEAR, SPUR, IDLEGEAR, SPUR, IDLE
-
9200292002-1818 BOLT, STARTERBOLT, STARTER
-
92002A92002-1819 BOLT, TERMINALBOLT, TERMINAL
-
9201592015-1476 NUT, STARTER MOTORNUT, STARTER MOTOR
-
9202292022-1130 WASHER, THRUST SUPPERORTWASHER, THRUST SUPPERORT
-
92022A92022-1132 WASHER, 9.1X18X0.8WASHER, 9.1X18X0.8
-
92022B92022-1714 WASHER, 22X12.2X0.5WASHER, 22X12.2X0.5
-
92022C92022-1825 WASHER, LOCKWASHER, LOCK
-
9202692026-1004 SPACER, 25X40X1SPACER, 25X40X1
-
9204392043-132 PINPIN
-
9205592055-1303 O-RINGO-RING
-
92055A92055-1370 O-RING, 4.5X2.0O-RING, 4.5X2.0
-
92055B92055-1418 O-RINGO-RING
-
9207592075-1863 DAMPER, MAGNETIC SWITCHDAMPER, MAGNETIC SWITCH
-
9208192081-159 SPRING, COILSPRING, COIL
-
9212292122-006 ROLLERROLLER
