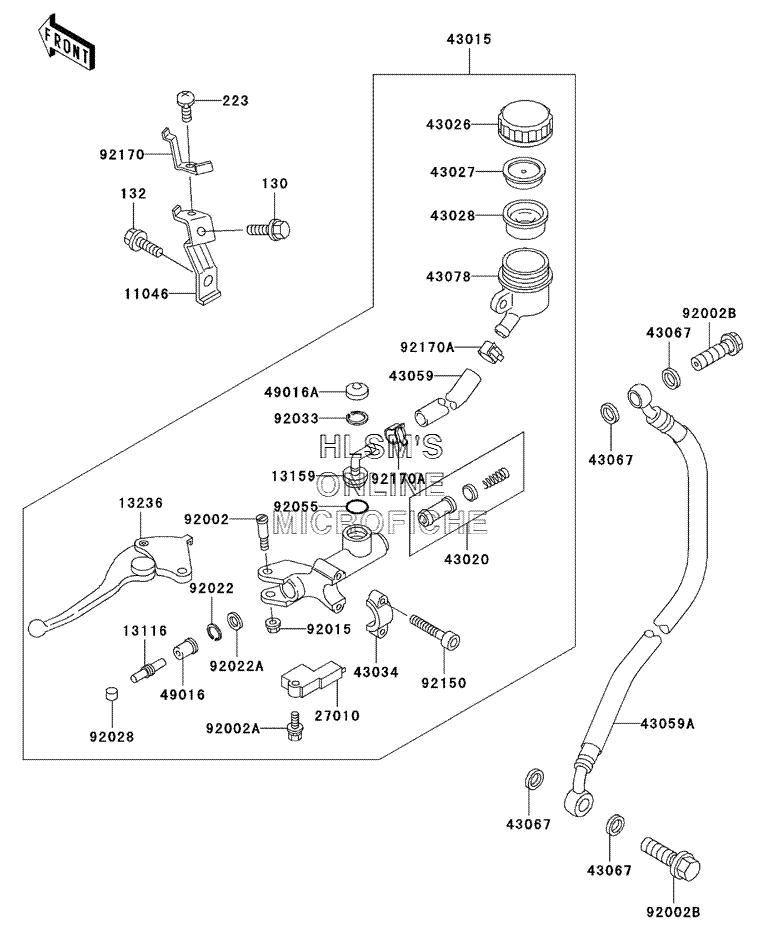

CLUTCH MASTER CYLINDER для Kawasaki NINJA ZX-7R - 2002 года выпуска
-
№АртикулНазвание
-
130130H0614 BOLT, FLANGED, 6X14BOLT, FLANGED, 6X14
-
132132J0612 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
223223D0408 SCREW, PAN, WS, CROSSCREW, PAN, WS, CROS
-
1104611046-1756 BRACKET, RESERVOIR TANKBRACKET, RESERVOIR TANK
-
1311613116-1110 ROD, PUSH, MASTER CYLINDERROD, PUSH, MASTER CYLINDER
-
1315913159-1061 CONNECTORCONNECTOR
-
1323613236-1186 LEVER, COMP, CLUTCHLEVER, COMP, CLUTCH
-
2701027010-1406 SWITCH, CLUTCHSWITCH, CLUTCH
-
4301543015-1394 CYLINDER, ASSY, MASTER, CLUTCHCYLINDER, ASSY, MASTER, CLUTCH
-
4302043020-1055 PISTON, COMP, BRAKE, CLUTCHPISTON, COMP, BRAKE, CLUTCH
-
4302643026-1070 CAP, BRAKECAP, BRAKE
-
4302743027-1054 PLATE, DIAPHRAGMPLATE, DIAPHRAGM
-
4302843028-1073 DIAPHRAGMDIAPHRAGM
-
4303443034-1016 HOLDER, BRAKE, MASTER CYLINDERHOLDER, BRAKE, MASTER CYLINDER
-
4305943059-1548 HOSE, BRAKE, CLUTCH M/CYLINDERHOSE, BRAKE, CLUTCH M/CYLINDER
-
43059A43059-1856 HOSE, BRAKE, CLUTCHHOSE, BRAKE, CLUTCH
-
4306743067-001 WASHER, 10.5X15X1.5WASHER, 10.5X15X1.5
-
4307843078-1102 RESERVOIRRESERVOIR
-
4901649016-1044 COVER, SEAL, MASTER CYLINDERCOVER, SEAL, MASTER CYLINDER
-
49016A49016-1147 COVER, SEALCOVER, SEAL
-
9200292002-1322 BOLT, LEVER SET (BLACK)BOLT, LEVER SET (BLACK)
-
92002A92002-1325 SCREW, 4X16SCREW, 4X16
-
92002B92002-1888 BOLT, OIL, L=23BOLT, OIL, L=23
-
9201592015-1233 NUT, FLANGED, 6MM (BLACK)NUT, FLANGED, 6MM (BLACK)
-
9202292022-1605 CIRCLIPCIRCLIP
-
92022A92022-1606 WASHER, PISTONWASHER, PISTON
-
9202892028-1310 BUSHING, MASTER CYLINDERBUSHING, MASTER CYLINDER
-
9203392033-1186 RING, SNAP, 20.5MMRING, SNAP, 20.5MM
-
9205592055-1251 O-RING, MASTER CYLINDERO-RING, MASTER CYLINDER
-
9215092150-1328 BOLTBOLT
-
9217092170-1087 CLAMPCLAMP
-
92170A92170-1091 CLAMP, HOSECLAMP, HOSE
