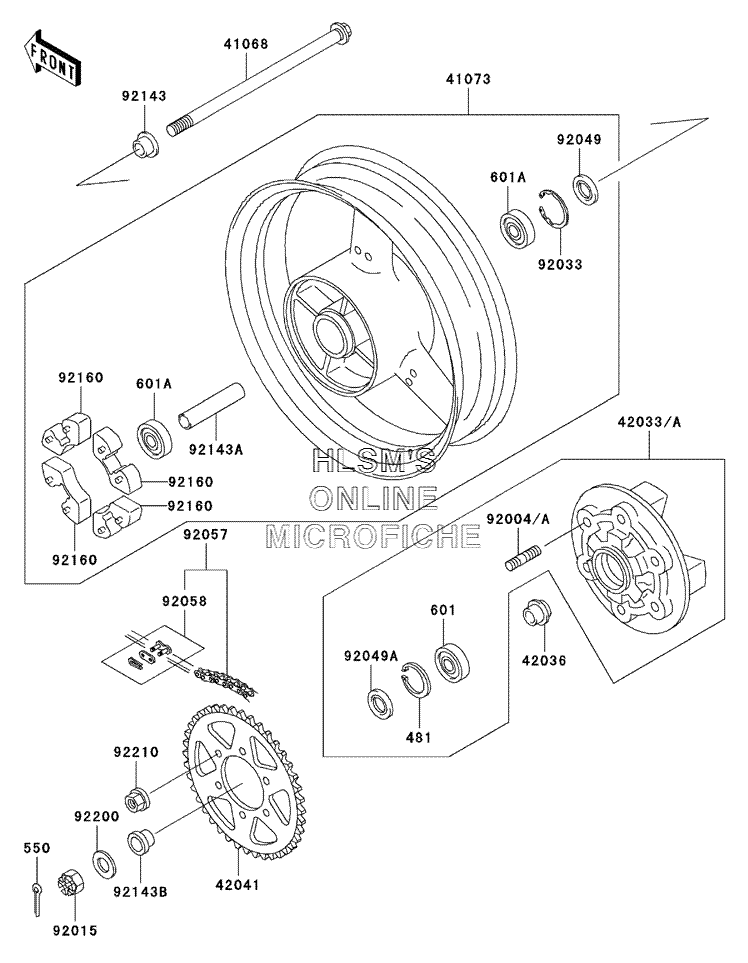

WHEEL - REAR W/ CHAIN для Kawasaki NINJA ZX-7R - 2002 года выпуска
-
№АртикулНазвание
-
481481J5500 CIRCLIPCIRCLIP
-
550550D4040 PIN, COTTER, 4.0X40PIN, COTTER, 4.0X40
-
601601B6006G BEARING, BALL, #6006GBEARING, BALL, #6006G
-
601A601B6205UU BEARING, BALLBEARING, BALL
-
4106841068-1326 AXLE, REARAXLE, REAR
-
4107341073-1597-DH WHEEL, ASSY, REAR (C.GRAY)WHEEL, ASSY, REAR (C.GRAY)
-
42033A42033-1213 COUPLING, ASSY, REAR HUBCOUPLING, ASSY, REAR HUB
-
4203642036-1279 SLEEVE, REAR HUB, L=22SLEEVE, REAR HUB, L=22
-
4204142041-1467 SPROCKET, HUB, 43TSPROCKET, HUB, 43T
-
92004A92004-1275 STUD, 10X19STUD, 10X19
-
9201592015-1844 NUT, CASTLE, 24MMNUT, CASTLE, 24MM
-
9203392033-1043 RING, SNAP, 52MMRING, SNAP, 52MM
-
9204992049-1375 SEAL, OIL, REAR HUB, L=159SEAL, OIL, REAR HUB, L=159
-
92049A92049-1376 SEAL, OIL, PJN 40 55 8SEAL, OIL, PJN 40 55 8
-
9205792057-0013 CHAIN, DRIVE, RKGB525ROZ2X110LCHAIN, DRIVE, RKGB525ROZ2X110L
-
9205892058-1109 JOINT, CHAIN, DRIVEJOINT, CHAIN, DRIVE
-
9214392143-1475 COLLAR, REAR AXLE L=26 (RIGHT)COLLAR, REAR AXLE L=26 (RIGHT)
-
92143A92143-1783 COLLAR, REAR HUB, L=136COLLAR, REAR HUB, L=136
-
92143B92143-1784 COLLAR, REAR AXLE L=17 (LEFT)COLLAR, REAR AXLE L=17 (LEFT)
-
9216092160-1485 DAMPER, SHOCK, REAR HUBDAMPER, SHOCK, REAR HUB
-
9220092200-1081 WASHER, 25.5X38X4.5WASHER, 25.5X38X4.5
-
9221092210-1258 NUT, 10MMNUT, 10MM
