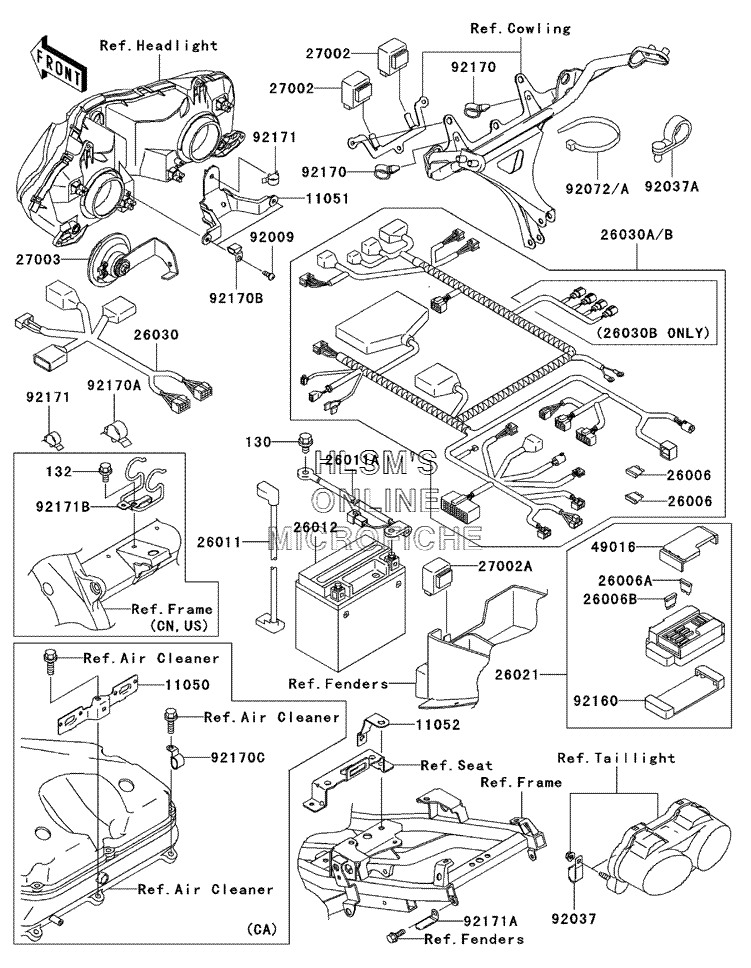

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki NINJA ZX-9R - 2002 года выпуска
-
№АртикулНазвание
-
130130V0610 BOLT, FLANGED, 6X10BOLT, FLANGED, 6X10
-
132132J0612 BOLT, FLANGED, SMALL (EXCEPT CALIF.)BOLT, FLANGED, SMALL (EXCEPT CALIF.)
-
1105011050-1791 BRACKET, HARNESS COUPLER (CALIF. ONLY)BRACKET, HARNESS COUPLER (CALIF. ONLY)
-
1105111051-1827 BRACKET, HEAD LAMPBRACKET, HEAD LAMP
-
1105211052-1647 BRACKET, HEAD LAMP FUSEBRACKET, HEAD LAMP FUSE
-
2600626006-1051 FUSE, 20A, YFUSE, 20A, Y
-
26006A26006-1067 FUSE, 30A, GFUSE, 30A, G
-
26006B26006-1068 FUSE, 10A, RFUSE, 10A, R
-
2601126011-1736 WIRE, LEAD, BATTERY (+)WIRE, LEAD, BATTERY (+)
-
26011A26011-1759 WIRE, LEAD, BATTERY (-)WIRE, LEAD, BATTERY (-)
-
2601226012-1326 BATTERY, YTX9, BS, 12V 8AHBATTERY, YTX9, BS, 12V 8AH
-
2602126021-1096 JUNCTION BOXJUNCTION BOX
-
2603026030-1779 HARNESS, FRONTHARNESS, FRONT
-
26030A26030-1925 HARNESS, MAIN (EXCEPT CALIF.)HARNESS, MAIN (EXCEPT CALIF.)
-
26030B26030-1926 HARNESS, MAIN (CALIF. ONLY)HARNESS, MAIN (CALIF. ONLY)
-
2700227002-1086 RELAY, ASSYRELAY, ASSY
-
27002A27002-1101 RELAY, ASSY, TURN SIGNALRELAY, ASSY, TURN SIGNAL
-
2700327003-1407 HORNHORN
-
4901649016-1177 COVER, SEAL, FUSECOVER, SEAL, FUSE
-
9200992009-1197 SCREW, TAPPING, 5X14SCREW, TAPPING, 5X14
-
9203792037-1069 CLAMP, WIRING HARNESS, L=60CLAMP, WIRING HARNESS, L=60
-
92037A92037-1903 CLAMP, SPEED, L=80.5CLAMP, SPEED, L=80.5
-
9207292072-1197 BAND, L=365BAND, L=365
-
92072A92072-1293 BAND, L=140BAND, L=140
-
9216092160-1650 DAMPER, JUNCTION BOXDAMPER, JUNCTION BOX
-
9217092170-1067 CLAMPCLAMP
-
92170A92170-1494 CLAMP, HARNESSCLAMP, HARNESS
-
92170B92170-1577 CLAMPCLAMP
-
92170C92170-1833 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
9217192171-1269 CLAMP, HARNESSCLAMP, HARNESS
-
92171A92171-1420 CLAMPCLAMP
-
92171B92171-1492 CLAMP, HARNESS (EXCEPT CALIF.)CLAMP, HARNESS (EXCEPT CALIF.)
