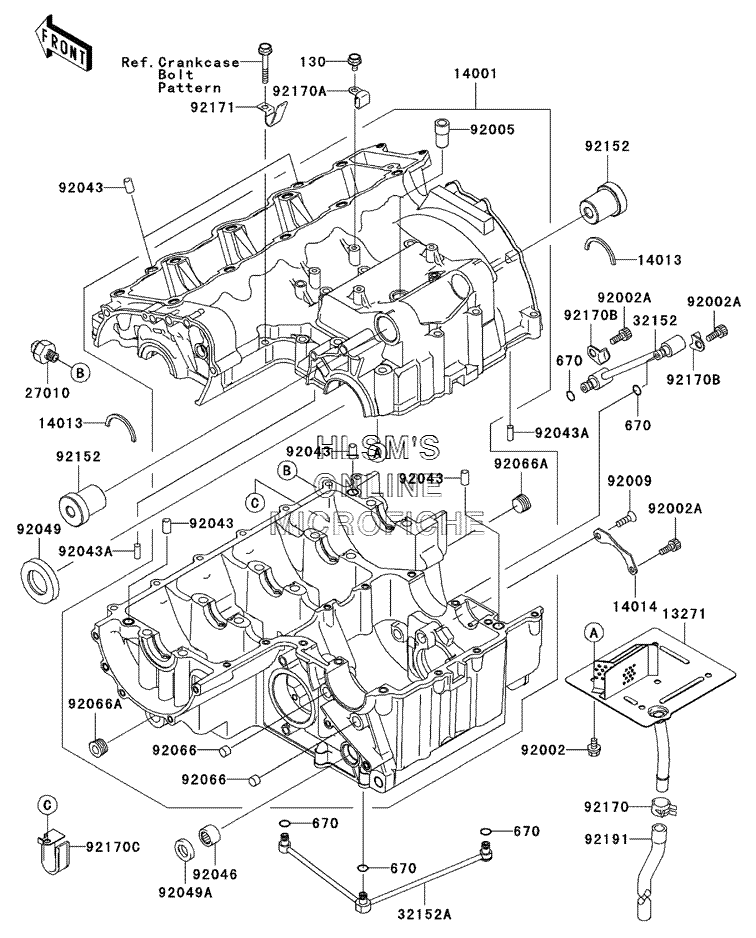

CRANKCASE для Kawasaki NINJA ZX-9R - 2002 года выпуска
-
№АртикулНазвание
-
130130Y0610 BOLT, FLANGEDBOLT, FLANGED
-
670670D1505 O-RINGO-RING
-
1327113271-1511 PLATE, BREATHERPLATE, BREATHER
-
1400114001-1296 SET, CRANKCASESET, CRANKCASE
-
1401314013-1051 RING, POSITIONRING, POSITION
-
1401414014-1140 PLATE, POSITIONPLATE, POSITION
-
2701027010-1313 SWITCH, OIL PRESSURESWITCH, OIL PRESSURE
-
3215232152-1545 PIPE, RIGHT L=76.8PIPE, RIGHT L=76.8
-
32152A32152-1546 PIPE, L=137.2PIPE, L=137.2
-
9200292002-1449 BOLT, 6X10BOLT, 6X10
-
92002A92002-1778 BOLT, SOCKET, 6X16BOLT, SOCKET, 6X16
-
9200592005-1238 FITTING, BREATHERFITTING, BREATHER
-
9200992009-1360 SCREW, 6X16SCREW, 6X16
-
9204392043-1037 PIN, DOWEL, 10X14PIN, DOWEL, 10X14
-
92043A92043-1690 PIN, 6X16PIN, 6X16
-
9204692046-037 BEARING, NEEDLE, 7E, HK1412BEARING, NEEDLE, 7E, HK1412
-
9204992049-1474 SEAL, OIL, TC32578SEAL, OIL, TC32578
-
92049A92049-1520 SEAL, OIL, TC14245SEAL, OIL, TC14245
-
9206692066-1110 PLUGPLUG
-
92066A92066-1262 PLUG, PT3/8X10PLUG, PT3/8X10
-
9215292152-1453 COLLAR, ENGINE MOUNTCOLLAR, ENGINE MOUNT
-
9217092170-1118 CLAMPCLAMP
-
92170A92170-1577 CLAMPCLAMP
-
92170B92170-1578 CLAMPCLAMP
-
92170C92170-1911 CLAMPCLAMP
-
9217192171-1238 CLAMPCLAMP
-
9219192191-1776 TUBE, BREATHERTUBE, BREATHER
