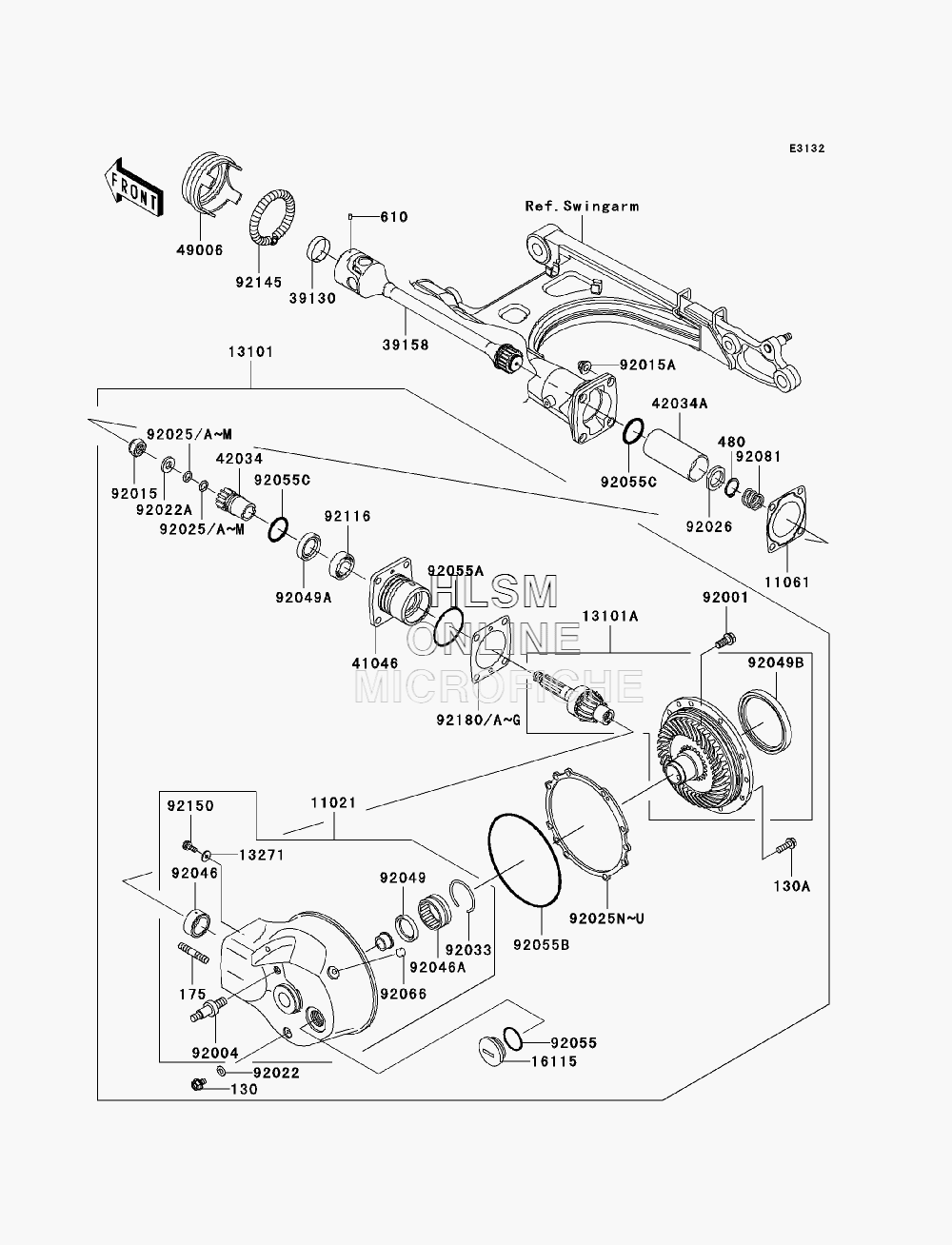

DRIVE SHAFT/FINAL GEAR для Kawasaki Vulcan 1500 Mean Streak (VN1500-P1) - 2002 года выпуска
-
№АртикулНазвание
-
1102111021-1133 CASE-ASSY, FINAL GEARCASE-ASSY, FINAL GEAR
-
1106111061-1088 GASKET, REAR, SWINGARMGASKET, REAR, SWINGARM
-
1310113101-1313 GEAR-ASSY, FINALGEAR-ASSY, FINAL
-
13101A13101-5086 GEAR-ASSY, BEVEL, REARGEAR-ASSY, BEVEL, REAR
-
1327113271-1733 PLATEPLATE
-
1611516115-1056 CAP-OIL FILLERCAP-OIL FILLER
-
3913039130-1002 SPRING-LEAFSPRING-LEAF
-
3915839158-1112 SHAFT-ASSY-DRIVE, REAR, SWINGARMSHAFT-ASSY-DRIVE, REAR, SWINGARM
-
4104641046-1103 HOUSING-BEARINGHOUSING-BEARING
-
4203442034-1079 COUPLINGCOUPLING
-
42034A42034-1178 COUPLING, PROPELLER SHAFT, OUTERCOUPLING, PROPELLER SHAFT, OUTER
-
4900649006-1226 BOOT, PROPELLER SHAFTBOOT, PROPELLER SHAFT
-
9200192001-1778 BOLT, FLANGED, 10X23BOLT, FLANGED, 10X23
-
9200492004-1278 STUD, REAR, SHOCKABSORBERSTUD, REAR, SHOCKABSORBER
-
9201592015-1059 NUT, 16MMNUT, 16MM
-
92015A92015-1649 NUT, 10MMNUT, 10MM
-
9202292022-1086 WASHER, 8.2X16X1WASHER, 8.2X16X1
-
92022A92022-1105 WASHER, 16X32X3.2WASHER, 16X32X3.2
-
9202592025-1214 SHIM, T=1.30SHIM, T=1.30
-
92025A92025-1215 SHIM, T=1.32SHIM, T=1.32
-
92025B92025-1216 SHIM, T=1.34SHIM, T=1.34
-
92025C92025-1217 SHIM, T=1.36SHIM, T=1.36
-
92025D92025-1218 SHIM, T=1.38SHIM, T=1.38
-
92025E92025-1219 SHIM, T=0.10SHIM, T=0.10
-
92025F92025-1220 SHIM, T=0.20SHIM, T=0.20
-
92025G92025-1221 SHIM, T=0.30SHIM, T=0.30
-
92025H92025-1222 SHIM, T=0.50SHIM, T=0.50
-
92025I92025-1223 SHIM, T=0.60SHIM, T=0.60
-
92025J92025-1224 SHIM, T=0.70SHIM, T=0.70
-
92025K92025-1225 SHIM, T=0.80SHIM, T=0.80
-
92025L92025-1226 SHIM, T=0.90SHIM, T=0.90
-
92025M92025-1227 SHIM, T=1.00SHIM, T=1.00
-
92025N92025-1783 SHIM, T=0.15SHIM, T=0.15
-
92025O92025-1784 SHIM, T=0.50SHIM, T=0.50
-
92025P92025-1785 SHIM, T=0.60SHIM, T=0.60
-
92025Q92025-1786 SHIM, T=0.70SHIM, T=0.70
-
92025R92025-1787 SHIM, T=0.80SHIM, T=0.80
-
92025S92025-1788 SHIM, T=0.90SHIM, T=0.90
-
92025T92025-1789 SHIM, T=1.00SHIM, T=1.00
-
92025U92025-1790 SHIM, T=1.20SHIM, T=1.20
-
130130N0812 BOLT-FLANGEDBOLT-FLANGED
-
130A130Y0825 BOLT-FLANGEDBOLT-FLANGED
-
175175G1035 BOLT-STUD-FINE, 10X35BOLT-STUD-FINE, 10X35
-
480480J2600 CIRCLIP-TYPE-C, 26MMCIRCLIP-TYPE-C, 26MM
-
610610A0406 ROLLER, 4X6ROLLER, 4X6
-
9202692026-1085 SPACER, PROPELLER SHAFTSPACER, PROPELLER SHAFT
-
9203392033-1074 RING-SNAP, 52MMRING-SNAP, 52MM
-
9204692046-1168 BEARING-NEEDLE, RNA4904RDBEARING-NEEDLE, RNA4904RD
-
92046A92046-1169 BEARING-NEEDLE, 38NQ5020WDBEARING-NEEDLE, 38NQ5020WD
-
9204992049-1025 SEAL-OIL, S-35477HSSEAL-OIL, S-35477HS
-
92049A92049-1033 SEAL-OIL, SC32487SEAL-OIL, SC32487
-
92049B92049-1280 SEAL-OILSEAL-OIL
-
9205592055-049 RING-O, 31.7X2.4RING-O, 31.7X2.4
-
92055A92055-1038 RING-O, ID=57.6RING-O, ID=57.6
-
92055B92055-1165 RING-O, 154MMRING-O, 154MM
-
92055C92055-1646 RING-ORING-O
-
9206692066-1110 PLUGPLUG
-
9208192081-1183 SPRING, PROPELLER SHAFTSPRING, PROPELLER SHAFT
-
9211692116-1004 BEARING-ROLLER, 4T32005XBEARING-ROLLER, 4T32005X
-
9214592145-1162 SPRING, BOOTSPRING, BOOT
-
9215092150-1806 BOLT, SOCKET, 5X10BOLT, SOCKET, 5X10
-
9218092180-1365 SHIM, T=0.15SHIM, T=0.15
-
92180A92180-1366 SHIM, T=0.50SHIM, T=0.50
-
92180B92180-1367 SHIM, T=0.60SHIM, T=0.60
-
92180C92180-1368 SHIM, T=0.70SHIM, T=0.70
-
92180D92180-1369 SHIM, T=0.80SHIM, T=0.80
-
92180E92180-1370 SHIM, T=0.90SHIM, T=0.90
-
92180F92180-1371 SHIM, T=1.00SHIM, T=1.00
-
92180G92180-1372 SHIM, T=1.20SHIM, T=1.20
