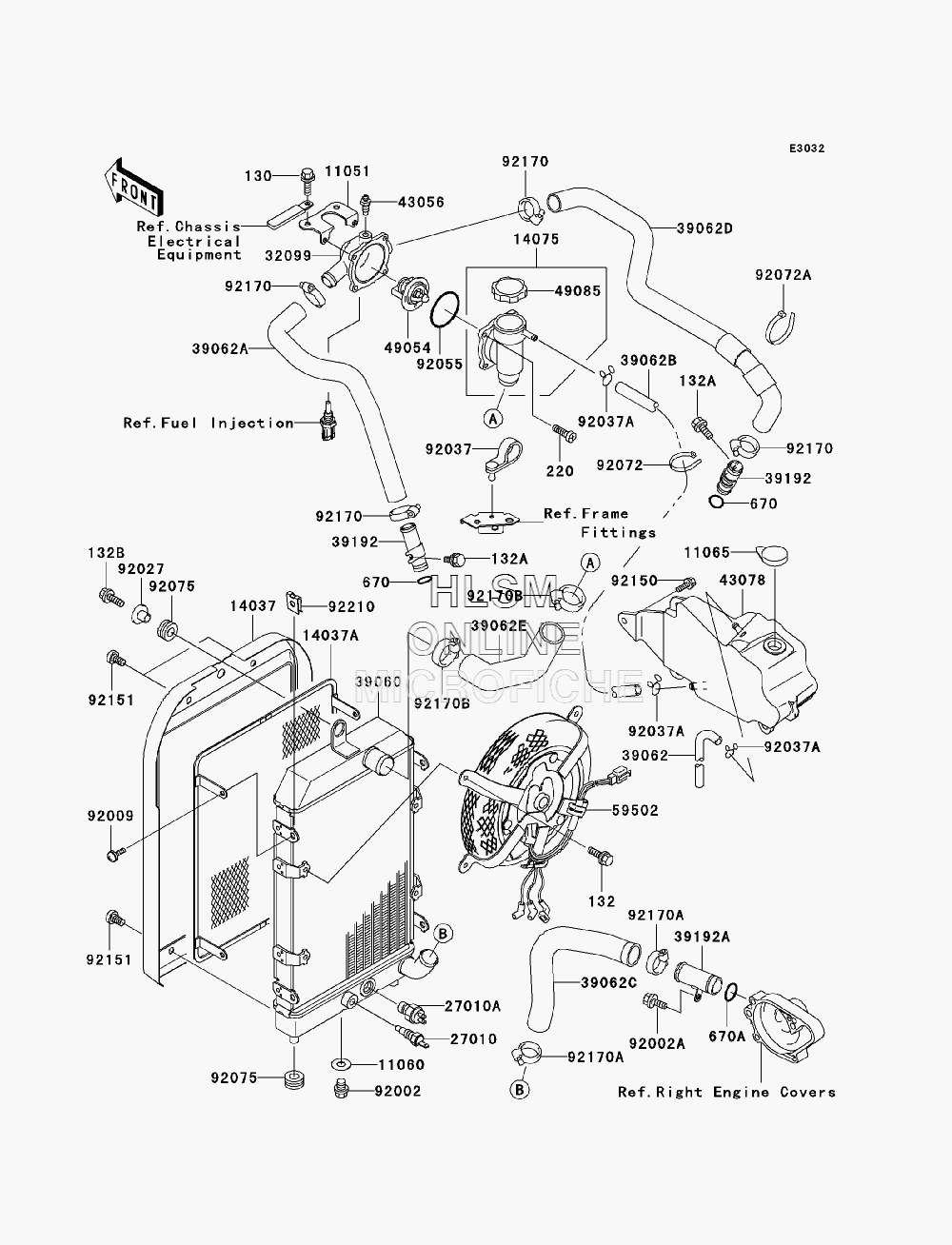

RADIATOR для Kawasaki Vulcan 1500 Mean Streak (VN1500-P1) - 2002 года выпуска
-
№АртикулНазвание
-
130130J0618 BOLT-FLANGED, 6X18BOLT-FLANGED, 6X18
-
1105111051-1535 BRACKET, THERMOSTAT CASEBRACKET, THERMOSTAT CASE
-
1106011060-1767 GASKET, DRAIN PLUGGASKET, DRAIN PLUG
-
1106511065-1093 CAP, COOLANTCAP, COOLANT
-
1403714037-1301 SCREENSCREEN
-
14037A14037-1304 SCREENSCREEN
-
1407514075-1068 CAP-ASSYCAP-ASSY
-
2701027010-1305 SWITCH, WARNINGSWITCH, WARNING
-
27010A27010-1364 SWITCH, FANSWITCH, FAN
-
3209932099-1201 CASE, THERMOSTATCASE, THERMOSTAT
-
3906039060-1178 RADIATORRADIATOR
-
3906239062-1258 HOSE-COOLINGHOSE-COOLING
-
39062A39062-1785 HOSE-COOLINGHOSE-COOLING
-
39062B39062-1796 HOSE-COOLING, THERMO-RESERHOSE-COOLING, THERMO-RESER
-
39062C39062-1850 HOSE-COOLING, RADIATOR-PUMPHOSE-COOLING, RADIATOR-PUMP
-
39062D39062-1864 HOSE-COOLING, HEAD, REAR-THERMOHOSE-COOLING, HEAD, REAR-THERMO
-
39062E39062-1892 HOSE-COOLINGHOSE-COOLING
-
3919239192-1094 PIPE-WATERPIPE-WATER
-
39192A39192-1096 PIPE-WATERPIPE-WATER
-
4305643056-003 BREATHERBREATHER
-
4307843078-1180 RESERVOIRRESERVOIR
-
4905449054-1067 THERMOSTATTHERMOSTAT
-
4908549085-1067 CAP-ASSY-PRESSURECAP-ASSY-PRESSURE
-
5950259502-1141 FAN-ASSYFAN-ASSY
-
9200292002-1311 BOLT, FLANGED, 10X10BOLT, FLANGED, 10X10
-
92002A92002-1569 BOLT, 6X12BOLT, 6X12
-
9200992009-1402 SCREW, 6X10SCREW, 6X10
-
9202792027-1450 COLLAR, L=13.1, (BLACK)COLLAR, L=13.1, (BLACK)
-
9203792037-1163 CLAMP, SPEED, L=58CLAMP, SPEED, L=58
-
92037A92037-147 CLAMP, TUBECLAMP, TUBE
-
9205592055-112 RING-O, 53.5X2.6RING-O, 53.5X2.6
-
9207292072-1237 BAND, L=250BAND, L=250
-
92072A92072-1398 BANDBAND
-
9207592075-1690 DAMPERDAMPER
-
9215092150-1392 BOLT, 6X14BOLT, 6X14
-
9215192151-1809 BOLT, 6X10BOLT, 6X10
-
9217092170-1032 CLAMP, COOLING HOSECLAMP, COOLING HOSE
-
92170A92170-1034 CLAMP, COOLING HOSECLAMP, COOLING HOSE
-
92170B92170-1284 CLAMP, COOLING HOSECLAMP, COOLING HOSE
-
9221092210-1125 NUTNUT
-
132132J0610 BOLT-FLANGED-SMALL, 6X10BOLT-FLANGED-SMALL, 6X10
-
132A132J0612 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132B132J0625 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
220220D0514 SCREW-PAN-CROS, 5X14SCREW-PAN-CROS, 5X14
-
670670B2014 O RING, 14MMO RING, 14MM
-
670A670B2018 O RING, 18MMO RING, 18MM
