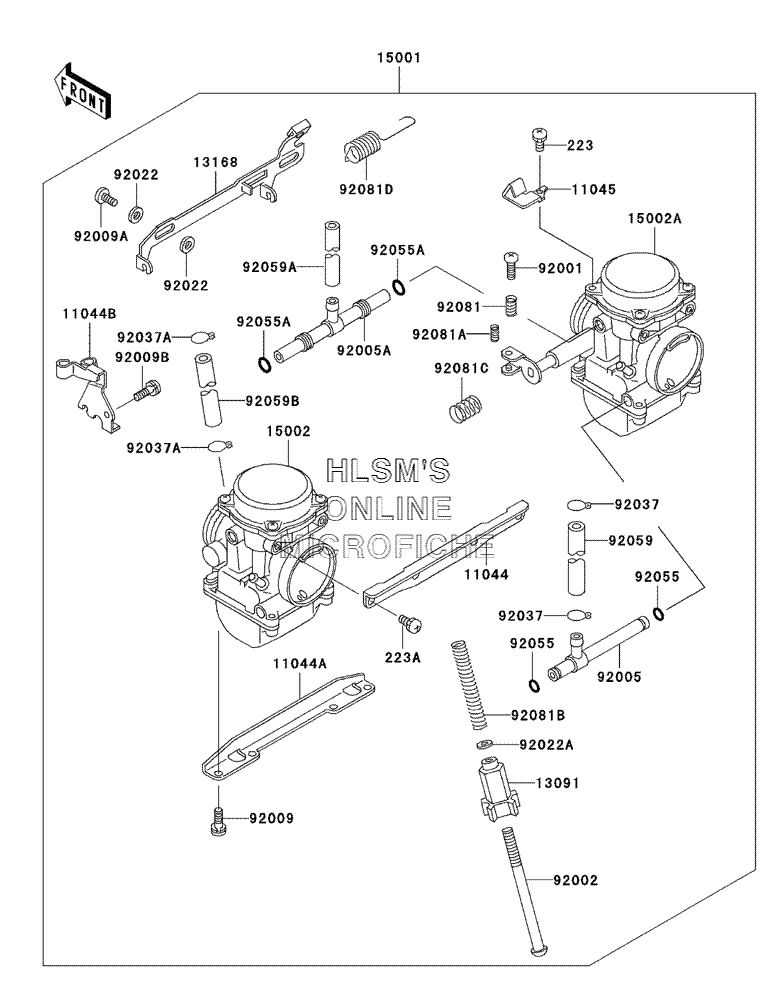

CARBURETOR для Kawasaki NINJA 500R - 2003 года выпуска
-
№АртикулНазвание
-
223223C0420 SCREW, PAN, WS, CROSSCREW, PAN, WS, CROS
-
223A223C0510 SCREW, PAN, WS, CROSSCREW, PAN, WS, CROS
-
1104411044-1313 BRACKET, CARBURETOR STAY, UPPERBRACKET, CARBURETOR STAY, UPPER
-
11044A11044-1314 BRACKET, CARBURETOR STAY, 6MMBRACKET, CARBURETOR STAY, 6MM
-
11044B11044-1546 BRACKET, THROTTLE CABLEBRACKET, THROTTLE CABLE
-
1104511045-1824 BRACKET, STARTER LEVERBRACKET, STARTER LEVER
-
1309113091-1382 HOLDER, THROTTLE STOP SCREWHOLDER, THROTTLE STOP SCREW
-
1316813168-1360 LEVERLEVER
-
1500115001-1334 CARBURETOR, ASSYCARBURETOR, ASSY
-
1500215002-1492 CARBURETOR (LEFT)CARBURETOR (LEFT)
-
15002A15002-1493 CARBURETOR (RIGHT)CARBURETOR (RIGHT)
-
9200192001-1998 BOLT, THROTTLE ADJUSTBOLT, THROTTLE ADJUST
-
9200292002-1552 BOLT, THROTTLE STOP SCREWBOLT, THROTTLE STOP SCREW
-
9200592005-1133 FITTINGFITTING
-
92005A92005-1134 FITTINGFITTING
-
9200992009-1129 SCREW, 6X16SCREW, 6X16
-
92009A92009-1262 SCREWSCREW
-
92009B92009-1365 SCREW, 5X10SCREW, 5X10
-
9202292022-1199 WASHER, 6.1X11X0.8, POLYACETALWASHER, 6.1X11X0.8, POLYACETAL
-
92022A92022-1480 WASHER, PLAIN, STOP SPRINGWASHER, PLAIN, STOP SPRING
-
9203792037-1075 CLAMP, FUEL TUBECLAMP, FUEL TUBE
-
92037A92037-1477 CLAMP, TUBECLAMP, TUBE
-
9205592055-1004 O-RINGO-RING
-
92055A92055-1223 O-RINGO-RING
-
9205992059-1236 TUBE, FUEL, 7.3X12.5X220TUBE, FUEL, 7.3X12.5X220
-
92059A92059-1465 TUBE, 6.5X9.5X500TUBE, 6.5X9.5X500
-
92059B92059-1634 TUBE, 5X9X140TUBE, 5X9X140
-
9208192081-1620 SPRING, THROTTLE ADJUST UPPERSPRING, THROTTLE ADJUST UPPER
-
92081A92081-1621 SPRING, THROTTLE ADJUST LOWERSPRING, THROTTLE ADJUST LOWER
-
92081B92081-1875 SPRING, THROTTLE STOP SCREWSPRING, THROTTLE STOP SCREW
-
92081C92081-1876 SPRINGSPRING
-
92081D92081-1893 SPRING, STARTER LEVERSPRING, STARTER LEVER
