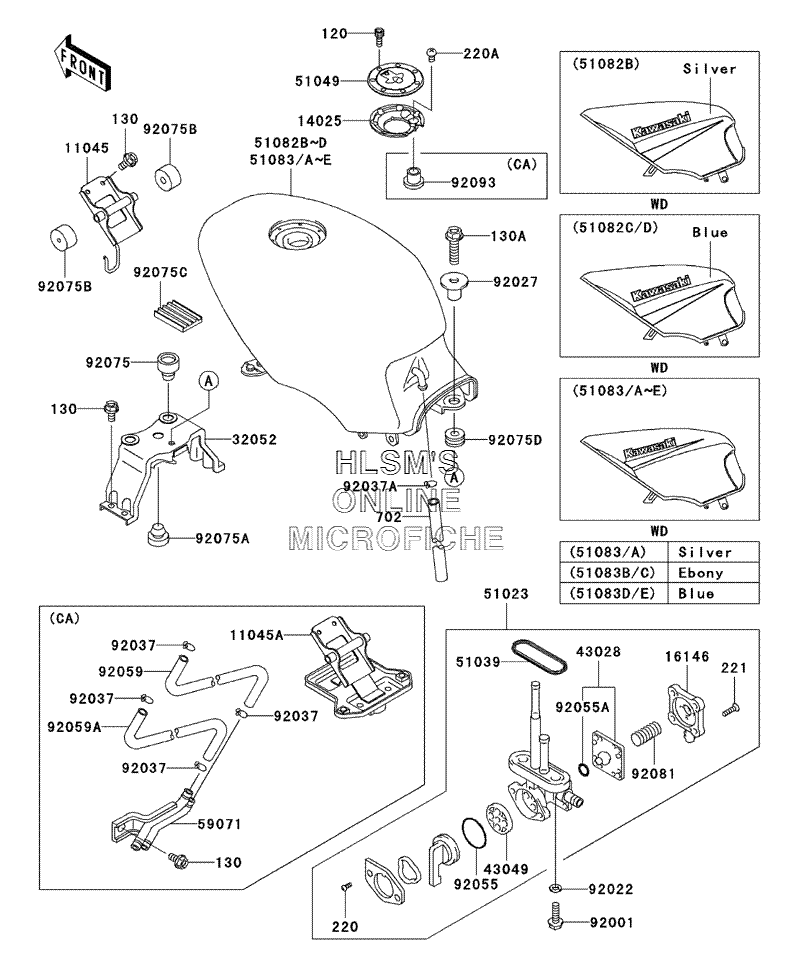

FUEL TANK для Kawasaki NINJA 500R - 2003 года выпуска
-
№АртикулНазвание
-
1104511045-1362 BRACKET, FUEL TANK, FRONT (EXCEPT CALIF.)BRACKET, FUEL TANK, FRONT (EXCEPT CALIF.)
-
11045A11045-1389 BRACKET, FUEL TANK, FRONT (CALIF. ONLY)BRACKET, FUEL TANK, FRONT (CALIF. ONLY)
-
1402514025-1913 COVER, TANK CAPCOVER, TANK CAP
-
1614616146-1010 COVER, ASSY, TAP DIAPHRAGMCOVER, ASSY, TAP DIAPHRAGM
-
3205232052-1394 BRACKET, TANK, FUEL, REARBRACKET, TANK, FUEL, REAR
-
4302843028-1033 DIAPHRAGMDIAPHRAGM
-
4304943049-1103 PACKINGPACKING
-
5102351023-1389 TAP, ASSY, FUELTAP, ASSY, FUEL
-
5103951039-003 RING, TAP FLANGEDRING, TAP FLANGED
-
5104951049-1130 CAP, TANK, FUELCAP, TANK, FUEL
-
51082B51082-5137-F2 TANK, COMP, FUEL (G.SILVER) (CANADA ONLY)TANK, COMP, FUEL (G.SILVER) (CANADA ONLY)
-
51082C51082-5308-C6 TANK, COMP, FUEL (M.N.BLUE) (EXCEPT CALIF.)TANK, COMP, FUEL (M.N.BLUE) (EXCEPT CALIF.)
-
51082D51082-5309-C6 TANK, COMP, FUEL (M.N.BLUE) (CALIF. ONLY)TANK, COMP, FUEL (M.N.BLUE) (CALIF. ONLY)
-
5907159071-1122 JOINT, EVAPO (CALIF. ONLY)JOINT, EVAPO (CALIF. ONLY)
-
9200192001-1091 BOLT, 6X20BOLT, 6X20
-
9202292022-183 WASHER, 6.2X11X1.5WASHER, 6.2X11X1.5
-
9202792027-1780 COLLAR, L=19.3COLLAR, L=19.3
-
9203792037-010 CLAMP, TUBE (CALIF. ONLY)CLAMP, TUBE (CALIF. ONLY)
-
92037A92037-1712 CLAMPCLAMP
-
9205592055-1085 O-RING, TAP LEVERO-RING, TAP LEVER
-
92055A92055-1664 O-RINGO-RING
-
9205992059-1767 TUBE, EVAPO (CALIF. ONLY)TUBE, EVAPO (CALIF. ONLY)
-
92059A92059-1768 TUBE, EVAPO (CALIF. ONLY)TUBE, EVAPO (CALIF. ONLY)
-
9207592075-015 DAMPERDAMPER
-
92075A92075-1045 DAMPERDAMPER
-
92075B92075-1115 DAMPER, FUEL TANK, FRONTDAMPER, FUEL TANK, FRONT
-
92075C92075-1489 DAMPERDAMPER
-
92075D92075-1736 DAMPERDAMPER
-
9208192081-1240 SPRING, TAP DIAPHRAGMSPRING, TAP DIAPHRAGM
-
9209392093-1030 SEAL, FUEL TANK CAP (CALIF. ONLY)SEAL, FUEL TANK CAP (CALIF. ONLY)
-
120120S0512 BOLT, SOCKETBOLT, SOCKET
-
130130B0612 BOLT, FLANGED, 6X12 (EXCEPT CALIF.)BOLT, FLANGED, 6X12 (EXCEPT CALIF.)
-
130130B0612 BOLT, FLANGED, 6X12 (CALIF. ONLY)BOLT, FLANGED, 6X12 (CALIF. ONLY)
-
130A130G0830 BOLT, FLANGED, 8X30BOLT, FLANGED, 8X30
-
220220B0308 SCREW, PAN, CROSSCREW, PAN, CROS
-
220A220F0508 SCREW, PAN, CROSSSCREW, PAN, CROSS
-
221221B0414 SCREW, CSK, CROS, 4X14SCREW, CSK, CROS, 4X14
-
702702A07380 TUBE, RUBBER, 7X10X380TUBE, RUBBER, 7X10X380
