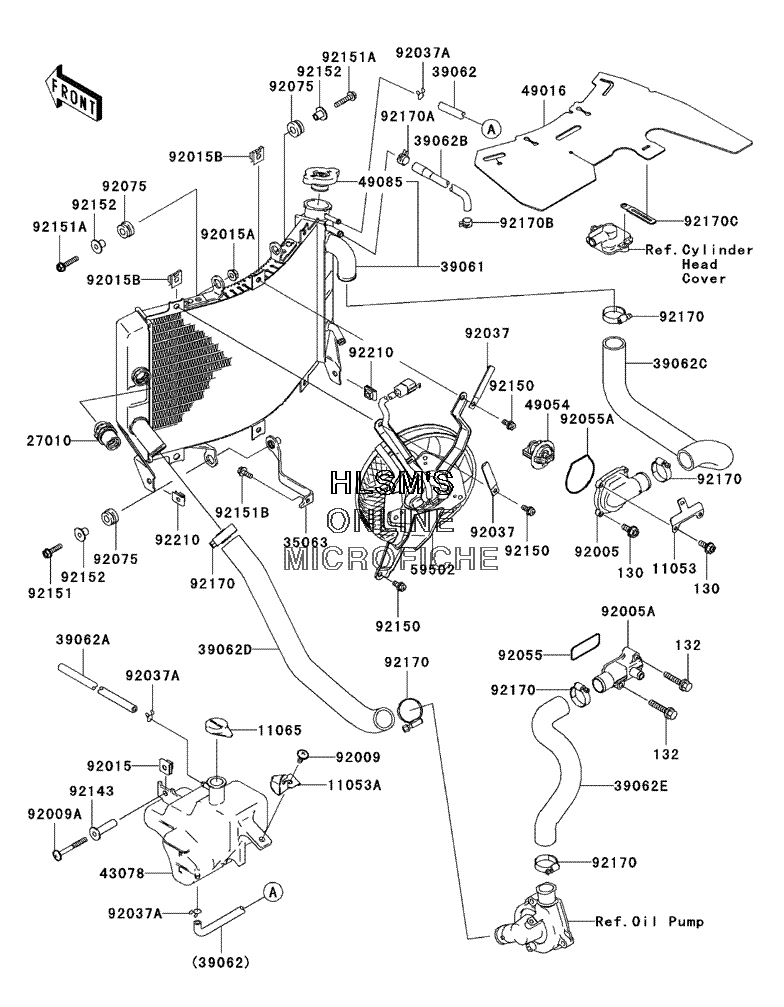

RADIATOR для Kawasaki NINJA ZX-6RR - 2003 года выпуска
-
№АртикулНазвание
-
1105311053-0129 BRACKETBRACKET
-
11053A11053-1231 BRACKETBRACKET
-
1106511065-1093 CAP, COOLANTCAP, COOLANT
-
2701027010-1443 SWITCHSWITCH
-
3506335063-1267 STAYSTAY
-
3906139061-0010 RADIATOR, ASSY.RADIATOR, ASSY.
-
3906239062-0015 HOSE, COOLING, 5.5X10.5X717HOSE, COOLING, 5.5X10.5X717
-
39062A39062-1208 HOSE, COOLINGHOSE, COOLING
-
39062B39062-1742 HOSE, COOLINGHOSE, COOLING
-
39062C39062-1913 HOSE, COOLING, HEAD, RADIATORHOSE, COOLING, HEAD, RADIATOR
-
39062D39062-1932 HOSE, COOLING, RADIATOR, PUMPHOSE, COOLING, RADIATOR, PUMP
-
39062E39062-1933 HOSE, COOLING, PUMP, CYLINDERHOSE, COOLING, PUMP, CYLINDER
-
4307843078-1186 RESERVOIRRESERVOIR
-
4901649016-0002 COVER, SEALCOVER, SEAL
-
4905449054-1067 THERMOSTATTHERMOSTAT
-
4908549085-1066 CAP, ASSY., PRESSURECAP, ASSY., PRESSURE
-
5950259502-0001 FAN, ASSY.FAN, ASSY.
-
9200592005-1275 FITTING, THERMOSTATFITTING, THERMOSTAT
-
92005A92005-1343 FITTING, CYLINDERFITTING, CYLINDER
-
9200992009-1817 SCREW, 6X16SCREW, 6X16
-
92009A92009-1829 SCREW, 6X56SCREW, 6X56
-
9201592015-1094 NUT, 6MMNUT, 6MM
-
92015A92015-1233 NUT, FLANGED, 6MM (BLACK)NUT, FLANGED, 6MM (BLACK)
-
92015B92015-1487 NUTNUT
-
9203792037-1069 CLAMP, L=60CLAMP, L=60
-
92037A92037-147 CLAMP, TUBECLAMP, TUBE
-
9205592055-1402 O-RINGO-RING
-
92055A92055-1699 O-RING, THERMOSTAT CAPO-RING, THERMOSTAT CAP
-
9207592075-1123 DAMPER, RUBBERDAMPER, RUBBER
-
9214392143-1428 COLLARCOLLAR
-
9215092150-1186 BOLT, 6X12BOLT, 6X12
-
9215192151-1225 BOLT, 6X25BOLT, 6X25
-
92151A92151-1228 BOLT, 6X30BOLT, 6X30
-
92151B92151-1774 BOLT, 6X16BOLT, 6X16
-
9215292152-1074 COLLARCOLLAR
-
9217092170-1035 CLAMP, COOLING HOSECLAMP, COOLING HOSE
-
92170A92170-1167 CLAMPCLAMP
-
92170B92170-1493 CLAMPCLAMP
-
92170C92170-1514 CLAMPCLAMP
-
9221092210-0010 NUTNUT
-
130130J0514 BOLT, FLANGEDBOLT, FLANGED
-
132132J0630 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
