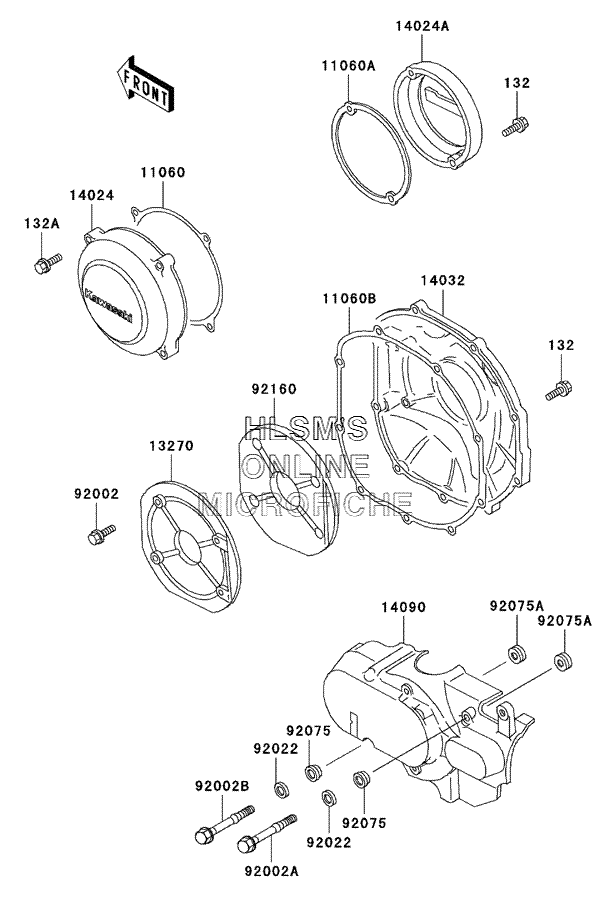

ENGINE COVER для Kawasaki Voyager XII - 2003 года выпуска
-
№АртикулНазвание
-
132132E0625 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132E0630 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
1106011060-1097 GASKET, COVER (LEFT)GASKET, COVER (LEFT)
-
11060A11060-1098 GASKET, PULSING COIL COVERGASKET, PULSING COIL COVER
-
11060B11060-1099 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
1327013270-1081 PLATE, SOUND ARRESTERPLATE, SOUND ARRESTER
-
1402414024-1153 COVER (LEFT)COVER (LEFT)
-
14024A14024-1154 COVER, PULSING COILCOVER, PULSING COIL
-
1403214032-1374 COVER, CLUTCHCOVER, CLUTCH
-
1409014090-1417 COVER, FRONT BEVELCOVER, FRONT BEVEL
-
9200292002-1449 BOLT, 6X10BOLT, 6X10
-
92002A92002-1814 BOLTBOLT
-
92002B92002-1815 BOLTBOLT
-
9202292022-1823 WASHERWASHER
-
9207592075-1855 DAMPERDAMPER
-
92075A92075-1856 DAMPERDAMPER
-
9216092160-1443 DAMPER, SOUND ARRESTERDAMPER, SOUND ARRESTER
