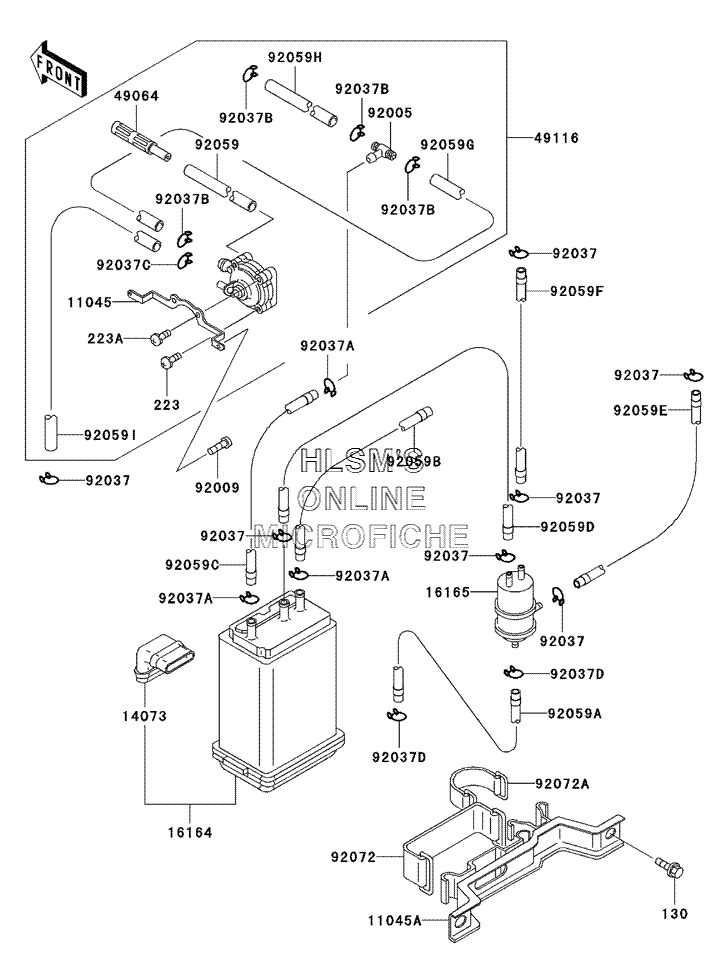

FUEL EVAPORATIVE SYSTEM (CALIF ONLY) для Kawasaki Voyager XII - 2003 года выпуска
-
№АртикулНазвание
-
1104511045-1278 BRACKET, VALVEBRACKET, VALVE
-
11045A11045-1819 BRACKET, CANISTERBRACKET, CANISTER
-
1407314073-1178 DUCT, CANISTERDUCT, CANISTER
-
1616416164-1066 CANISTERCANISTER
-
1616516165-1001 SEPARATORSEPARATOR
-
4906449064-1051 FILTER, AIR, VALVEFILTER, AIR, VALVE
-
4911649116-1066 VALVE, ASSYVALVE, ASSY
-
9200592005-1119 FITTING, T, TYPEFITTING, T, TYPE
-
9200992009-1264 SCREW, TAPPING, 5X16SCREW, TAPPING, 5X16
-
9203792037-010 CLAMP, TUBECLAMP, TUBE
-
92037A92037-1104 CLAMP, HOSECLAMP, HOSE
-
92037B92037-1194 CLAMP, TUBECLAMP, TUBE
-
92037C92037-1396 CLAMP, TUBECLAMP, TUBE
-
92037D92037-1712 CLAMPCLAMP
-
9205992059-1635 TUBE, 7X11X240TUBE, 7X11X240
-
92059A92059-1678 TUBE, 4X9X730 (WHITE)TUBE, 4X9X730 (WHITE)
-
92059B92059-1679 TUBE, 7X12X760 (GREEN)TUBE, 7X12X760 (GREEN)
-
92059C92059-1680 TUBE, 7X12X350 (YELLOW)TUBE, 7X12X350 (YELLOW)
-
92059D92059-1681 TUBE, 5X8X140 (BLUE)TUBE, 5X8X140 (BLUE)
-
92059E92059-1682 TUBE, 5X8X540 (RED)TUBE, 5X8X540 (RED)
-
92059F92059-1683 TUBE, 5X8X430 (BLUE)TUBE, 5X8X430 (BLUE)
-
92059G92059-1737 TUBE, 7X11X180TUBE, 7X11X180
-
130130B0610 BOLT, FLANGED, 6X10BOLT, FLANGED, 6X10
-
223223C0416 SCREW, PAN, WS, CROSSCREW, PAN, WS, CROS
-
223A223C0418 SCREW, PAN, WS, CROSSCREW, PAN, WS, CROS
-
92059H92059-1738 TUBE, 7X11X45TUBE, 7X11X45
-
92059I92059-1739 TUBE, 3.5X7.5X300TUBE, 3.5X7.5X300
-
9207292072-006 BAND, L=142.1BAND, L=142.1
-
92072A92072-1419 BAND, L=50BAND, L=50
