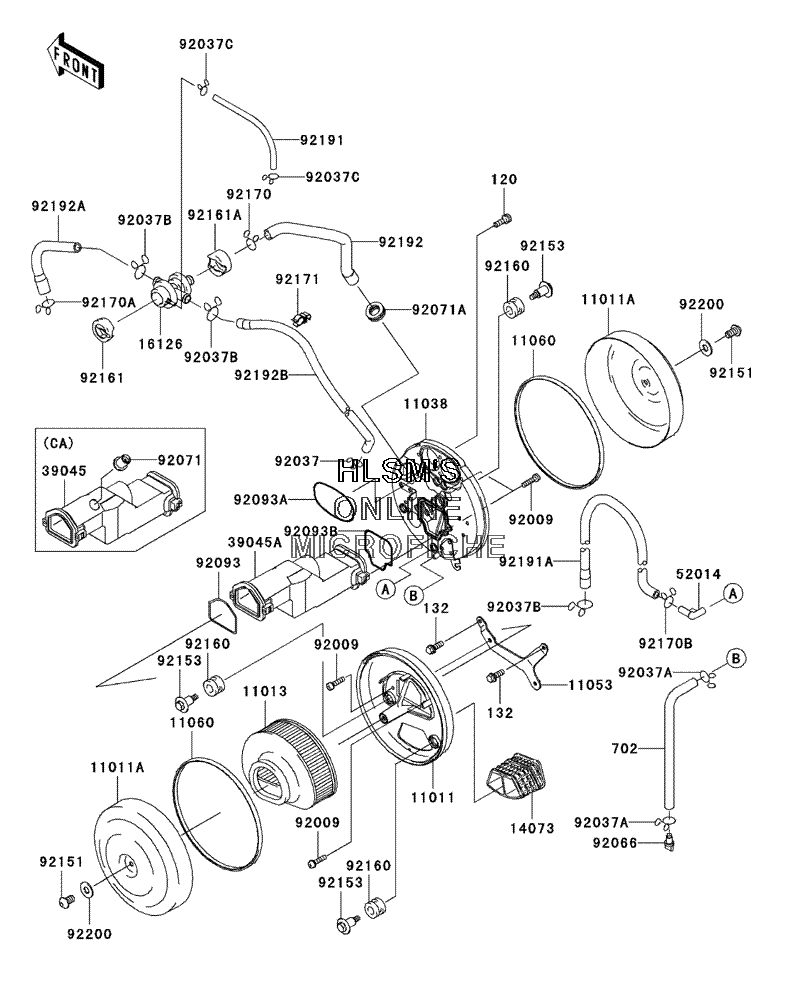

AIR CLEANER для Kawasaki Vulcan 1600 Classic - 2003 года выпуска
-
№АртикулНазвание
-
1101111011-1672 CASE, AIR FILTER (LEFT)CASE, AIR FILTER (LEFT)
-
11011A11011-1673 CASE, AIR FILTER, COVERCASE, AIR FILTER, COVER
-
1101311013-1305 ELEMENT, AIR FILTERELEMENT, AIR FILTER
-
1103811038-0005 CASE, ASSY., AIR FILTER (RIGHT)CASE, ASSY., AIR FILTER (RIGHT)
-
1105311053-1208 BRACKET, AIR FILTER (LEFT)BRACKET, AIR FILTER (LEFT)
-
1106011060-1968 GASKET, AIR FILTER CASEGASKET, AIR FILTER CASE
-
1407314073-1863 DUCT, INTAKEDUCT, INTAKE
-
1612616126-0005 VALVE, AIR SWITCHVALVE, AIR SWITCH
-
3904539045-0001 DUCT, ASSY., JOINT (CALIF. ONLY)DUCT, ASSY., JOINT (CALIF. ONLY)
-
39045A39045-0003 DUCT, ASSY., CENTER (EXCEPT CALIF.)DUCT, ASSY., CENTER (EXCEPT CALIF.)
-
5201452014-1083 ELBOWELBOW
-
9200992009-1905 SCREW, PAN, WP, CROS, M5X20SCREW, PAN, WP, CROS, M5X20
-
9203792037-1468 CLAMPCLAMP
-
92037A92037-147 CLAMP, TUBECLAMP, TUBE
-
92037B92037-1593 CLAMPCLAMP
-
92037C92037-1712 CLAMPCLAMP
-
9206692066-1211 PLUG, DRAINPLUG, DRAIN
-
9207192071-0003 GROMMET (CALIF. ONLY)GROMMET (CALIF. ONLY)
-
92071A92071-1028 GROMMET, AIR FILTERGROMMET, AIR FILTER
-
9209392093-1459 SEAL, DUCT (LEFT)SEAL, DUCT (LEFT)
-
92093A92093-1485 SEALSEAL
-
92093B92093-1491 SEAL, DUCT (RIGHT)SEAL, DUCT (RIGHT)
-
9215192151-1438 BOLT, 8X14BOLT, 8X14
-
9215392153-0498 BOLT, M6X14X9.5BOLT, M6X14X9.5
-
9216092160-1594 DAMPERDAMPER
-
9216192161-0044 DAMPER, OUTERSIDEDAMPER, OUTERSIDE
-
92161A92161-0045 DAMPER, INNERSIDEDAMPER, INNERSIDE
-
9217092170-1017 CLAMPCLAMP
-
92170A92170-1445 CLAMP, TUBECLAMP, TUBE
-
92170B92170-1695 CLAMPCLAMP
-
9217192171-0131 CLAMPCLAMP
-
9219192191-0033 TUBE, 4X9X230TUBE, 4X9X230
-
92191A92191-1820 TUBE, BREATHERTUBE, BREATHER
-
9219292192-0011 TUBE, AIR SWITCH, FILTER CASETUBE, AIR SWITCH, FILTER CASE
-
92192A92192-0025 TUBE, FRONT HEAD, AIR SWITCHTUBE, FRONT HEAD, AIR SWITCH
-
92192B92192-0026 TUBE, AIR SWITCH, REAR HEADTUBE, AIR SWITCH, REAR HEAD
-
9220092200-1463 WASHER, 8.5X20X1.6WASHER, 8.5X20X1.6
-
120120S0616 BOLT, SOCKET, M6X16BOLT, SOCKET, M6X16
-
132132J0616 BOLT, FLANGED, SMALL, M6X16BOLT, FLANGED, SMALL, M6X16
-
702702A07230 TUBE, RUBBER, 7X10X230TUBE, RUBBER, 7X10X230
